EVIQO NACS 48A EV Charger for Tesla: Engineer’s Review, Price & Install Guide
Affiliate disclosure: As an Amazon Associate I earn from qualifying purchases. If you buy through my links, I may earn a small commission at no extra cost to you. Read my affiliate disclosure.
The EVIQO NACS 48A EV charger for Tesla is a hardwired Level 2 home charger with a native Tesla connector, so it plugs straight into your car with no adapter and delivers up to 11.5 kW. I’m an electrical engineer, and when readers ask whether a value-priced brand deserves a spot on their garage wall, I check the things that decide safety and performance: circuit sizing, wire gauge, certifications and connector type.
Below you’ll find the specs, price, installation steps and a straight answer to the question most Tesla owners ask first: is it safe to charge a Tesla at 48A?
How I reviewed it: this is a specification and code review. I worked from EVIQO’s published specs and installation manual and NEC requirements.
- WORKS WITH EVERY TESLA + OTHER EVs: Built-in Tesla-style plug (NACS standard) connects directly to Tesla Model S, 3, X a…
- HARDWIRED – PROFESSIONAL INSTALL: This Level 2 charger is hardwired (not plug-in), so a licensed electrician installs it…
- CONTROL FROM YOUR PHONE: A stronger built-in antenna keeps the charger online even in a garage or basement. Use the free…
Table of Contents
Table of Contents
Quick Verdict: Is the EVIQO NACS 48A EV Charger for Tesla Worth Buying?
Yes, if you want the fastest home charge a Tesla can use at a fair price. It gives you 48A, a 25 ft cable, Wi-Fi scheduling, an IP66 enclosure and a 3-year warranty. The trade-offs are that EVIQO is a newer brand than Tesla or ChargePoint, it must be hardwired by an electrician, and its app is separate from the Tesla app.
For a wider comparison of home chargers, see my best Level 2 EV charger guide and the full EV charger reviews library.

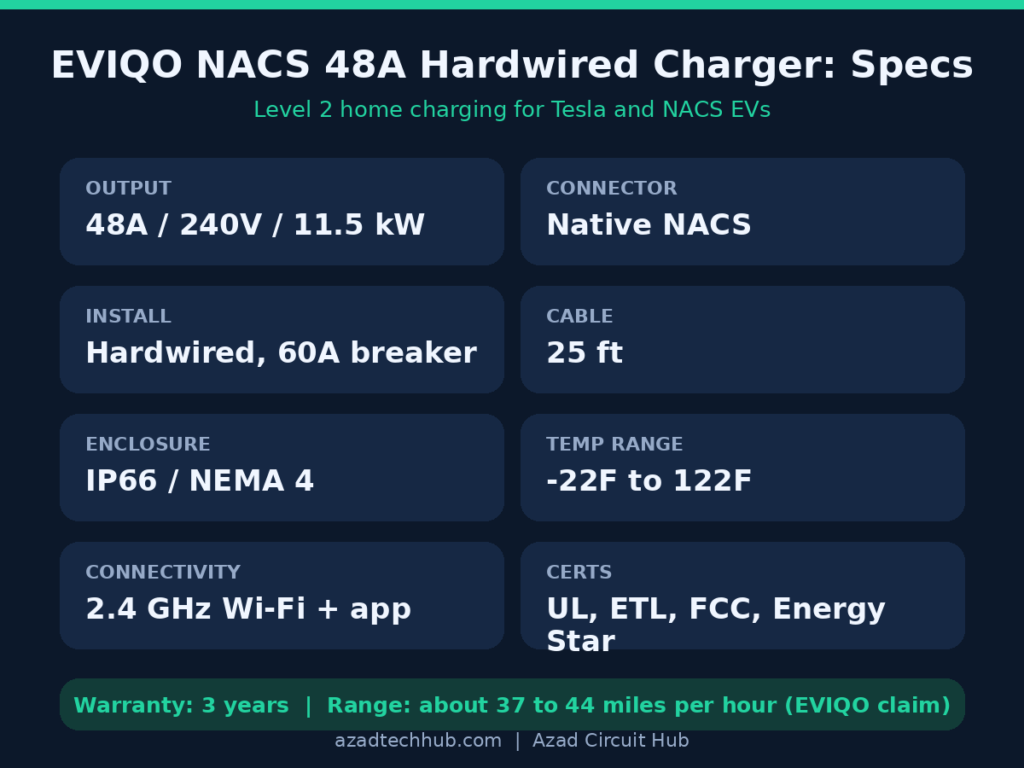

EVIQO NACS 48A EV Charger for Tesla: Specs at a Glance
| Spec | EVIQO NACS 48A hardwired |
|---|---|
| Output | 48A, 240V, 11.5 kW (50A max setting via DIP switch) |
| Connector | Native NACS (works with every Tesla) |
| Install type | Hardwired, 60A breaker |
| Cable | 25 ft |
| Enclosure | IP66 / NEMA 4, indoor or outdoor |
| Operating range | -22°F to 122°F |
| Connectivity | 2.4 GHz Wi-Fi, iOS and Android app, OTA updates |
| Certification | UL compliant, ETL listed, FCC, Energy Star |
| Warranty | 3 years |
EVIQO quotes roughly 37 to 44 miles of range per hour at 48A for the EVIQO NACS 48A EV charger for Tesla. Your real number depends on the car, because the vehicle’s onboard charger sets the ceiling. If you’re weighing the 40A plug-in version instead, my hardwired vs plug-in EV charger guide explains the difference, and my full EVIQO Level 2 review covers the J1772 models.
Is It Safe to Charge a Tesla at 48A?

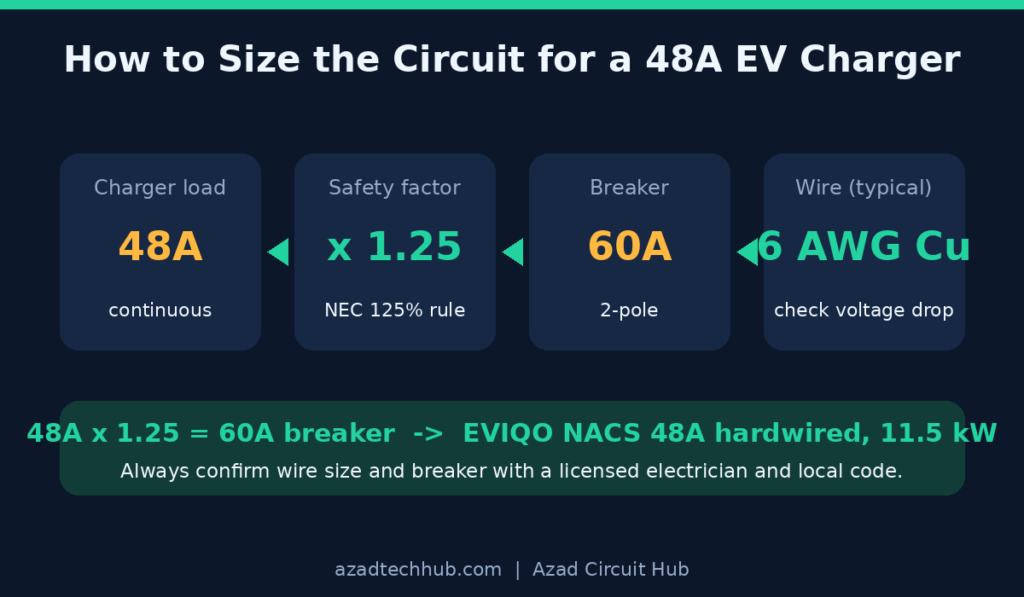

Yes, when the circuit is sized correctly. Tesla’s own Wall Connector is built around the same 48A on a 60A circuit, so running the EVIQO NACS 48A EV charger for Tesla at its full rating isn’t an unusual load for a Tesla. Three engineering points keep it safe:
- Continuous load rule. EV charging counts as a continuous load, so the breaker must be at least 125% of the charger’s current. 48A × 1.25 = 60A.
- Wire gauge. A 60A circuit is commonly run with 6 AWG copper, but long runs need a voltage-drop check. Use my EV charger cable size calculator before you buy wire.
- Your car limits the draw. Some Tesla trims have a lower onboard charger limit, so the car simply pulls what it can accept. A 48A charger will never force more current into it.
Also confirm that your panel has spare capacity. If it doesn’t, read my 48 amp EV charger guide for load-management options.
Are Tesla Charging Stations NACS Compatible?
Yes. NACS, the North American Charging Standard, is Tesla’s own connector, so Tesla Superchargers, Destination chargers and Wall Connectors all use it, and it is now standardized as SAE J3400. That is why the EVIQO NACS 48A EV charger for Tesla fits your car with no adapter.
If you ever use a public J1772 station, you’ll need a J1772 adapter for your Tesla. Newer Ford, GM, Hyundai, Kia and Rivian models also ship with NACS ports, which means this charger keeps working if your next EV isn’t a Tesla. For connector basics, see EV charging levels and connector types explained.
EVIQO NACS 48A EV Charger for Tesla Price and Where to Buy
Prices move often. At my last check, EVIQO’s own store listed the 48A hardwired NACS model at $480.99, marked down from $599. Retail prices elsewhere differ, so check the live Amazon listing before you decide.
A quick cost reality check from my side: the charger is only part of the bill. Budget for an electrician, a 60A breaker and a dedicated run of wire. I explain typical costs and permit steps in my guide on how to install a Level 2 EV charger at home. The federal credit rules have changed, so check my update on whether the federal EV charger tax credit is still available before counting on it.

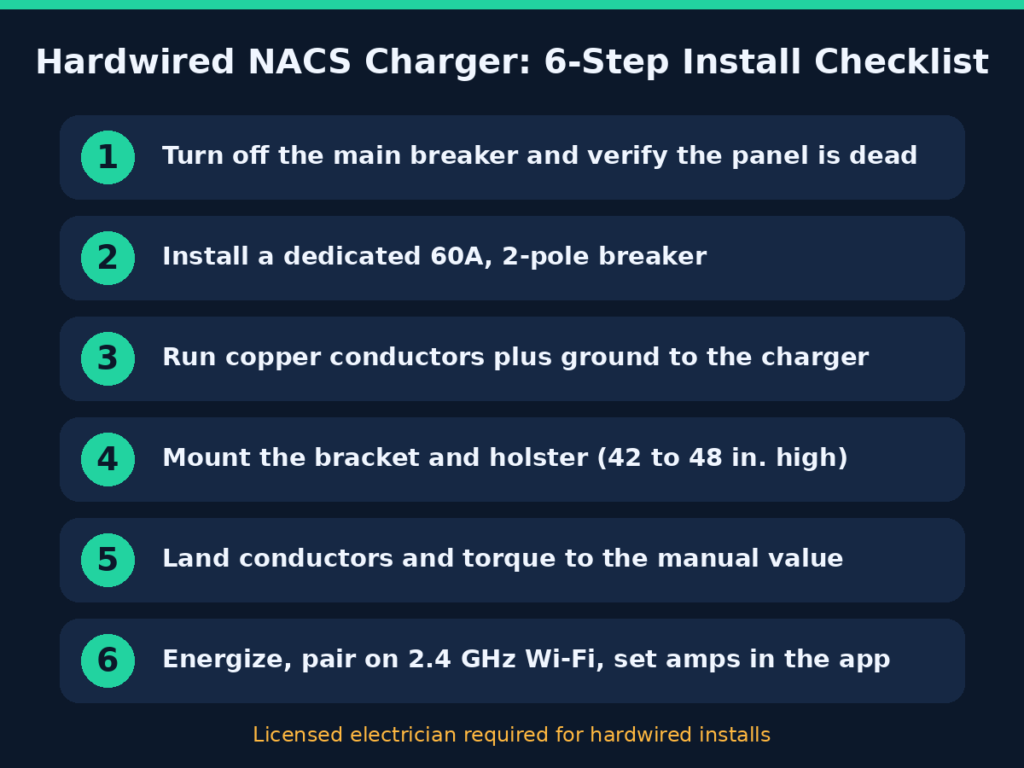

EVIQO NACS 48A EV Charger for Tesla: Manual and Installation Instructions
EVIQO publishes an installation manual with the full wiring diagram, and a licensed electrician must hardwire this model. Here is the typical sequence for installing the EVIQO NACS 48A EV charger for Tesla, so you can talk to your installer with confidence:
- Turn off the main breaker and verify the panel is de-energized with a tester.
- Install a dedicated 60A, 2-pole breaker.
- Run copper conductors of the correct gauge, plus a ground, to the charger location.
- Mount the wall bracket and holster, with the holster about 42 to 48 inches above the floor.
- Land the line and ground conductors at the charger terminals and torque them to the manual’s value.
- Energize, pair the charger on a 2.4 GHz Wi-Fi network, and set the amperage in the app.
A torque screwdriver and a quality non-contact voltage tester are worth owning for this job. [AFFILIATE CARD 3: non-contact voltage tester or torque screwdriver from my voltage tester reviews, button “View on Amazon”]

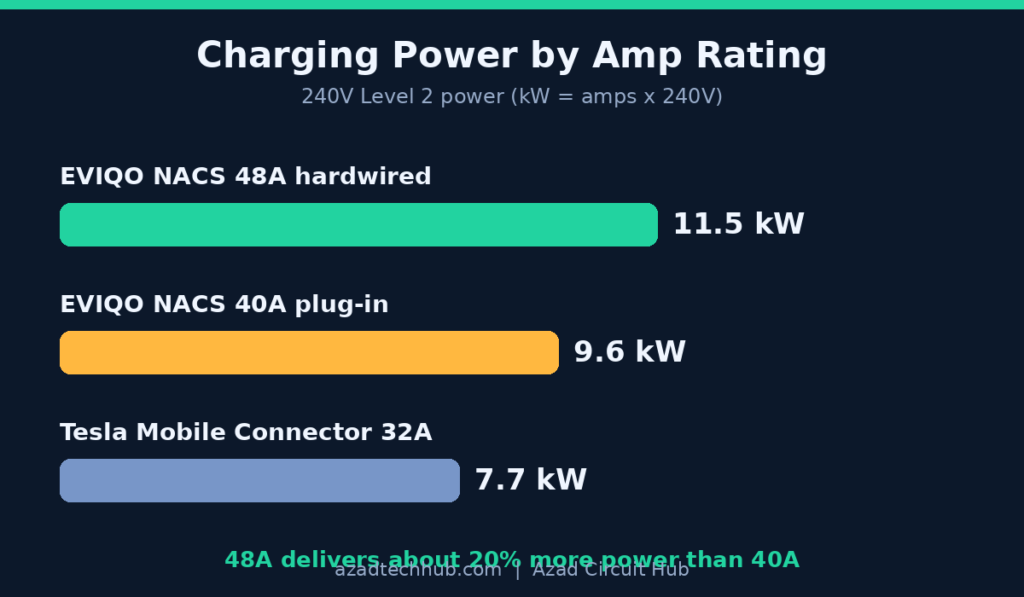

Hardwired 48A vs Plug-In 40A: Which Should You Pick?
Hardwired 48A charging with the EVIQO NACS 48A EV charger for Tesla is about 20% faster than the 40A plug-in and removes the outlet as a failure point. The 40A NEMA 14-50 version is easier to install and can move with you if you rent. If your daily driving is under about 150 miles, the 40A version is usually enough; if you have two EVs or a long commute, choose 48A.
Pros and Cons
Pros of the EVIQO NACS 48A EV charger for Tesla: native NACS fit, 48A speed, 25 ft cable, IP66 outdoor rating, smart scheduling, OTA firmware updates, 3-year warranty.
Cons: newer brand, hardwiring required, 2.4 GHz Wi-Fi only, no Powershare or vehicle-to-load support.
Best EV Charger for Tesla: Alternatives to Compare
If you’re still deciding whether the EVIQO NACS 48A EV charger for Tesla is the best EV charger for Tesla owners, compare these alternatives from my reviews:
- Tesla Wall Connector review: the factory option.
- Wallbox Pulsar Plus NACS review: compact, smart, 48A.
- Emporia Classic vs Emporia Pro: best for energy monitoring.
- Best EV charger for Tesla Model 3 and Model Y: my full shortlist.
- EVIQO vs ChargePoint Home Flex vs Emporia: brand-level comparison.
For outside of the garage, see the best outdoor EV chargers.
FAQ
Which EV chargers are compatible with Tesla?
Any charger with a NACS connector plugs straight in. Chargers with a J1772 connector work with a J1772 adapter. The EVIQO NACS 48A EV charger for Tesla needs no adapter. See the best J1772 EV chargers if you prefer that route.
What is the best EV charger for Tesla?
It depends on your priorities: Tesla’s Wall Connector for simplicity, Emporia for energy monitoring, and EVIQO for 48A speed at a lower price. My Tesla shortlist above compares them.
Does the EVIQO Level 2 charger have a 48 amp option?
Yes. The hardwired version delivers 48A (11.5 kW), and the plug-in version is limited to 40A (9.6 kW).
Can the EVIQO Level 2 charger be hardwired?
Yes, the 48A model is hardwired by design and needs a 60A circuit and a licensed electrician.
Where can I find the EVIQO Level 2 charger manual?
EVIQO hosts the manual on its installation manual page.
Is the EVIQO NACS charger on Amazon?
EVIQO has listings on Amazon. Check the live listing for today’s price and the exact connector and amperage before you order.
Final Verdict
The EVIQO NACS 48A EV charger for Tesla is a strong pick if you want maximum home charging speed without paying Tesla-level prices. Size the circuit at 60A, hire a licensed installer, and you get a safe, fast, weatherproof setup.
