ESP12F Pinout: An Important Guide

| |

The ESP12F module, based on the ESP8266 chip, is one of the most popular Wi-Fi-enabled microcontroller modules in IoT development. Known for its compact size, high performance, and affordability, the ESP12F is an upgraded version of the ESP12E, offering improved RF performance and reliability. In this article, we’ll dive into the ESP12F pinout, providing a detailed technical breakdown of each pin, its functionality, and how to use it in your projects.

Whether you’re a beginner or an experienced IoT enthusiast, understanding the ESP12F pinout is essential to leveraging the full potential of this module.

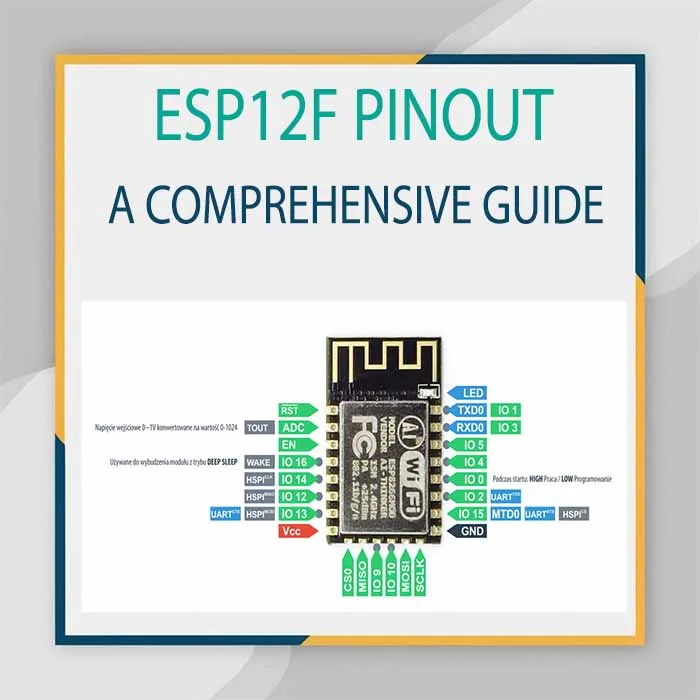

ESP12F Pinout: A Detailed Guide
ESP12F Pinout: A Detailed Guide
Table of Contents

What is ESP12F?

The ESP12F is a Wi-Fi module powered by the ESP8266 chip, which features a 32-bit Tensilica Xtensa LX106 processor. It supports multiple GPIO pins, UART, SPI, I2C, and PWM, making it a versatile choice for IoT applications like home automation, wireless monitoring, and smart devices. The ESP12F pinout enhances the usability of the ESP8266 chip by providing easy access to its features.

For more information about ESP8266 modules, check out related guides like ESP8266 Pin Diagram and ESP8266 GPIO Pins.

ESP12F Pinout Overview

The ESP12F module consists of 22 pins, including power pins, communication interfaces, and GPIO pins. Below is a high-level breakdown of the pinout and its functions:

Key Features of the ESP12F Pinout

  • 22 accessible pins
  • 16 GPIOs (General Purpose Input/Output)
  • Support for UART, SPI, and I2C interfaces
  • Integrated ADC (Analog to Digital Converter)
  • Enhanced RF performance compared to ESP12E

Below is the ESP12F pinout diagram and the detailed functionality of each pin.

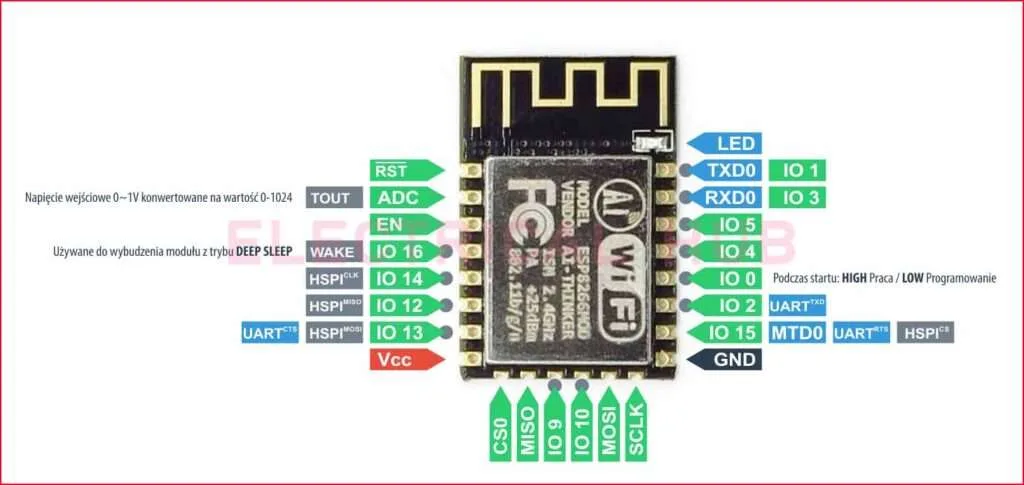

ESP12F pinout diagram
ESP12F pinout diagram

ESP12F Pinout Diagram

Before we dive into the details of each pin, it’s crucial to familiarize yourself with the ESP12F pinout diagram. The pin configuration allows developers to connect various peripherals and sensors effectively.

ESP12F Pinout Pin Description

Here’s a detailed explanation of the ESP12F pinout:

VCC (Power Supply Pin)

Provides power to the ESP12F module.

Voltage range: 3.0V–3.6V (typically 3.3V).

GND (Ground)

Connects the module to the system ground.

Must be connected to the ground rail of your circuit.

EN (Enable)

Used to enable or disable the chip.

Connect to VCC through a pull-up resistor to enable the module.

GPIO Pins

  • The ESP12F has 16 GPIO pins (GPIO0 to GPIO16), which are highly versatile.Functions include digital I/O, PWM, UART, I2C, and SPI.
Here’s a quick overview of the GPIO pins:
  • GPIO0: Can be used for boot mode selection or as a general-purpose pin.

  • GPIO2: Used during the boot process and for general-purpose I/O.

  • GPIO15: Connect to GND during boot, also serves as a general-purpose pin.

  • GPIO16: Commonly used for deep-sleep wake-up functionality.
For a more comprehensive understanding of GPIO capabilities, refer to our guide on ESP8266 GPIO Pins.

ADC (Analog to Digital Converter)

Pin: ADC0

  • Converts analog input (0–1V) to a digital signal.
  • Ideal for reading sensors like temperature, light, or potentiometers.

UART Pins

  • RX (GPIO3): Serial data input.TX (GPIO1): Serial data output.Used for programming and communication with other devices.
If you’re working with Arduino, don’t forget to explore our guide on ESP8266 Arduino for UART-based programming.

SPI Pins

Supports Serial Peripheral Interface (SPI) for high-speed communication.

Commonly used pins: MISO (GPIO12), MOSI (GPIO13), SCK (GPIO14), CS (GPIO15).

I2C Pins

  • The I2C protocol is implemented via software.Default pins: SDA (GPIO4), SCL (GPIO5).
For more details on communication protocols, explore our articles like ESP8266 Pinout and ESP8266MOD.

ESP12F Pinout Connections

Here’s how to connect your ESP12F module in various scenarios:

Power Supply

  • Provide a regulated 3.3V to the VCC pin.
  • Use a capacitor (e.g., 10uF) across VCC and GND for stable operation.

Reset and Enable

  • Connect the EN pin to VCC via a pull-up resistor.
  • Add a push-button to the RST pin for manual resetting.

Programming Mode

  • Pull GPIO0 LOW during boot to enable flashing mode.
  • Ensure proper connections with an external USB-to-UART converter.

Deep Sleep Mode

  • Connect GPIO16 to the RST pin to enable wake-up from deep sleep.

ESP12F Pinout Applications

The versatility of the ESP12F module makes it suitable for a wide range of IoT projects:

Home Automation

Control lights, fans, and appliances using Wi-Fi.

Wireless Monitoring

Monitor environmental parameters like temperature and humidity.

Smart Devices

To learn more about development boards like NodeMCU that simplify ESP12F usage, refer to our article on NodeMCU ESP8266.

Tips for Working with the ESP12F Pinout

  1. Power Stability
    • Use a stable 3.3V regulator, as fluctuations can cause unexpected resets.
  2. Breadboard Use
    • Use an adapter board for easy connection to a breadboard.
  3. GPIO Limitations
    • Avoid using GPIO6 to GPIO11 for general-purpose tasks, as they are reserved for flash memory.
  4. Proper Pull-Up/Pull-Down Resistors
    • Use appropriate resistors on GPIO pins to ensure proper operation during boot.

Frequently Asked Questions (FAQs)

1. What is the maximum current consumption of the ESP12F module?

The ESP12F can draw up to 170mA during transmission. Ensure your power source can handle this.

2. Can I use the ESP12F with Arduino IDE?

Yes, the ESP12F is fully compatible with Arduino IDE. Check out our guide on ESP8266 Arduino for step-by-step instructions.

3. How do I flash firmware to the ESP12F?

You can flash firmware using a USB-to-UART converter. Pull GPIO0 LOW during boot to enter flashing mode.

Conclusion

The ESP12F pinout is the backbone of this powerful Wi-Fi module, offering a range of functionalities that cater to diverse IoT applications. By understanding the pins and their configurations, you can unlock the full potential of the ESP12F and build efficient, reliable projects.
