Busbar Current Carrying Capacity Calculator
Selecting the correct busbar size is one of the most important steps in electrical design. A small mistake can lead to overheating, voltage drop, insulation failure, or even fire hazards. This is why using a Busbar Current Carrying Capacity Calculator helps engineers, technicians, and electrical contractors make accurate decisions before installation.
A busbar is a metallic strip or bar, usually made of copper or aluminum, used to distribute electrical power in panels, switchgear, substations, and industrial systems. Its current carrying capacity depends on several factors such as material type, ambient temperature, installation method, and permissible temperature rise.
Table of Contents
Table of Contents
A Busbar Current Carrying Capacity Calculator simplifies these calculations and provides fast results based on standard formulas and practical design values.
Busbar Current Carrying Capacity Calculator
Busbar Current Carrying Capacity Calculator

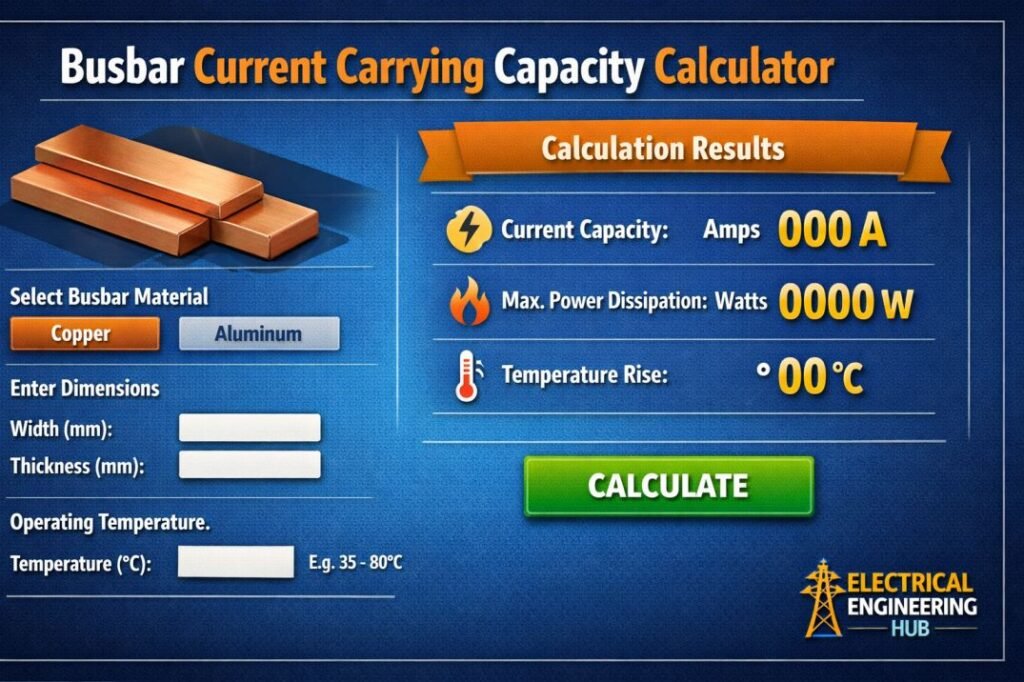

Estimate continuous current rating of rectangular copper or aluminum busbars under defined service conditions
Busbar Configuration
Results
How To Use This Calculator
- Select the conductor material, either copper or aluminum, based on the busbar installed or proposed.
- Enter the bar width and thickness in millimeters for a single busbar strip.
- Select how many parallel bars are used per phase, since multiple bars are common in high current switchgear and bus ducts.
- Choose whether the bars are mounted flat or on edge, as orientation affects natural heat dissipation.
- Select the surface finish, since tinned and painted surfaces dissipate heat differently than bare metal.
- Choose the permitted temperature rise above ambient, as specified by the switchgear design or applicable standard.
- Enter the actual or expected ambient temperature at the installation site.
- Select whether the busbar is installed indoors in an enclosure or outdoors with open ventilation.
- Click Calculate to view the estimated continuous current capacity along with supporting cross sectional data.
Technical Notes
- Current carrying capacity of a busbar depends on its cross sectional area, conductor material, surface finish, mounting orientation, number of parallel bars, and the temperature rise the design permits above ambient conditions.
- Copper has a higher current carrying capacity than aluminum for the same cross section, but aluminum is often selected for weight and cost advantages in larger installations.
- When multiple bars are used per phase, the total current capacity does not increase in direct proportion to the added cross sectional area, because the inner faces of adjacent bars have reduced exposure to surrounding air and therefore dissipate less heat.
- Bars mounted on edge generally dissipate heat more effectively than bars mounted flat, since the orientation improves natural air circulation across the conductor surface.
- A higher permitted temperature rise allows a higher current rating, but it also brings the conductor closer to the safe thermal limit of nearby insulation, joints, and connected equipment.
- Painted or tinned finishes typically improve heat dissipation through radiation compared with bare bright metal, which can allow a marginally higher current rating for the same temperature rise.
- Outdoor or open ventilated installations generally support higher current ratings than enclosed indoor busbar chambers, due to improved natural convection and air movement.
- This calculator provides an engineering estimate for preliminary sizing and comparison purposes. Final busbar selection for switchgear, bus ducts, or panels should be verified against the relevant national or international standard and confirmed through manufacturer test data or a qualified design review.
Find more Electrical Engineering Tools for easy electrical calculations and estimations.
What is a Busbar Current Carrying Capacity Calculator?
A Busbar Current Carrying Capacity Calculator is an electrical tool designed to estimate how much current a busbar can safely carry without exceeding its temperature limit.
It helps in:
- Determining the suitable busbar dimensions
- Preventing thermal overload
- Improving system safety
- Reducing energy losses
- Ensuring compliance with IEC standards
In electrical systems, proper busbar sizing directly affects reliability and efficiency.
Why Busbar Current Carrying Capacity Matters
Busbars are the backbone of power distribution systems. If they are undersized, they can overheat quickly. If oversized, project costs increase unnecessarily.
Here are the main reasons why busbar ampacity matters:
| Factor | Impact |
|---|---|
| Heat generation | Higher current produces more heat |
| Voltage drop | Larger busbars reduce losses |
| Safety | Prevents insulation damage |
| Efficiency | Improves power transfer |
| Lifespan | Reduces thermal stress |
A Busbar Current Carrying Capacity Calculator ensures the balance between safety and cost.
Follow our guide on Bus Bar Current Rating Calculation
Factors Affecting Busbar Current Carrying Capacity
Busbar current capacity is not fixed. It changes based on several operating conditions.
Cross-Sectional Area
The larger the cross-sectional area, the higher the current capacity.
Formula:
Current Capacity ∝ Width × Thickness
A wider or thicker busbar reduces resistance.
Ambient Temperature
High ambient temperature reduces heat dissipation, lowering current capacity.
| Ambient Temperature | Capacity Impact |
|---|---|
| 25°C | Normal |
| 35°C | Slight reduction |
| 45°C | Significant reduction |
Installation Method
Busbars installed in open air have better cooling compared to enclosed panels.
Common installation types:
- Open air mounting
- Enclosed panel mounting
- Vertical arrangement
- Horizontal arrangement
Temperature Rise Limit
Most busbars are designed for a temperature rise of 30°C to 50°C above ambient.
Busbar Current Carrying Capacity Formula
A common practical formula used in busbar calculations is:
I = A × J
Where:
- I = Current in amperes
- A = Cross-sectional area in mm²
- J = Current density (A/mm²)
Typical current density values:
| Material | Current Density |
|---|---|
| Copper | 1.2 to 1.6 A/mm² |
| Aluminum | 0.8 to 1.2 A/mm² |
Example:
For a copper busbar of 100 mm × 10 mm:
- Area = 100 × 10 = 1000 mm²
- Using current density = 1.4 A/mm²
- Current = 1000 × 1.4 = 1400 A
A Busbar Current Carrying Capacity Calculator performs this instantly.
Key Takeaways
- Busbar sizing directly impacts safety and efficiency
- Copper busbars offer better conductivity than aluminum
- Ambient temperature affects current carrying capacity
- Installation method changes heat dissipation
- Current density is a key factor in ampacity calculation
- A calculator saves time and improves accuracy
Standard Busbar Current Carrying Capacity Table
The table below gives approximate values for copper busbars in open air.
| Busbar Size (mm) | Area (mm²) | Approx Current (A) |
|---|---|---|
| 25 × 3 | 75 | 110 |
| 25 × 5 | 125 | 160 |
| 40 × 5 | 200 | 275 |
| 50 × 5 | 250 | 350 |
| 50 × 10 | 500 | 700 |
| 75 × 10 | 750 | 1050 |
| 100 × 10 | 1000 | 1400 |
These values can vary depending on temperature and enclosure conditions.
How to Use a Busbar Current Carrying Capacity Calculator
Using the calculator is simple.
Step 1: Select Material
Choose copper or aluminum.
Step 2: Enter Width
Input busbar width in millimeters.
Step 3: Enter Thickness
Input busbar thickness.
Step 4: Select Current Density
Choose the required current density based on application.
Step 5: Calculate
The tool will show the estimated current carrying capacity.
This process reduces manual calculation errors.
Applications of Busbar Current Calculation
Busbar calculations are essential in many electrical applications:
- Main distribution boards
- LV switchgear panels
- Motor control centers
- Solar power systems
- Battery banks
- Transformer connections
- Industrial automation panels
Common Busbar Sizing Mistakes
Avoid these common mistakes:
Ignoring Temperature Correction
Many installers use standard values without considering site temperature.
Choosing Low Thickness
Thin busbars can overheat under continuous load.
Poor Ventilation
Enclosed spaces trap heat and reduce ampacity.
Not Considering Future Expansion
Always leave room for load growth.
Using Wrong Material Data
Copper and aluminum have different conductivity levels.
Using the right calculator helps avoid these issues.
Tips for Better Busbar Design
For better performance:
- Use tin-plated copper for corrosion resistance
- Maintain proper spacing between phases
- Check short circuit withstand capacity
- Ensure proper tightening of joints
- Use thermal imaging for maintenance
Follow our guide on Busbar Insulator Size Chart for insulator sizing after busbar calculation.
Busbar Contact Resistance Test Procedure
A busbar contact resistance test procedure verifies that bolted joints and electrical connections have low resistance, minimizing heat generation and power loss. Even when using a Busbar Current Carrying Capacity Calculator, poor contact resistance can reduce the actual current-carrying performance of the installation.
| Test Step | Purpose |
|---|---|
| Clean contact surfaces | Remove oxidation and contaminants |
| Tighten bolts to specified torque | Ensure consistent contact pressure |
| Inject DC test current | Measure joint resistance accurately |
| Record and compare readings | Identify high-resistance connections |
High contact resistance often results from loose fasteners, corrosion, damaged contact surfaces, or incorrect assembly. Regular testing during commissioning and preventive maintenance helps prevent overheating, voltage drop, and premature equipment failure.
For a detailed guide on equipment, acceptance criteria, test current selection, and step-by-step measurements, read our busbar joint resistance testing guide, which explains the complete busbar contact resistance test procedure with practical recommendations and industry best practices.
IEC Standard for Busbar Clearance
Although a Busbar Current Carrying Capacity Calculator helps determine the required busbar size based on current and temperature rise, adequate electrical clearance is equally important for safe operation. IEC 61439 specifies minimum air clearances and insulation coordination requirements to prevent flashover between live conductors and grounded parts. Clearance values depend on the system voltage, pollution degree, altitude, and enclosure design.
| Parameter | IEC Reference |
|---|---|
| Standard | IEC 61439-1 |
| Purpose | Electrical air clearance and insulation coordination |
| Factors Affecting Clearance | Rated voltage, altitude, pollution degree, enclosure type |
Before finalizing your busbar dimensions, verify that the selected conductor also meets the required clearance distances specified by IEC standards. You can find detailed voltage-wise requirements, altitude corrections, and practical design examples in our guide on IEC busbar clearance requirements, helping ensure both thermal performance and electrical safety.
Busbar Clearance as per IEC 61439
While a Busbar Current Carrying Capacity Calculator helps determine the required conductor size based on current, thermal limits, and material, proper spacing between live conductors is equally important. IEC 61439 specifies minimum electrical clearances to prevent flashover and insulation failure inside low-voltage switchgear assemblies. Clearance requirements vary with the rated impulse withstand voltage, pollution degree, and installation environment.
| Factor | Importance |
|---|---|
| Air Clearance | Prevents phase-to-phase and phase-to-earth flashover |
| Creepage Distance | Reduces tracking across insulating surfaces |
| Rated Voltage | Determines the minimum required spacing |
For detailed clearance values, design examples, and IEC compliance guidelines, refer to our comprehensive guide on IEC 61439 busbar clearance requirements, which explains the standard in greater detail.
IEC Standard for Busbar Contact Resistance
The IEC Standard for Busbar Contact Resistance is mainly covered under IEC 62271-1 and IEC 61439, where low-resistance electrical joints are verified during type and routine testing. Excessive contact resistance increases power loss, voltage drop, and localized heating, reducing the effective current-carrying capability of a busbar system.
Although a Busbar Current Carrying Capacity Calculator estimates ampacity based on conductor dimensions and material, maintaining low joint resistance is equally important for achieving the calculated performance.
| IEC Standard | Purpose |
|---|---|
| IEC 61439 | Verifies performance of low-voltage switchgear assemblies, including busbar connections. |
| IEC 62271-1 | Specifies contact resistance requirements and testing for high-voltage switchgear. |
| IEC 60512 (selected methods) | Defines electrical contact test methods for connectors and contact systems. |
To understand recommended test methods, acceptance criteria, and measurement procedures, read our guide on IEC requirements for busbar contact resistance testing, which explains the relevant standards and practical testing considerations in detail.
Busbar Impedance Calculation
While a Busbar Current Carrying Capacity Calculator determines the safe ampacity of a conductor, impedance is equally important for voltage drop and fault current analysis. Busbar impedance depends on the conductor material, dimensions, length, spacing, and operating frequency.
Lower impedance reduces power losses and improves system efficiency, especially in high-current switchboards and distribution panels. If your design requires both thermal and electrical verification, calculate impedance alongside current capacity.
| Parameter | Effect on Busbar Impedance |
|---|---|
| Length | Longer busbars increase impedance |
| Cross-sectional Area | Larger area lowers impedance |
| Material | Copper has lower impedance than aluminum |
| Frequency | Higher frequency increases AC impedance |
For a step-by-step method, formulas, and practical examples, use our Busbar Impedance Calculation Guide to accurately determine busbar impedance before finalizing your design. This complements the Busbar Current Carrying Capacity Calculator by ensuring both ampacity and electrical performance are properly evaluated.
Busbar Losses Calculation
Although a Busbar Current Carrying Capacity Calculator determines the maximum safe current, it does not estimate the electrical losses that occur during operation. Busbar losses mainly depend on conductor resistance, material, length, cross-sectional area, and load current. As current increases, power loss rises according to the I²R relationship, making accurate loss estimation essential for improving efficiency, reducing heat generation, and selecting the right busbar dimensions.
| Parameter | Effect on Busbar Losses |
|---|---|
| Current (A) | Higher current increases I²R losses |
| Material | Copper has lower resistance than aluminum |
| Length | Longer busbars produce higher losses |
| Cross-Sectional Area | Larger area reduces resistance and losses |
For a detailed estimation method, use our complete guide on Busbar Losses Calculation to calculate voltage drop, resistance, and power losses under different operating conditions.
FAQs
How accurate is a Busbar Current Carrying Capacity Calculator?
It is highly accurate when correct dimensions, material type, and temperature values are entered.
Which material is better for busbars?
Copper is better for conductivity and compact designs, while aluminum is cheaper and lighter.
Does busbar shape affect current carrying capacity?
Yes, wider busbars usually dissipate heat better than narrow thick ones.
Can I use the same busbar for AC and DC systems?
Yes, but DC systems may require additional thermal considerations.
What is the standard current density for copper busbars?
It usually ranges between 1.2 to 1.6 A/mm² depending on cooling conditions.
Final Thoughts
A Busbar Current Carrying Capacity Calculator is an essential tool for electrical professionals. It improves accuracy, saves time, and reduces design errors. Whether you are designing a switchboard, solar panel, or industrial distribution system, calculating busbar capacity correctly ensures long-term safety and performance.
