The NEC code for stapling Romex sits in Section 334.30 of Article 334: secure the cable within 12 inches of every box and at intervals of no more than 4½ feet, using staples, straps or ties identified for the job. That single sentence settles most inspection arguments, but the details around it are where crews slip up.
In 15+ years of power systems and EPC work, I have seen crews staple every foot and crush the jacket, and others skip the first support at the box and fail rough-in. This guide gives you the numbers, the exceptions and answers to what US readers search most.
Quick answer:
- Maximum spacing: 4½ ft (1.4 m) between supports
- First support: within 12 in. (300 mm) of every box, cabinet or fitting
- Small nonmetallic box with no clamps: within 8 in., per 314.17(C)
- Flat cable: never stapled on edge
- Exceptions: cable in bored holes, fished cable and short drops in accessible ceilings
Table of Contents
Table of Contents
What Is the NEC Code for Stapling Romex?
Romex is a brand name. The NEC calls the product nonmetallic-sheathed cable (Types NM, NMC and NMS) and covers it in Article 334. Support rules live in 334.30, titled Securing and Supporting. In plain terms, the NEC code for stapling Romex says the cable must be held by staples, cable ties, straps, hangers or similar fittings that are identified for the purpose and installed so they do not damage the sheath.
The NEC is law only where your state or city adopts it. The two core numbers (4½ ft and 12 in.) hold in recent editions, but paragraph lettering has shifted, so confirm what your inspector enforces. Our NEC code guide for home electrical wiring explains how adoption works, and the full electrical standards library lists every NEC article we cover.

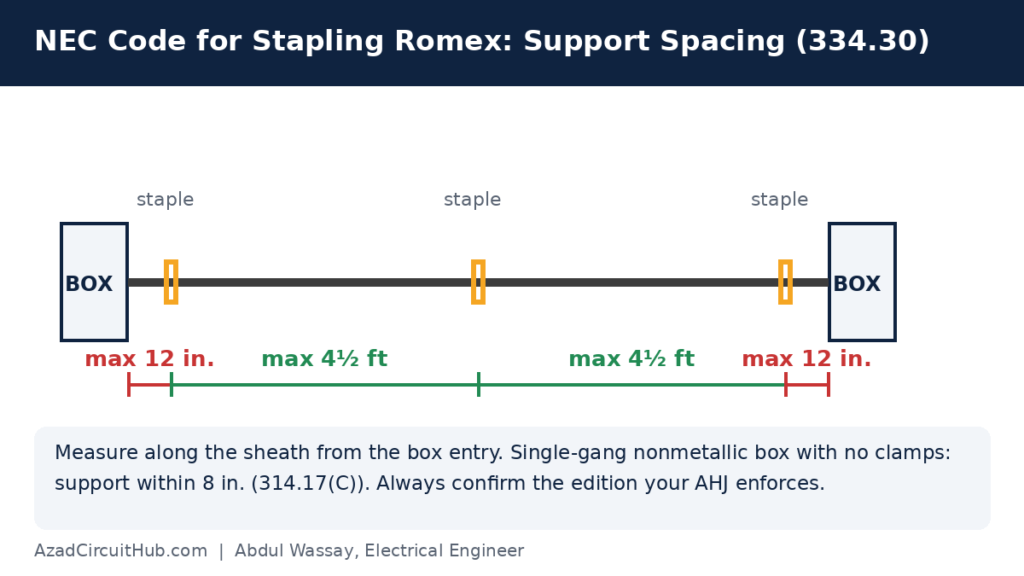

NEC Code for Stapling Romex NM Cable: Spacing Rules
Three measurements define the NEC code for stapling Romex on every run:
- Within 12 inches of every box. Measure along the sheath from the point where the cable enters the box, cabinet or fitting.
- Every 4½ feet after that. This applies to horizontal and vertical runs on framing and surfaces.
- Sheath into the box. The sheath should extend at least ¼ inch inside the box under 314.17(C).

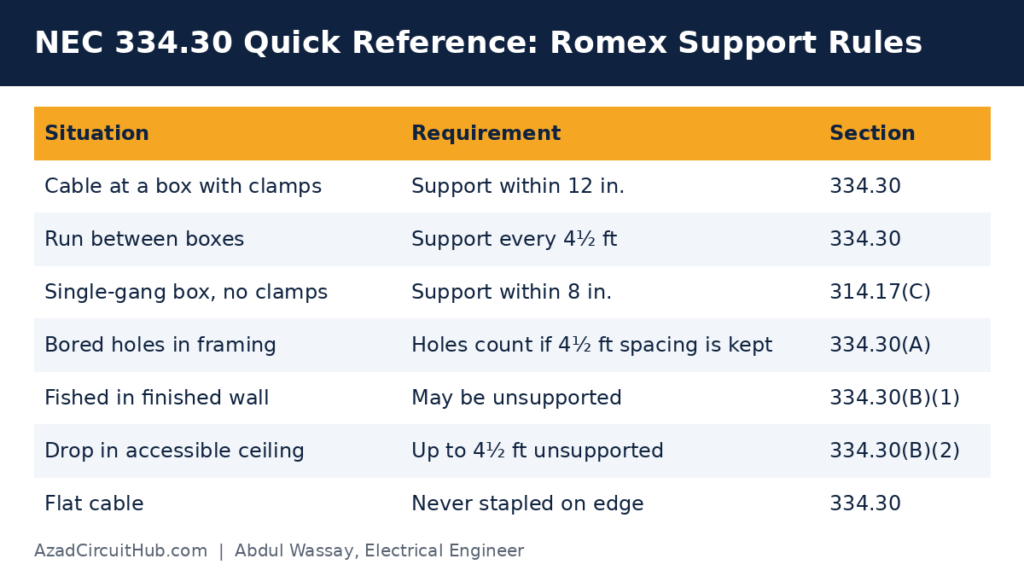

| Situation | Rule | Section |
|---|---|---|
| Cable entering a box with clamps | Support within 12 in. | 334.30 |
| Run between boxes | Support every 4½ ft | 334.30 |
| Single-gang nonmetallic box, no clamps | Support within 8 in., sheath ¼ in. inside | 314.17(C) |
| Cable through bored holes | Holes count as support if spacing stays within 4½ ft and cable is secured within 12 in. of boxes | 334.30(A) |
| Cable fished through finished walls | May be unsupported where supporting is impracticable | 334.30(B)(1) |
| Drop to a luminaire in an accessible ceiling | Up to 4½ ft unsupported | 334.30(B)(2) |
Size the conductors before you staple. The cable size calculator matches gauge to load, and the Article 240 overcurrent guide covers the breaker limits for 14 and 12 AWG NM cable.
Does Romex Need to Be Stapled Under the NEC Code for Stapling Romex?
Yes, in most cases. The NEC code for stapling Romex applies to exposed runs and to concealed runs once the cable leaves a bored hole and heads for a box. Three exceptions are worth knowing:
- Bored holes: where cable passes through holes in studs or joists in a horizontal run, the framing counts as support, provided spacing stays within 4½ ft and the cable is secured within 12 in. of each box.
- Fished cable: under 334.30(B)(1), cable fished between access points in a finished wall may go unsupported where supporting is impracticable.
- Accessible ceiling drops: a drop of up to 4½ ft to a luminaire or equipment may be unsupported when the connection sits in an accessible ceiling.
In unfinished basements, 334.15(C) lets only larger cables (two 6 AWG or three 8 AWG conductors and up) be fastened to the lower edge of joists. Smaller cables go through bored holes or onto a running board.
How Many Romex Wires Can Go Under One Staple?
The NEC does not give a number. It requires supports identified for the cable and installed without damage, so the staple’s listing and labeling control. Most insulated staples are made for one cable. Two-cable staples exist, but use one only if the package marks it for two. Forcing a second cable under a single-cable staple squeezes both jackets.
Bundling also matters: under 334.80, cables bundled through one sealed opening, or run in contact with thermal insulation, need an ampacity adjustment.
Does the NEC Permit Two-Wire Romex Stapled on Edge?
No. The NEC code for stapling Romex states that flat cables shall not be stapled on edge. Two-conductor NM-B is flat, so lay it on its wide face and staple across it. Stapling on edge pinches the conductor insulation along the narrow side.
Romex Supports: NEC Cable Support Requirements in Practice
Under the NEC code for stapling Romex, you may use staples, straps, ties or hangers, but the right choice depends on the surface:
- Insulated staples: the standard for wood framing. Drive them so the cable can still slide slightly. A staple that dents the jacket is too tight.
- Cable straps: better on masonry or steel where a staple will not bite.
- Cable ties and hangers: suitable where identified for NM cable.
If you rough in more than a room or two, a purpose-built romex staple gun with insulated cable staples is faster and kinder to the jacket than a hammer. Under 300.4(A)(1), cable through wood framing must stay at least 1¼ inches from the nearest edge, or be protected by a steel plate at least 1/16 inch thick, so keep a box of steel nail plates in the truck.

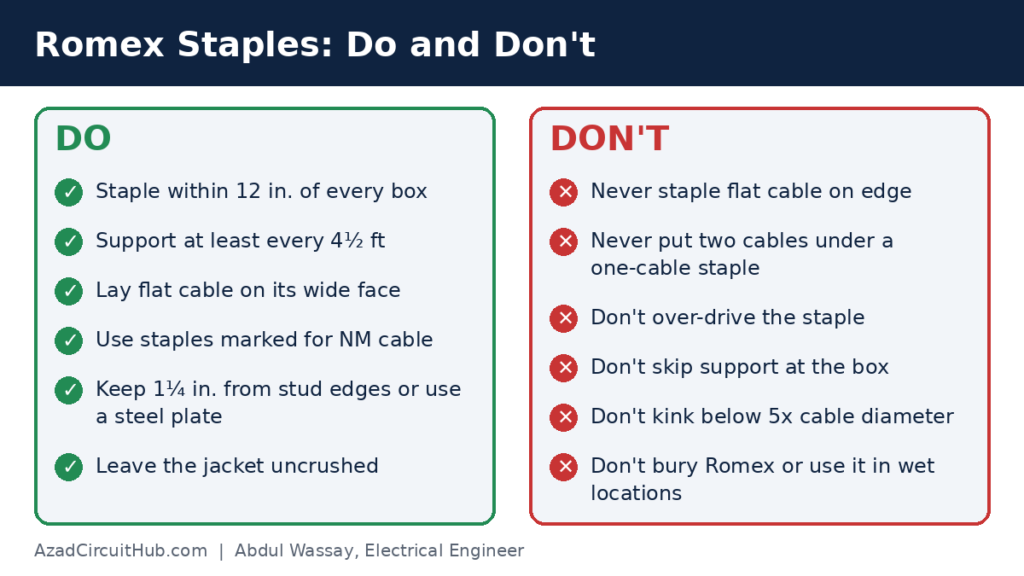

Electrical Code for Stapling Wire: NEC Code for Stapling Romex Mistakes
- Stapling on edge. Flat cable goes on its wide face.
- No support within 12 in. of the box. The most common rough-in fail.
- Two cables under one single-cable staple. Use the staple’s marked capacity.
- Ignoring the NEC code for stapling Romex at boxes. Support within 12 in. is checked first.
- Tight bends. Under 334.24 the inside radius must be at least five times the cable diameter. Check it with the cable bending radius calculator.
- Overfilled boxes. Use the junction box fill chart before closing up.
Is It Against Code to Run Romex Through Conduit?
Not as a short sleeve. Section 334.15(B) lists rigid metal conduit, IMC, EMT and Schedule 80 PVC as ways to protect NM cable from physical damage, and 334.30 says sections protected by a raceway do not need to be secured inside it. Where it goes wrong is length and location.
Long runs raise heat and fill questions, so use our Romex in conduit calculation guide and NEC Chapter 9 Table 1 fill percentages before you commit. NM cable is also not allowed in wet or damp locations under 334.12(B), which rules out buried conduit entirely, as covered in the NEC code for underground conduit depth guide. To size a sleeve, use the conduit fill calculator and the NEC article for conduit fill.
Article 334 NEC: Other Sections That Affect Stapling
| Section | What it covers |
|---|---|
| 334.12 | Where NM cable is not permitted, including wet and damp locations |
| 334.15 | Exposed work and protection from physical damage |
| 334.24 | Minimum bending radius (five times diameter) |
| 334.30 | Securing and supporting |
| 334.80 | Ampacity limits, 60°C maximum |
Metal boxes also need bonding, so read the NEC article for grounding and bonding, and see junction box vs pull box when you are not sure which enclosure a splice belongs in.
Tools Worth Buying for Romex Installs
| Item | Why you need it |
|---|---|
| Romex staple gun | Fast, consistent staple depth |
| NM cable clamps | First support at the box |
| 12/2 NM-B Romex wire | The cable these rules cover |
| Non-contact voltage tester | Confirm dead before you touch it |
| Wire strippers | Clean strips without nicking copper |
Browse more gear in our product reviews, or see the Klein ET310 breaker finder review for tracing circuits.
FAQ: NEC Code for Stapling Romex
What is the NEC code for stapling Romex?
The NEC code for stapling Romex is Section 334.30: support within 12 in. of every box and every 4½ ft along the run.
How far apart does Romex have to be stapled?
No more than 4½ feet apart, with the first support within 12 inches of the box.
What does NEC 334.30(B)(1) say?
It allows NM cable to be unsupported when it is fished between access points in finished walls and supporting is impracticable. Verify the lettering in your adopted edition.
How many Romex wires can go under one staple?
One, unless the staple is marked for two.
Conclusion
The NEC code for stapling Romex comes down to a few numbers: 12 inches to the box, 4½ feet between supports, and never on edge. Pick supports identified for NM cable, keep the jacket uncrushed, and confirm your edition with the AHJ.
Next, size the circuit with the electrical calculators, and read the official text at NFPA 70.
Disclaimer: This article is for educational use and does not replace the NEC, local amendments or your AHJ. Electrical work should be done by qualified persons.
