DC DC Converter Interview Questions: Important Concepts
Importance of DC DC Converter Interview Questions
DC DC converters play a pivotal role in modern electronics by enabling efficient voltage level transformations for various applications. As power conversion remains a fundamental aspect of electronic systems, understanding the principles, design considerations, and practical implications of DC DC converters becomes crucial for engineers and professionals in the field.
In this discussion, we will explore a comprehensive set of DC DC converter interview questions that delve into topics such as operating principles, efficiency calculations, control techniques, component selection, and more. These DC DC converter interview questions aim to uncover the depth of knowledge and expertise in candidates by assessing their grasp on foundational concepts.
Table of Contents
Read More About
DC DC Converter Interview Questions
What are the main types of DC DC converters and their applications?
DC DC converters are essential components in various electronic systems. Common types include buck, boost, buck-boost, and flyback converters. A buck converter steps down voltage, useful in battery-operated devices.
A boost converter increases voltage, important for powering devices requiring higher voltage than the input. Buck-boost converters handle both step-down and step-up tasks. Flyback converters are employed in isolated power supplies and battery charging.
Explain the principle of operation for a buck converter.
A buck converter uses a transistor switch (often a MOSFET) to control the energy flow from input to output. During the switch-on time (Ton), energy is stored in the inductor. During the off-time, this energy is transferred to the output through a diode. The output voltage is determined by the duty cycle (Ton / Ttotal Switching Period) and the input voltage.
How can the efficiency of a DC DC converter be calculated?
Efficiency (η) is calculated using the formula:
η = (Pout / Pin) x 100%
where “Pout” is the output power and “Pin” is the input power. This provides a measure of how effectively the converter converts input power to useful output power, with losses considered.
What is the significance of duty cycle in DC DC converters?
The duty cycle (D) controls the ratio of the time the switch is on (Ton) to the total switching period. It affects the average output voltage and is given by:
D = Ton / Ttotal Switching Period.
Describe the role of capacitors in DC DC converters.
Capacitors in DC DC converters store energy and smooth voltage and current variations. They help reduce output voltage ripple and provide transient response improvement.
What is voltage ripple, and how is it calculated?
Voltage ripple refers to the AC component superimposed on the DC output voltage. It’s calculated using the formula:
V(ripple) = (IL x Ton) / (2 x C)
where “IL” is the inductor current and “C” is the output capacitance.
Explain the benefits of synchronous rectification in a buck converter.
Synchronous rectification replaces the diode with a MOSFET switch that conducts only when it has lower voltage drop. This reduces conduction losses, improving efficiency and reducing voltage drop across the rectifier.
What is a flyback converter, and how does it differ from other topologies?
A flyback converter is an isolated topology that stores energy in the transformer during switch-on and releases it to the output during switch-off. Unlike other topologies, it allows for multiple outputs, galvanic isolation, and simpler magnetic components.
Explain the concept of soft-start in DC DC converters.
Soft-start gradually increases the output voltage during startup, preventing abrupt changes that could stress components or cause overshoot. It involves slowly ramping up the duty cycle.
How can electromagnetic interference (EMI) be mitigated in DC DC converters?
EMI can be reduced by proper grounding, shielding, filtering, and using layout techniques that minimize loop areas and reduce high-frequency currents. Adding snubber circuits can also help in dampening voltage spikes.
Discuss the importance of transient response in DC DC converters.
Transient response measures how quickly a converter can adjust its output voltage when there are sudden changes in load or input voltage. A fast transient response ensures stable operation during dynamic conditions, preventing output voltage deviations.
What is voltage-mode control in DC DC converters?
Voltage-mode control is a feedback control technique where the output voltage error is used to adjust the duty cycle of the switching signal. It helps maintain a constant output voltage even under changing load conditions.
Explain the significance of the snubber circuit in a DC DC converter.
A snubber circuit is used to suppress voltage spikes that occur during switching transitions. It reduces stress on components, enhances efficiency, and minimizes EMI emissions by providing a path for excess energy dissipation.

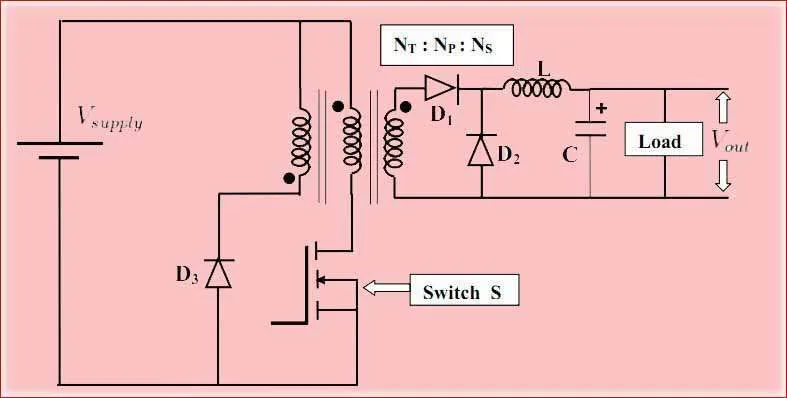

Compare and contrast isolated and non-isolated DC DC converters.
Isolated converters have a transformer that provides galvanic isolation between input and output, ensuring safety and eliminating ground loop issues. Non-isolated converters lack isolation, making them simpler and more cost-effective, but they cannot provide electrical isolation.
Discuss the trade-off between efficiency and component size in DC DC converter designs.
Higher efficiency typically requires larger components, such as inductors and capacitors, to reduce losses. Balancing efficiency and size is crucial in achieving optimal performance and compact designs.
Explain the impact of thermal management on DC DC converter performance.
Efficient thermal management is essential to prevent overheating of components, which can degrade performance and reliability. Heat sinks, proper PCB layout, and thermal vias help dissipate excess heat.
Describe the advantages and challenges of using digital control techniques in DC DC converters.
Digital control offers precision, adaptability, and advanced features through algorithms. However, it requires higher complexity, adds cost, and can be susceptible to digital noise and timing issues.
What factors should be considered when selecting components for a DC DC converter design?
When selecting components, consider efficiency, current and voltage ratings, switching frequency, temperature specifications, and compatibility with the intended application.
Explain the principle of operation behind a boost converter.
A boost converter increases the input voltage by storing energy in an inductor during switch-on time and releasing it to the output during switch-off time. The output voltage is determined by the duty cycle and the input voltage.
Discuss the relationship between duty cycle and output voltage in DC DC converters.
The output voltage in a DC DC converter is proportional to the duty cycle. As the duty cycle increases, the energy transferred to the output increases, resulting in a higher output voltage.
What is the role of inductors in DC DC converters?
Inductors store energy in their magnetic fields and smooth out current variations, helping to maintain a steady output voltage.
How can voltage regulation be achieved in a DC DC converter?
Voltage regulation in a DC DC converter is achieved by using feedback control. The error between the actual and desired output voltage is used to adjust the duty cycle, ensuring the output voltage remains constant.
Explain the concept of phase-shift modulation in resonant DC DC converters.
Phase-shift modulation involves controlling the phase difference between two converter branches in a resonant converter. It optimizes the converter’s performance by minimizing losses and maximizing efficiency.
Describe the significance of voltage ripple and current ripple in DC DC converters.
Voltage ripple impacts the stability and quality of the output voltage, while current ripple affects the overall efficiency and stress on the components.
How does thermal management impact the reliability of DC DC converters?
Efficient thermal management prevents components from overheating, which can lead to degradation and failure. Proper cooling mechanisms, such as heat sinks and airflow, are essential to maintaining reliability.
Understanding these DC DC converter interview questions is important for designing and utilizing efficient and reliable power conversion systems. DC DC converter interview questions also help in understanding the principles, applications, and practical considerations of converters in modern electronics.
