Contact Resistance Test IEC Standard: Important Guide
The contact resistance test IEC standard is a crucial reference for professionals working with electrical switchgear, circuit breakers, and high-current connectors. This test ensures the integrity of electrical connections and confirms that the resistance at contact points is within acceptable limits. Reliable contact points prevent overheating, power loss, and equipment damage.
This article covers the essentials of contact resistance testing, with a focus on the IEC standards, testing procedures, technical requirements, and best practices. You’ll find technical insights and a practical understanding that goes beyond theory.
Table of Contents
Table of Contents
What Is Contact Resistance?
Contact resistance is the small electrical resistance that occurs where two conductive surfaces meet, such as circuit breaker contacts, relay terminals, switches, or busbar connections. Even though these components are designed to conduct current efficiently, microscopic surface irregularities, oxidation, contamination, and contact pressure can increase resistance.
| Factor | Effect on Contact Resistance |
|---|---|
| Oxidation | Increases resistance |
| Loose connection | Increases resistance |
| Surface contamination | Reduces conductivity |
| Higher contact pressure | Usually lowers resistance |
A low and stable reading generally indicates a healthy connection, while an unusually high value may point to deterioration or a poor joint. Understanding Contact Resistance helps engineers interpret test results correctly before applying the Contact Resistance Test IEC Standard requirements.
For a deeper explanation of the definition, causes, measurement methods, and practical significance, see our detailed guide on what contact resistance means and how it affects electrical connections.
Understanding Contact Resistance Test IEC Standard
Contact resistance refers to the resistance encountered at the contact points of electrical connections. This includes circuit breakers, isolators, disconnect switches, and busbar joints.
According to the IEC 62271-100 and IEC 60694 standards, this test is mandatory for high-voltage switchgear and circuit breakers. The standard defines acceptable limits, test current levels, and methodologies. It ensures reliable performance over the operational life of equipment.
A high contact resistance is a warning sign. It can cause localized heating, leading to failure or fire hazards. That’s why the test is vital during manufacturing, installation, and routine maintenance.
Contact Resistance Testing
Contact resistance testing measures the electrical resistance across closed contacts, joints, terminals, or switching devices. A low and stable resistance indicates a good electrical connection, while an unusually high value can indicate oxidation, loose connections, contamination, or contact wear.
| Test Parameter | Typical Purpose |
|---|---|
| Resistance | Identify high-resistance connections |
| Test current | Produce reliable low-resistance measurements |
| Test result | Compare phases, poles, or contacts |
Following the Contact Resistance Test IEC Standard helps ensure consistent test methods and reliable measurements. For practical procedures, test-current considerations, equipment, and result interpretation, see our detailed guide on contact resistance testing.
Why Is Contact Resistance Testing Important?
The contact resistance test IEC standard is not just about compliance—it’s about safety and system reliability. Poor connections can lead to severe faults. Consider these critical points:
- High resistance causes power losses and inefficient power flow.
- It leads to thermal runaway at the point of connection.
- Can cause malfunction in protection devices.
- Compromises the lifespan of switchgear and breakers.
Testing ensures the mechanical and electrical integrity of the connection. It verifies that tightening torque, surface finish, and contact pressure are correct.
Contact Resistance Test IEC Standard
Let’s review the key IEC standards that govern this test:
| Standard | Title | Relevance to Contact Resistance Test |
|---|---|---|
| IEC 62271-100 | High-voltage switchgear and controlgear – Part 100 | Specifies requirements for circuit-breakers, including contact resistance testing |
| IEC 61010-1 | Safety requirements for electrical equipment | Provides guidance on safe measurement and testing practices |
| IEC 60694 (Replaced by IEC 62271-1) | Common specifications for switchgear | Covers general test conditions and definitions |
| IEC 60255-27 | Measuring relays and protection equipment | Covers testing of electrical contact behavior in protection systems |
These standards recommend the use of DC test currents, typically in the range of 50A to 100A, to simulate actual operating conditions. The measured resistance should be in the micro-ohm (µΩ) range.
Test Procedure According to Contact Resistance Test IEC Standard

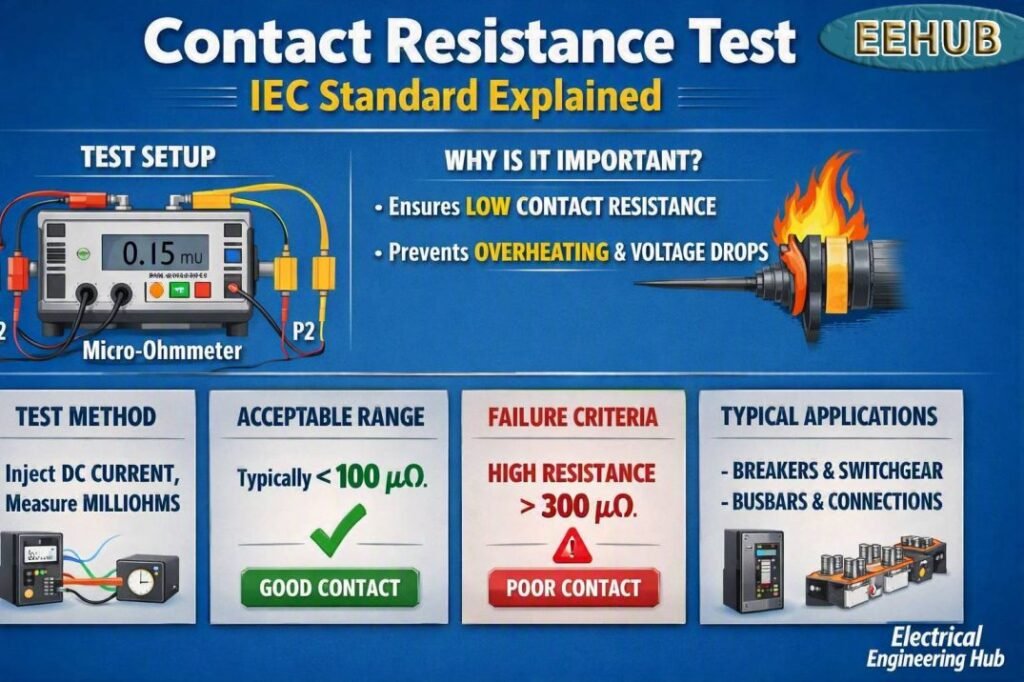

The contact resistance test is straightforward, but precision is vital. Here’s how the process aligns with IEC standards:
Preparation
De-energize the equipment and isolate it properly. Clean the contact surfaces if required.
Test Setup
Use a micro-ohmmeter or ductor tester with four-terminal (Kelvin) connections. This eliminates lead and contact resistance from the measurement.
Applying Current
Apply the rated DC current as recommended by the IEC standard, usually 50A to 100A, depending on equipment type.
Measuring Voltage Drop
Measure the millivolt drop across the contact point.
Calculating Resistance
Use Ohm’s law:
Resistance = Voltage Drop (V) / Test Current (I)
Recording Results
Document the measured values and compare them with manufacturer’s limits or IEC thresholds.
Interpreting Results
A typical contact resistance value for high-current devices should be less than 100 µΩ. If the value exceeds the limit, recheck the tightening torque, surface condition, and alignment.
Contact Resistance Measurement
Contact resistance measurement checks the resistance at electrical joints, terminals, breakers, switches, and other conductive connections. A low and stable reading indicates a good connection, while an unusually high value can indicate oxidation, loose hardware, contamination, or contact wear.
| Test Item | Typical Method |
|---|---|
| Circuit breaker contacts | Micro-ohmmeter |
| Busbar joints | Four-wire Kelvin test |
| Switch contacts | Low-resistance measurement |
| Cable terminals | Milliohm testing |
When performing a Contact Resistance Test IEC Standard procedure, use the equipment manufacturer’s test current and acceptance criteria. For practical test methods, instruments, connections, and interpretation of readings, see this detailed guide to Contact Resistance Measurement.
Types of Equipment Tested Under IEC Standards
According to the contact resistance test IEC standard, the following equipment types require testing:
- HV/LV Circuit Breakers
- Busbar Joints and Connectors
- Isolators and Disconnectors
- Knife Switches and Terminal Blocks
- Power Contactors
- Battery Interconnects
Each component has a defined resistance threshold. Exceeding the limit calls for corrective action or replacement.
Typical Contact Resistance Values for Electrical Equipment
Contact resistance values vary by equipment type, contact material, rated current, and connection condition. In a Contact Resistance Test IEC Standard procedure, the measured value should be compared with the manufacturer’s specifications and previous test results rather than relying on one universal limit.
| Electrical Equipment | Typical Contact Resistance |
|---|---|
| Circuit breaker main contacts | 10–100 µΩ |
| Disconnect/isolator contacts | 20–200 µΩ |
| Busbar joints | 10–100 µΩ |
| Switchgear contacts | 10–100 µΩ |
| Cable lug connections | 10–50 µΩ |
| Contactor contacts | 20–200 µΩ |
What Do High Values Indicate?
A higher-than-expected reading may indicate oxidation, loose connections, contact wear, contamination, or inadequate contact pressure. Testing should be performed with a suitable low-resistance micro-ohmmeter using the correct test current and four-wire Kelvin method.
For practical guidance on interpreting readings, see our detailed guide to Contact Resistance Values and acceptable measurement practices.
Factors That Affect Contact Resistance
Several variables influence the contact resistance value:
- Surface Oxidation
Oxidized layers increase resistance significantly. - Contact Pressure
Low contact force results in poor metal-to-metal contact. - Contact Material
Silver, copper, and their alloys have different resistive properties. - Mechanical Wear
Worn or misaligned contacts increase the path resistance. - Contamination or Dust
Non-conductive contaminants raise resistance and lead to arcing.
Maintaining the integrity of contact surfaces is essential. That’s why periodic testing is recommended in IEC preventive maintenance schedules.

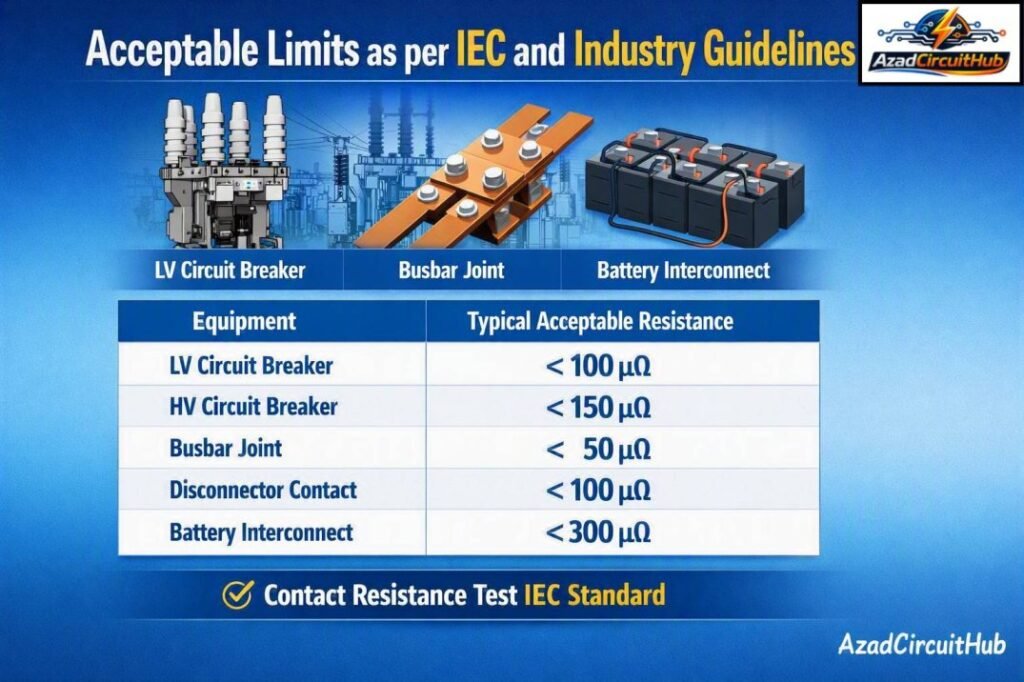

Acceptable Limits as per IEC and Industry Guidelines
While IEC standards don’t always specify exact values for all equipment, most manufacturers and field engineers follow these approximate limits:
| Equipment | Typical Acceptable Resistance |
|---|---|
| LV Circuit Breaker | < 100 µΩ |
| HV Circuit Breaker | < 150 µΩ |
| Busbar Joint | < 50 µΩ |
| Disconnector Contact | < 100 µΩ |
| Battery Interconnect | < 300 µΩ |
Always refer to the OEM’s datasheet along with the IEC guidance to interpret results accurately.
Circuit Breaker Contact Resistance
Low resistance across breaker contacts is essential for safe current flow and reliable protection. A high reading may indicate oxidation, loose connections, pitted contacts, or mechanical wear. The table below provides a quick reference before performing a test.
| Check | What It Indicates |
|---|---|
| Low, stable reading | Healthy contact condition |
| Higher-than-expected reading | Possible contact deterioration |
| Uneven phase readings | Potential connection or contact issue |
For the correct test current, limits, and IEC-based procedure, see our detailed guide on Circuit Breaker Contact Resistance Test, which explains the complete contact resistance test IEC standard requirements. Regular testing helps identify developing faults before they cause overheating, nuisance trips, or equipment damage.
Busbar Contact Resistance
Busbar joints and connections can develop unwanted resistance due to loose hardware, oxidation, contamination, or poor surface contact. Measuring Busbar Contact Resistance helps identify weak connections before they cause overheating, voltage drop, or equipment damage.
| Test point | Typical concern |
|---|---|
| Busbar joint | Loose or oxidized connection |
| Breaker-to-bus connection | Poor contact pressure |
| Bolted splice | High joint resistance |
For accurate results, use a low-resistance micro-ohmmeter and follow the applicable Contact Resistance Test IEC Standard for test current, preparation, and evaluation. Record readings consistently and compare similar joints to spot abnormal values.
For the complete procedure, acceptable limits, testing method, and common causes of high readings, see our detailed guide on contact resistance test acceptable value for busbar.
Contact Resistance Test Switchgear
A contact resistance test switchgear procedure checks whether circuit-breaker and busbar connections have excessive resistance that could cause heating, voltage drop, or premature contact damage. A low-resistance micro-ohmmeter is typically used by injecting DC current through the closed contact path and measuring the resulting voltage drop.
| Test point | What to check | Typical concern |
|---|---|---|
| Circuit-breaker contacts | Main contact path | Oxidation, wear |
| Busbar joints | Bolted connections | Loose or contaminated joints |
| Disconnect switches | Contact surfaces | Pitting or misalignment |
| Cable terminations | Lug and connection points | Poor torque or corrosion |
For accurate results, isolate and properly ground the switchgear, clean accessible contact surfaces, and follow the equipment manufacturer’s limits. The Contact Resistance Test IEC Standard provides the relevant testing framework, while the manufacturer’s specifications should be used for acceptable resistance values.
Contact Resistance Calculator for Test Results
A Contact Resistance Calculator makes it easier to evaluate voltage drop and resistance during low-resistance testing. By entering the test current and measured voltage, you can quickly calculate contact resistance and compare results with acceptable limits.
| Input | Example |
|---|---|
| Test current | 100 A |
| Voltage drop | 2 mV |
| Calculated resistance | 20 µΩ |
This is particularly useful when testing circuit breaker contacts, disconnectors, busbar joints, and other high-current connections. For a practical calculation method and quick results, see our detailed contact resistance calculation tool.
Use calculated values alongside the applicable IEC test requirements and manufacturer specifications for proper assessment.
Best Practices for Reliable Contact Resistance Testing
To get consistent and accurate results, keep these practical tips in mind:
- Use four-wire Kelvin test method to eliminate lead resistance.
- Ensure the test current is stable and in compliance with IEC minimums.
- Always zero the meter before starting.
- Test under ambient temperature conditions similar to operating environments.
- Avoid testing in humid or contaminated atmospheres.
- Maintain calibration of test instruments as per IEC 61010.
Safety Guidelines for Contact Resistance Testing
Safety is always a priority during testing. Here’s how you can stay compliant:
- Follow lockout-tagout procedures before testing.
- Use insulated test leads with proper clamps.
- Wear PPE and avoid contact with live parts.
- Only qualified personnel should perform this test.
- Follow IEC 60204-1 guidelines for electrical safety in machinery and testing setups.
How Often Should Contact Resistance Be Tested?
IEC standards suggest contact resistance testing:
- Before commissioning
- After major maintenance
- Periodically every 2–3 years for critical systems
- After short-circuit events or high fault current passage
In environments with dust, vibration, or frequent switching, test intervals should be shortened.
Conclusion
The contact resistance test IEC standard helps ensure electrical reliability, safety, and performance in power systems. By following standardized test methods, using proper instruments, and interpreting results carefully, engineers can detect early signs of wear or failure.
In today’s world, where power quality and system uptime are essential, this test plays a vital role. Make it part of your routine maintenance checklist. Always refer to the applicable IEC guidelines and equipment-specific manuals for the best results.
