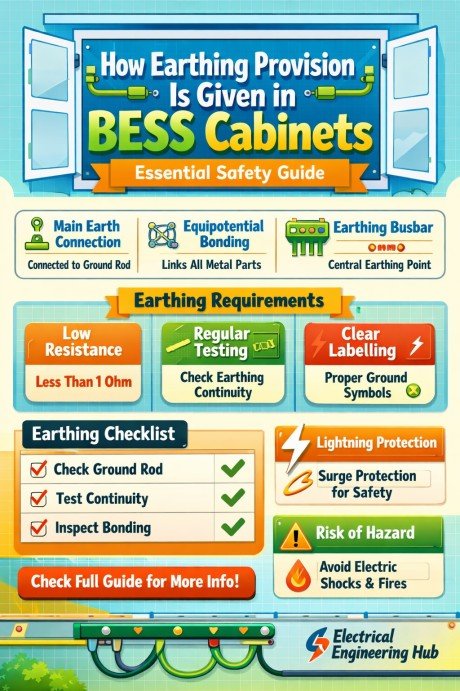

How Earthing Provision Is Given in BESS Cabinets: Essential Safety Guide
Battery Energy Storage Systems (BESS) are becoming a critical part of modern power networks. From solar farms to industrial backup systems, these cabinets store and distribute energy efficiently. But one area that cannot be overlooked is safety. A proper understanding of how Earthing Provision Is Given in BESS Cabinets is essential for protecting equipment, personnel, and the overall installation.
Earthing in BESS cabinets is not just a regulatory requirement. It is the first line of defense against electric shock, fault current, and fire hazards. Since battery systems handle high DC voltages and large fault currents, a strong grounding arrangement ensures safe operation.
Table of Contents
Table of Contents
In this guide, we will explain the earthing arrangement in BESS cabinets, its components, standards, and best practices.
Learn more about earthing cable size as per iec
Why Earthing Is Important in BESS Cabinets
Battery energy storage systems operate with sensitive electronics, battery racks, inverters, and protection devices. Without proper grounding, faults can become dangerous.
The main purposes of earthing in BESS include:
- Protection against electric shock
- Dissipation of fault current safely
- Reduction of touch voltage
- Protection against lightning surges
- Stabilization of system voltage
- Better performance of protective relays
When Earthing Provision Is Given in BESS Cabinets properly, the risk of equipment damage reduces significantly.
Main Components of Earthing in BESS Cabinets
A standard BESS grounding system consists of several parts working together.
| Component | Function |
|---|---|
| Earth Busbar | Common grounding point inside cabinet |
| Ground Rod | Connects system to earth mass |
| Bonding Conductors | Links metallic parts together |
| Surge Protection Device (SPD) | Diverts transient voltages |
| Equipment Grounding Conductor | Provides fault current path |
| Earth Pit | Low resistance grounding point |
Each component plays a role in maintaining electrical safety. Discover everything about cable bending radius iec standard
How Earthing Provision Is Given in BESS Cabinets
The process of grounding a BESS cabinet follows a planned structure. Let us break it down.
1. Cabinet Body Bonding
The outer metallic enclosure of the BESS cabinet is connected to the earth busbar. This prevents dangerous touch voltage if insulation fails.
All doors, hinges, and removable panels are also bonded.
This ensures:
- Equipotential bonding
- Continuous grounding path
- Reduced fault risk
2. Battery Rack Earthing
Battery racks are metallic structures that hold battery modules. These racks are grounded individually or through a common bus.
Battery rack grounding helps in:
- Static charge dissipation
- Fault current diversion
- Fire risk reduction
This is a key step when Earthing Provision Is Given in BESS Cabinets.
Dive deeper into instrument earthing iec standard
3. Inverter and PCS Grounding
Power Conversion System (PCS) and inverter units are major parts of BESS.
Their frames are connected to:
- Protective earth bus
- Main grounding electrode
This protects semiconductor devices from surge damage.
4. DC Negative Grounding
Depending on system design, the DC negative may be grounded or left floating.
There are two common methods:
| Grounding Type | Description |
|---|---|
| Solid Grounding | Direct connection to earth |
| Floating Grounding | No direct earth reference |
Floating systems are common in lithium battery systems to reduce stray currents.
Know more about IEC Standard for Neutral to Earth Voltage
5. Surge Protection Grounding
Lightning and switching surges can damage BESS systems. Surge Protection Devices are installed between phases and ground.
The grounding path must be short and low resistance for effective surge diversion.
Key Takeaways
- Earthing protects both humans and equipment in BESS cabinets.
- Every metallic part must be bonded to the earth busbar.
- Battery racks, inverters, and control panels need separate grounding checks.
- Low earth resistance improves system safety.
- Standards like IEC and NEC should always be followed.
- Proper inspection and testing are essential after installation.
For deeper grounding principles and compliance requirements, check our complete guide on iec 60364 earthing.
Standard Earthing Resistance for BESS
The earth resistance value should remain low for effective fault clearance.
Here is a general reference:
| Installation Type | Recommended Earth Resistance |
|---|---|
| Industrial BESS | Less than 1 ohm |
| Commercial BESS | Less than 2 ohms |
| Residential BESS | Less than 5 ohms |
| Sensitive Electronic Systems | Less than 1 ohm |
Lower resistance means better fault current flow. Know more about Ground Fault Protection vs Earth Leakage Protection
Earthing Standards for BESS Cabinets
Different international standards define grounding requirements.
IEC Standards
IEC standards are widely used in energy storage installations.
Relevant standards include:
- IEC 60364 for low-voltage installations
- IEC 62485 for battery safety
- IEC 62933 for energy storage systems
Understanding iec 60364 earthing helps engineers build compliant grounding systems.
NEC Standards
In North America, these codes apply:
- NEC Article 250 for grounding
- NEC Article 706 for energy storage systems
IEEE Standards
IEEE 80 is useful for grounding system design and step-touch potential calculations.
Know all the basics about earth conductor size calculation
Best Practices for BESS Cabinet Grounding
Proper installation improves long-term safety.
Use Copper Conductors
Copper offers low resistance and high durability.
Keep Ground Path Short
Long grounding cables increase impedance.
Separate Power and Signal Ground
This reduces electrical noise in communication circuits.
Install Multiple Earth Electrodes
This lowers total earth resistance.
Perform Periodic Testing
Ground resistance should be tested every six months.
A solid earthing inspection routine is just as important as installation.
Know more about European Earthing System TN-S TN-C-S TT Explained: Key Differences, Safety, and Standards
Common Earthing Problems in BESS Cabinets
Even good systems can fail if maintenance is poor.
| Problem | Result |
|---|---|
| Loose connections | High resistance heating |
| Corrosion | Poor fault path |
| Broken bonding straps | Unsafe touch voltage |
| High soil resistivity | Ineffective grounding |
| Improper SPD grounding | Surge damage |
Regular thermal scanning and continuity checks help identify these issues.
Inspection Checklist for BESS Earthing
Use this quick checklist during commissioning:
- Check earth busbar tightness
- Verify bonding continuity
- Measure earth resistance
- Inspect cable lugs for corrosion
- Confirm SPD connection integrity
- Test insulation resistance
- Verify battery rack grounding
This checklist ensures Earthing Provision Is Given in BESS Cabinets correctly.
Know more about IEC Standard for Earthing System
Future Trends in BESS Grounding
As battery storage technology grows, grounding systems are also evolving.
Modern improvements include:
- Smart ground monitoring systems
- Continuous leakage current detection
- AI-based fault diagnostics
- Integrated arc fault protection
These technologies improve reliability and system uptime.
Conclusion
Understanding how Earthing Provision Is Given in BESS Cabinets is vital for any electrical engineer, installer, or facility manager. Proper grounding keeps the system stable, protects against fault currents, and reduces fire risks.
A BESS cabinet combines batteries, inverters, and control systems in one enclosure. Each part must be properly bonded and connected to a low-resistance earth network.
Know more about Earth Fault Relay Testing Procedure
By following standards, using quality materials, and performing regular testing, you can build a safer and more reliable battery storage system.
If you want a complete foundation on grounding methods and standards, studying iec 60364 earthing will give you deeper technical clarity.
FAQs
What is the purpose of earthing in BESS cabinets?
Earthing protects people and equipment by providing a safe path for fault current and reducing electric shock risks.
Should the battery negative be grounded in BESS?
It depends on system design. Some systems use solid grounding, while others use floating grounding for safety and monitoring.
What earth resistance is ideal for BESS cabinets?
For industrial BESS, less than 1 ohm is usually preferred for effective protection.
Which standard covers BESS grounding?
IEC 60364, IEC 62485, NEC 250, and IEEE 80 are commonly used.
IEC 60364, IEC 62485, NEC 250, and IEEE 80 are commonly used.
Ground resistance and bonding continuity should be checked at least every six months or during maintenance shutdowns.
