A PVC Electrical Pipe Fill Chart & Table makes it easier to determine how many electrical conductors can be installed in PVC conduit without exceeding the permitted raceway fill. For three or more conductors, the commonly used NEC maximum fill is 40% of the conduit’s internal area. The actual capacity depends on the PVC conduit schedule, trade size, conductor insulation, and conductor outside diameter.

PVC Electrical Pipe Fill Chart

PVC Conduit Size	Approx. Internal Area	40% Fill Area	Example Capacity for 0.20″ OD Conductors*
1/2 in.	0.245 in²	0.098 in²	3
3/4 in.	0.533 in²	0.213 in²	6
1 in.	0.832 in²	0.333 in²	10
1-1/4 in.	1.453 in²	0.581 in²	18
1-1/2 in.	1.986 in²	0.794 in²	25
2 in.	3.356 in²	1.342 in²	42
2-1/2 in.	5.858 in²	2.343 in²	74
3 in.	8.658 in²	3.463 in²	110
3-1/2 in.	11.555 in²	4.622 in²	147
4 in.	14.753 in²	5.901 in²	187

PVC Electrical Pipe Fill Chart

*Illustrative capacity based on a 0.20-inch conductor outside diameter. Actual conductor counts vary with insulation type and manufacturer.

PVC Conduit Fill Limits

Number of Conductors	Maximum Allowable Fill
1 conductor	53%
2 conductors	31%
3 or more conductors	40%
Short nipple ≤24 inches	Up to 60% where permitted

These percentages are based on the applicable raceway-fill rules in NEC Chapter 9, Table 1.

PVC Pipe Fill by Common Conductor Size

Conductor	Typical Application	Fill Calculation Requirement
14 AWG	Lighting and small branch circuits	Use actual conductor area
12 AWG	General-purpose branch circuits	Use actual conductor area
10 AWG	Larger branch circuits	Use actual conductor area
8 AWG	Feeders and larger circuits	Use actual conductor area
6 AWG	Feeders and equipment circuits	Use actual conductor area
4 AWG	Large feeders	Use actual conductor area
2 AWG	Service/feeder applications	Use actual conductor area
1/0 AWG	Large feeders	Use actual conductor area
2/0 AWG	High-current feeders	Use actual conductor area
4/0 AWG	Large service/feeders	Use actual conductor area

Need to verify how many wires can safely fit inside your conduit? Check our detailed Conduit Wire Fill Chart for quick sizing and NEC-based fill guidance.

PVC Electrical Pipe Fill Formula

For three or more conductors:

Allowable Fill Area = PVC Conduit Internal Area × 0.40

Then:

Number of Conductors = Allowable Fill Area ÷ Area of One Conductor

For example, if a PVC conduit has an internal area of 0.832 in²:

0.832 × 0.40 = 0.333 in² allowable fill

If each conductor has an area of 0.0314 in²:

0.333 ÷ 0.0314 ≈ 10 conductors

PVC Electrical Pipe Fill vs. Ampacity

Calculation	Determines	Main Reference
Conduit fill	Physical space inside PVC conduit	NEC Chapter 9
Conductor ampacity	Safe current-carrying capacity	NEC Article 310
Ampacity adjustment	Effect of multiple current-carrying conductors	NEC 310.15(C)
Temperature correction	Effect of ambient temperature	NEC 310.15
Raceway sizing	Required conduit size	NEC Chapter 9

Important: PVC conduit dimensions vary by type and schedule, such as Schedule 40 and Schedule 80. Always use the actual internal diameter of the selected conduit and the actual conductor dimensions. Conduit fill is also separate from ampacity derating, so passing the physical fill calculation does not by itself confirm that the installation complies with all NEC requirements.

Electrical Pipe Fill Chart PVC: A Complete Guide

Table of Contents

If you are planning a new wiring installation or upgrading your current setup, the best approach is to use an electrical conduit size calculator to get accurate sizing. The calculator works hand-in-hand with the pipe fill chart, making the process easier and avoiding costly mistakes.

The National Electrical Code (NEC) sets strict rules about conduit fill, and the electrical pipe fill chart PVC is based on these standards. For PVC, which is one of the most widely used conduit materials, the chart gives a quick view of capacity in terms of percentage fill, number of wires, and conductor sizes.

For a faster way to determine conductor capacity and conduit requirements, use this practical Conduit Wire Fill Chart before finalizing your PVC installation.

Why PVC Conduits Are So Popular in Electrical Work

PVC conduits dominate residential, commercial, and even light industrial wiring because they are non-metallic, easy to handle, and resistant to moisture and most chemicals. Compared to rigid metal conduit (RMC) or intermediate metal conduit (IMC), PVC is lightweight and quicker to install.

One of the strongest advantages of PVC is its smooth inner surface. This reduces friction while pulling wires, which allows longer runs with fewer pull points. Since the electrical pipe fill chart PVC directly relates to the conduit’s inner diameter and smoothness, PVC often allows slightly easier wire handling compared to rougher metal conduits.

Understanding Conduit Fill Percentages

The NEC limits how much of the inside cross-sectional area of a conduit can be filled with conductors. For PVC conduits, the common fill limits are:

53% fill for one conductor
31% fill for two conductors
40% fill for three or more conductors

These percentages are critical because they ensure there is enough space for pulling, and enough air space to avoid overheating. When looking at an electrical pipe fill chart PVC, you’ll notice that it is structured around these limits.

Use our electrical conduit size calculator

Electrical Pipe Fill Chart PVC by Conduit Size

The following table shows common sizes of PVC conduit and the maximum number of conductors based on NEC fill rules. This is a simplified reference, and actual values may vary depending on insulation type (THHN, XHHW, etc.) and exact wire diameter.

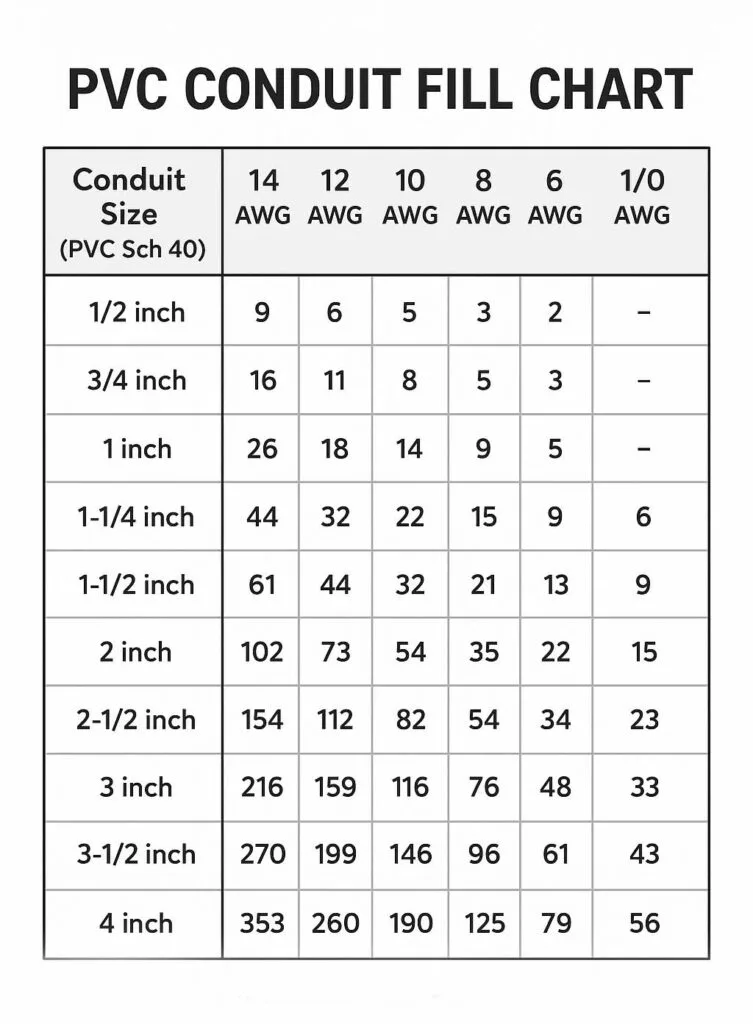

PVC Conduit Fill Chart (Example for THHN Copper Conductors)

Conduit Size (PVC Sch 40)	14 AWG	12 AWG	10 AWG	8 AWG	6 AWG	4 AWG	2 AWG	1/0 AWG	3/0 AWG	500 kcmil
1/2 inch	9	6	5	3	2	–	–	–	–	–
3/4 inch	16	11	8	5	3	2	–	–	–	–
1 inch	26	18	14	9	5	3	2	–	–	–
1-1/4 inch	44	32	22	15	9	6	4	3	2	–
1-1/2 inch	61	44	32	21	13	9	6	5	4	–
2 inch	102	73	54	35	22	15	10	7	6	2
2-1/2 inch	154	112	82	54	34	23	16	12	10	4
3 inch	216	159	116	76	48	33	23	17	14	6
3-1/2 inch	270	199	146	96	61	43	30	22	18	8
4 inch	353	260	190	125	79	56	39	29	24	10

This electrical pipe fill chart PVC helps electricians quickly determine if a given conduit size is enough for their planned wiring.

How to Use the Electrical Pipe Fill Chart PVC

Using the chart is straightforward:

Identify the wire gauge (AWG or kcmil).
Check the planned number of wires of that gauge.
Cross-check with the conduit size column.
Ensure the number of wires is below or equal to the chart value.

For example, if you plan to run 10 AWG wires and expect 12 conductors, a 1-inch conduit is not sufficient (since the limit is 14 but pulling would be very difficult). A 1-1/4 inch PVC conduit would be much better.

Technical Insights on Conduit Fill

A few technical points make the electrical pipe fill chart PVC even more important:

Heat Dissipation: More wires in a smaller conduit mean less space for heat to escape. PVC itself is an insulator, so adequate air gap inside the pipe is necessary.
Pulling Tension: If the conduit is overfilled, pulling wires through long runs becomes almost impossible. This increases the chance of damaging insulation.
Derating of Conductors: NEC requires derating (reducing ampacity) when more than three conductors carry current in a single conduit. The pipe fill chart ensures you plan for this.
Different Insulation Types: THHN wires are thinner than XHHW. That means you can fit more THHN wires into the same conduit size. Always confirm the insulation diameter.

Advantages of Using PVC Conduit with Fill Charts

PVC conduit combined with the pipe fill chart gives several benefits:

Reduces installation mistakes
Ensures compliance with NEC
Improves safety by preventing overheating
Saves cost by avoiding oversizing
Makes planning and inspection easier

Common Mistakes with Conduit Fill

Despite clear guidelines, many electricians still make mistakes. The most common ones include:

Using the outer diameter of the wire instead of the insulation diameter
Forgetting derating when multiple current-carrying wires are used
Ignoring long conduit runs with multiple bends
Over-relying on visual judgment instead of the actual electrical pipe fill chart PVC

Avoiding these mistakes ensures a professional installation that passes inspection and operates safely for decades.

Example Case Study

Let’s consider a commercial shop installation. The electrician needs to run 20 circuits of 12 AWG THHN copper wires. Looking at the chart, 12 AWG has a maximum of 18 wires in a 1-inch PVC conduit. Since 20 wires exceed this, the electrician must choose at least a 1-1/4 inch conduit, which allows up to 32 wires. This simple step ensures the installation complies with NEC and avoids heat buildup.

Conclusion

The electrical pipe fill chart PVC is not just a reference—it is a safety standard that every electrician should follow. By checking the conduit size against the number and size of wires, you ensure smooth pulling, proper heat dissipation, and long-term reliability. For precision in planning, the chart should always be paired with tools like an electrical conduit size calculator to eliminate guesswork.

PVC conduits are the most widely used non-metallic solution for wiring, but even the best conduit fails if it is overfilled. With the right chart, calculator, and careful planning, your installation will be both safe and cost-efficient.
