Power Cable Tray Bending Radius Regulations
Power cable installations inside trays must follow strict bending requirements to protect insulation, conductor integrity, and long-term electrical performance. In industrial, commercial, and utility projects, improper tray bends can create stress points that reduce cable life and increase failure risks.
Understanding Power Cable Tray Bending Radius Regulations is essential for engineers, electricians, and inspectors. These rules ensure safe routing, maintain ampacity, and help meet installation standards.
When planning tray layouts, installers often refer to the electrical cable bending radius to determine proper turning space. This becomes even more critical for large-diameter power cables used in substations, manufacturing plants, and power distribution systems.
Table of Contents
Table of Contents
This guide explains the major standards, inspection requirements, and compliance factors.
What Regulations Govern Power Cable Tray Bending Radius?
Cable tray bending radius is regulated through multiple international and national electrical standards. While tray manufacturers design fittings according to standard dimensions, the actual cable bend radius depends on cable construction, insulation type, and voltage class.
See our comprehensive guide on cable bending radius iec standard
The main standards include:
| Standard | Region | Purpose |
|---|---|---|
| IEC 60502 | International | Power cable installation and bending limits |
| IEC 60364 | International | Electrical installation safety |
| BS 7671 | United Kingdom | Wiring regulations |
| NEC Article 392 | United States | Cable tray installation rules |
| NEMA VE 2 | United States | Cable tray installation practices |
These standards define:
- Minimum bend radius for power cables
- Tray fitting radius requirements
- Installation clearances
- Mechanical stress limitations
- Inspection procedures
In many industrial installations, engineers use a cable bending radius calculator before selecting tray elbows and bends to avoid non-compliance. Know more about Wire Bending Radius NEC
IEC Requirements for Power Cable Tray Bends
IEC standards are among the most widely followed regulations for power cable tray systems. IEC 60502 specifically covers power cables from 1kV to 30kV and outlines minimum bending radius requirements.
The standard usually defines bending radius as a multiple of cable diameter.
Typical IEC Bend Radius Requirements
| Cable Type | Minimum Bend Radius |
|---|---|
| Single-core XLPE | 15 × cable diameter |
| Multi-core XLPE | 12 × cable diameter |
| Armoured cables | 15 × cable diameter |
| PVC insulated cables | 12 × cable diameter |
For example:
If a cable diameter is 40mm and the standard requires 15D:
Minimum bend radius = 40 × 15 = 600mm
This means any tray elbow must provide at least 600mm centerline radius.
Find all about 11kV Cable Bending Radius
IEC also requires:
- No sharp bending during pulling
- Proper support spacing near bends
- Avoiding torsional stress
- Maintaining cable separation for heat dissipation
Failure to comply can affect insulation resistance and dielectric strength.

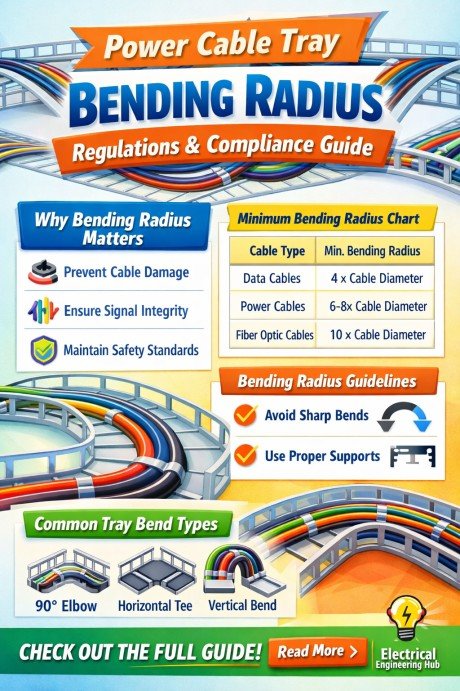

Power Cable Tray Bending Radius Regulations
BS 7671 & UK Regulations on Cable Tray Bending
In the UK, BS 7671 regulates electrical installations and aligns closely with IEC standards. It does not always specify exact tray bend values but requires following manufacturer instructions and preventing cable damage.
Regulation 522.8 focuses on mechanical stress during installation.
Important compliance points include:
Mechanical Protection
Cables must be installed so that bending does not damage conductors or sheathing.
Manufacturer Data Compliance
BS 7671 requires installers to use manufacturer bend radius recommendations.
Use our online tool HV Cable Bending Radius Calculator
Space Factor
Cable trays must allow enough space for proper routing without forced bending.
Thermal Management
Overcrowded trays can increase heat buildup and reduce cable current-carrying capacity.
UK Practical Example
| Cable OD | Standard Radius | Recommended Tray Elbow |
|---|---|---|
| 25mm | 300mm | 300R bend |
| 35mm | 420mm | 450R bend |
| 50mm | 600mm | 600R bend |
This ensures both compliance and easier future maintenance.
NEC Requirements for Cable Tray Bend Radius
In the United States, NEC Article 392 governs cable tray systems. NEC itself often references cable manufacturer specifications for exact bend radius values.
NEC focuses on:
- Installation methods
- Cable support
- Fill limitations
- Tray mechanical integrity
Use our free online tool Cable Bending Radius Calculator
NEC Bend Rules
For medium-voltage cables, NEC Article 392.24 states that cable trays must provide enough room to maintain the minimum bending radius.
NEC generally follows:
| Cable Type | Common Bend Factor |
|---|---|
| Shielded MV cable | 12 × OD |
| Single conductor | 8 × OD |
| Multi-conductor | 7 × OD |
Key NEC considerations:
Horizontal Bends
Tray elbows must match cable pull tension requirements.
Vertical Bends
Special radius fittings may be required.
Pulling Tension
Bend radius directly affects pulling sidewall pressure.
Cable Fill
Excess fill can force tighter bends and violate standards.
Using an electrical cable bending radius reference during design can reduce NEC compliance issues.
Compliance & Inspection Checklist
Before energizing any installation, inspectors verify tray bend compliance.
Use this checklist:
| Inspection Item | Check Required |
|---|---|
| Cable diameter verified | Yes |
| Manufacturer bend radius checked | Yes |
| Tray elbow radius measured | Yes |
| Cable support near bends installed | Yes |
| No visible sheath damage | Yes |
| Fill percentage within limits | Yes |
| Separation between circuits maintained | Yes |
| Pulling tension documented | Yes |
Find all about Busbar Bending Calculation
Field Inspection Tips
- Measure tray elbow centerline radius
- Compare against cable datasheet
- Check for flattening or deformation
- Inspect cable ties for excessive pressure
- Verify proper spacing
Many contractors now use digital tools like a cable bending radius calculator to simplify inspections.
Consequences of Non-Compliant Bend Radius
Ignoring bending regulations can cause serious technical and legal problems.
Cable Insulation Damage
Tight bends can crack insulation layers.
Conductor Stress
Repeated stress weakens conductor strands.
Reduced Service Life
Mechanical damage often causes early cable failure.
Increased Heat Build-Up
Compressed cable geometry reduces heat dissipation.
Failed Inspection
Regulatory inspectors may reject installations.
Warranty Void
Manufacturers may deny claims if bending rules were ignored.
Follow the comprehensive guide on Cable Tray Bending Radius
Real-World Failure Example
| Issue | Result |
|---|---|
| Tight tray elbow | Insulation crack |
| Overpull tension | Core deformation |
| Sharp vertical drop | Armour separation |
| Forced tray fit | Premature failure |
A single non-compliant bend can cause thousands of dollars in downtime.
Regulatory Reference Table by Standard
This table provides a quick comparison of major standards.
| Standard | Bend Radius Method | Main Application |
|---|---|---|
| IEC 60502 | Diameter multiplier | LV and MV power cables |
| IEC 60364 | Safety-based installation | General electrical systems |
| BS 7671 | Manufacturer based | UK wiring installations |
| NEC Article 392 | Performance based | Cable trays in USA |
| NEMA VE 2 | Installation guide | Tray layout and bends |
Follow our guide on bending radius of armoured cable
Frequently Asked Questions
What are the regulations for cable tray bending radius?
Cable tray bending radius regulations are mainly based on cable manufacturer data and standards like IEC 60502, NEC Article 392, and BS 7671. Most require bend radius between 8 and 15 times cable diameter.
Is cable tray bend radius regulated by IEC or NEC?
Yes. IEC regulates bend radius using fixed diameter multipliers, while NEC focuses on maintaining manufacturer minimum bend limits within tray systems.
What happens if cable tray bend radius doesn’t meet minimum standards?
Non-compliance can lead to insulation damage, conductor stress, overheating, failed inspections, and shortened cable life.
Who inspects cable tray bend radius compliance?
Electrical inspectors, commissioning engineers, safety auditors, and project consultants usually verify bend radius compliance before system energization.
Quickly calculate bending radius using our guide on cable bending radius rule of thumb
Proper understanding of Power Cable Tray Bending Radius Regulations helps prevent expensive failures and ensures safe, long-lasting cable installations. Whether following IEC, NEC, or BS 7671, maintaining correct bend radius is one of the most important parts of tray design and installation.
