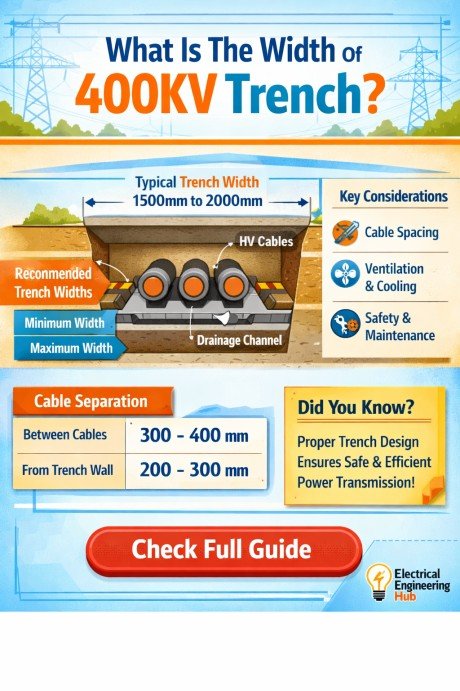

What Is The Width Of 400KV Trench?
When planning underground high-voltage transmission systems, one of the most important questions engineers ask is about the Width Of 400KV Trench. This factor directly affects cable installation, heat dissipation, maintenance access, and overall project safety.
A 400kV cable trench is not a standard small utility trench. It is a specialized civil structure designed to carry extra-high-voltage power cables with proper spacing, bedding, and thermal considerations. The trench width depends on several technical factors, including the number of circuits, cable diameter, spacing requirements, and soil conditions.
Table of Contents
Table of Contents
In most cases, the Width Of 400KV Trench ranges between 1.5 meters to 3 meters for a single circuit. However, it can become wider for double circuits or when additional communication and grounding cables are installed.
For Accurate and Easy Cable Capacity, use our online tool Cable Trench Fill Calculator
Understanding these dimensions helps engineers optimize cable life, avoid overheating, and maintain compliance with IEC and utility standards.
Why Width Matters in a 400kV Cable Trench
The trench width is not only about fitting the cables. It plays a major role in system reliability.
A properly designed trench ensures:
- Safe cable separation
- Better heat dissipation
- Easier installation work
- Future maintenance access
- Reduced mechanical stress
- Compliance with utility standards
For extra-high-voltage cables like 400kV, thermal performance is critical. If the trench is too narrow, cable temperature rises, reducing ampacity.
This is why Width Of 400KV Trench is carefully calculated during the design stage.
Discover our Electrical Cable Sizing Tools, a great resource for all types of cable calculations. It includes cable calculators for generators, transformers, earthing, and more.
Standard Width Of 400KV Trench
The standard trench width varies based on cable arrangement.
Here is a general reference table:
| Installation Type | Typical Width |
|---|---|
| Single Circuit Trefoil | 1.5m – 2.0m |
| Single Circuit Flat Formation | 1.8m – 2.5m |
| Double Circuit Flat Formation | 2.5m – 3.5m |
| With Spare Ducts | 3.0m – 4.0m |
These values are based on practical field installations and utility engineering guidelines.
The Width Of 400KV Trench increases if the project includes:
- Fiber optic cables
- Ground continuity conductors
- Spare ducts
- Drainage systems
Factors Affecting Width Of 400KV Trench
Several technical elements decide the final trench size.
Number of Cable Circuits
A single circuit requires less width compared to a double circuit.
For example:
| Circuits | Approximate Width |
|---|---|
| 1 Circuit | 1.5m – 2.5m |
| 2 Circuits | 2.5m – 4.0m |
More circuits need greater spacing.
Designing electrical system? Use this clearance and creepage calculator for accurate distances
Cable Formation
The cable arrangement changes trench dimensions.
Common formations include:
- Trefoil formation
- Flat formation
Trefoil uses less trench width but has different thermal characteristics. Flat formation usually needs more width.
Cable Diameter
400kV XLPE cables are large in diameter, often ranging from 120mm to 180mm depending on conductor size.
Larger cable diameter means larger trench width.
Thermal Backfill Requirements
Thermal sand or special backfill materials improve heat transfer.
These materials need enough side clearance, affecting Width Of 400KV Trench.
Utility Standards
Different transmission companies have their own specifications. Some require additional margins for safety.
Typical 400kV Trench Cross-Section
A standard 400kV trench usually consists of:
| Layer | Typical Thickness |
|---|---|
| Bottom Sand Bedding | 150mm |
| Cable Layer | Based on cable size |
| Top Sand Cover | 150mm |
| Protective Tiles | 50mm |
| Warning Tape | 300mm above cable |
| Final Soil Backfill | Remaining depth |
Use this tool if you are trying to calculate cable size for underground cables. Try here Underground Cable Size Calculator – Find Correct Wire Size for Long Distance Runs
The trench width must accommodate all these layers along with side clearances.
For proper underground infrastructure planning, understanding Cable Trench Design principles is essential before finalizing dimensions.
Recommended Spacing Inside the Trench
Spacing is as important as width.
Typical spacing values:
| Parameter | Recommended Value |
|---|---|
| Cable-to-cable spacing | 300mm – 500mm |
| Cable-to-wall clearance | 250mm – 400mm |
| Circuit-to-circuit spacing | 500mm – 1000mm |
These values ensure adequate heat dissipation and reduce electromagnetic interference.
If spacing increases, Width Of 400KV Trench also increases.
We recommend this tool for anyone struggling with the sizing of subpanels. Try here Wire Size Calculator for Subpanels and Feeders – NEC Guidelines Included
Key Takeaways
Before designing a 400kV trench, keep these points in mind:
- Standard trench width starts from 1.5 meters.
- Flat formation usually needs more width than trefoil.
- Cable spacing directly affects thermal performance.
- Utility requirements may increase trench dimensions.
- Future expansion should be considered during planning.
- Proper trench width improves cable lifespan and safety.
These points can save time and cost during construction.
Practical Example of 400kV Trench Width Calculation
Suppose you have:
- 3 single-core cables
- Cable diameter = 150mm
- Flat formation
- Cable spacing = 400mm
- Wall clearance = 300mm each side
Calculation:
Total width = (3 × 150) + (2 × 400) + (2 × 300)
Total width = 450 + 800 + 600
Total width = 1850mm
So the practical Width Of 400KV Trench will be around 1.85 meters.
Check out this tool that makes the process much easier and faster MM to AWG Wire Size Calculator According to IEC and NEC
This may increase to 2 meters after considering construction tolerance.
During actual installation, following proper Laying Cable procedures is equally important to prevent cable damage.
Common Mistakes in 400kV Trench Design
Engineers sometimes make design mistakes that impact performance.
Common issues include:
- Insufficient trench width
- Ignoring thermal resistivity
- Poor cable spacing
- No provision for drainage
- Lack of spare ducts
- Inadequate warning layers
Avoiding these mistakes improves reliability.
International Standards for 400kV Trenches
There is no single universal width standard, but these references are widely used:
- IEC 60287 for cable ampacity
- IEC 61936 for power installations
- Utility-specific transmission standards
- National electrical codes
These standards guide trench width, depth, and spacing.
The Width Of 400KV Trench should always align with project-specific load and environmental conditions.
Use our online tool for free Wire Size Calculator for Motors – Accurate Motor Cable Sizing Tool for Electric Loads
Conclusion
The Width Of 400KV Trench is a critical design parameter in underground transmission systems. It affects thermal performance, safety, installation ease, and maintenance access.
For a single circuit, the width typically ranges from 1.5 to 3 meters depending on cable arrangement and spacing. Double circuits and future expansion can increase this significantly.
A well-designed trench supports long cable life and efficient operation. Engineers should always consider cable size, formation, spacing, and utility requirements before finalizing the trench layout.
Accurate trench sizing reduces failures and ensures compliance with modern power transmission standards.
Access our powerful online calculator now Electrical Diversity Calculator for accurate Load Estimation and efficient electrical Design.
FAQs
What is the minimum Width Of 400KV Trench?
The minimum width is usually around 1.5 meters for a single trefoil arrangement, but it depends on cable size and spacing.
Which cable formation needs less trench width?
Trefoil formation usually requires less trench width compared to flat formation.
Does trench width affect cable ampacity?
Yes, improper width can reduce heat dissipation and lower cable ampacity.
Can spare ducts be added in a 400kV trench?
Yes, many utilities add spare ducts for future expansion, increasing trench width.
Is there a fixed IEC standard for Width Of 400KV Trench?
No fixed width exists. IEC provides design principles, but final dimensions depend on project requirements.
