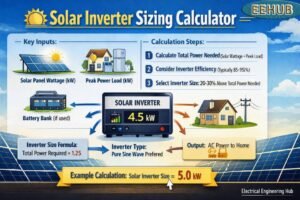

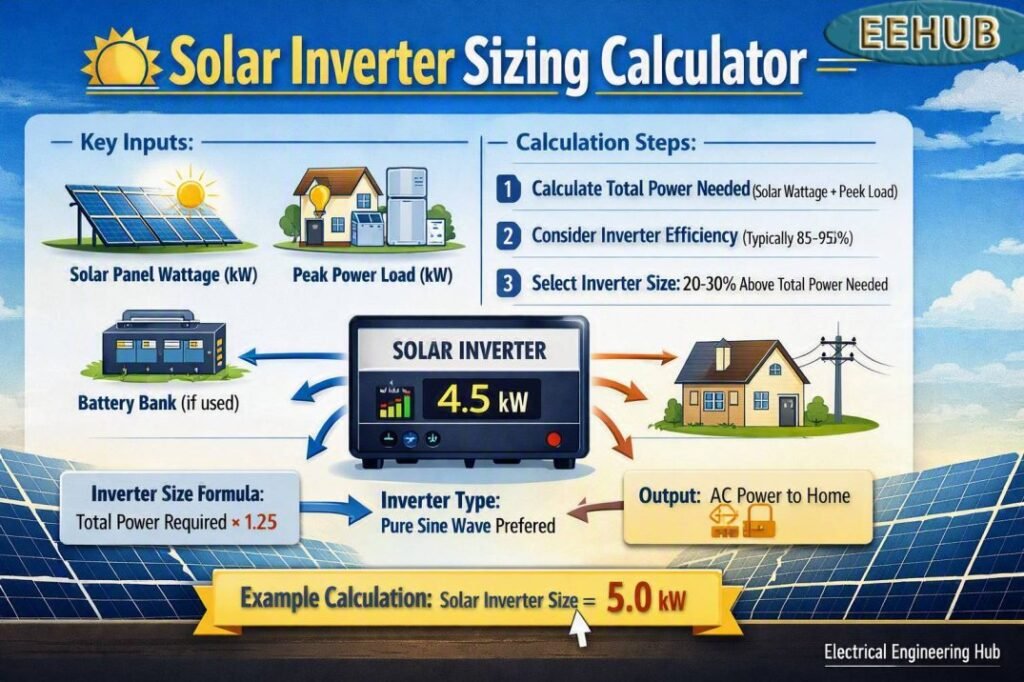

Solar Inverter Sizing Calculator: Important Guide

| | |

When designing a solar power system, selecting the right inverter is crucial. An incorrectly sized solar inverter can lead to inefficiency, wasted power, and additional costs. This comprehensive guide will walk you through solar inverter sizing, explain its importance, and help you understand how to use a solar inverter sizing calculator effectively.

Solar Inverter Sizing Calculator: A Quick Guide
Solar Inverter Sizing Calculator: A Quick Guide
Table of Contents

Solar Inverter Sizing calculator

Use Below Solar Inverter Sizing calculator by just entering the two factors Load in kilo-watts and the safety factor which must be considered during inverter sizing.

What Is a Solar Inverter and Why Is Sizing Important?

A solar inverter is the device that converts the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity, which can be used by your home appliances. Correctly sizing your solar inverter ensures that your solar power system operates efficiently and safely.

The size of the inverter for solar power depends on the total capacity of your solar panels (in kilowatts, kW) and their expected output under typical conditions. Using an improperly sized inverter can lead to:

  • Power clipping (when the inverter cannot process all the power generated by the panels).
  • Reduced efficiency of the overall system.
  • Potential damage to the inverter or other system components.

How to Size a Solar Inverter

Sizing a solar inverter involves understanding the power capacity of your solar panels, your power consumption needs, and other environmental factors. Here are the key steps:

Calculate the Total DC Capacity of Your Solar Panels:
Add up the wattage ratings of all your solar panels. For instance, if you have 20 panels, each rated at 500 watts, the total DC capacity is:

Total capacity = 20 x 500 = 10,000 watts or 10 kW

Determine the Inverter Sizing Ratio:
The industry standard suggests that the inverter’s capacity should be between 80% to 125% of the solar panels’ capacity. For example, if your panels generate 10 kW:

Minimum inverter size = 10,000 x 0.8 = 8 kW

Maximum inverter size = 10,000 x 1.25 = 12.5 kW

Consider Local Conditions and Power Requirements:
Environmental factors, such as shading, temperature, and system losses, should also be factored in. Many people use a solar inverter sizing calculator to simplify this process and account for these variables.

What Size Inverter Do I Need for Solar Panels?

Choosing the right inverter depends on the system’s capacity. Below is a guide for common system sizes:

Solar System Size (kW)Inverter Size (kW)
5 kW4 kW to 6.25 kW
10 kW8 kW to 12.5 kW
15 kW12 kW to 18.75 kW
20 kW16 kW to 25 kW

For a 10 kW solar system, an inverter size between 8 kW to 12.5 kW is typically recommended. However, specific requirements may vary based on panel performance, location, and daily energy usage.

Factors to Consider When Sizing a Solar Inverter

DC to AC Ratio:
A ratio of 1.0 means the inverter matches the solar panel capacity exactly. Ratios of 1.1 to 1.2 are often used to maximize energy production without exceeding the inverter’s capacity during peak hours.

Peak Power Output:
Ensure the inverter can handle peak power surges, especially during midday when solar panels generate the most energy.

Grid-Connection Requirements:
For grid-tied systems, the inverter should meet local regulations regarding power export and grid synchronization.

Battery Storage (If Applicable):
If you use batteries, ensure the inverter supports battery integration and charging capabilities.

How Many Inverters Do I Need for Solar Panels?

The number of inverters you need depends on the system design:

  • For small systems (less than 5 kW), a single inverter is usually sufficient.
  • For larger systems, multiple inverters or a string inverter with optimizers may be required.

Using a solar inverter sizing chart can help determine whether a single or multiple inverters are needed based on your panel configuration and output.

What Size Solar Inverter Do I Need?

To answer this question, consider these key points:

System Size: A 10 kW solar system typically needs an inverter between 8 kW and 12.5 kW.

Inverter Efficiency: Choose an inverter with a high efficiency rating (typically 95% or higher) for maximum energy conversion.

Power Usage: Analyze your daily energy consumption to ensure the inverter matches your household or business needs.

Sizing Inverter for Solar Systems: A Practical Example

Imagine you have a 15 kW solar power system installed on your roof. Using the 80%-125% sizing rule:

  • Minimum inverter size = 15 x 0.8 = 12 kW
  • Maximum inverter size = 15 x 1.25 = 18.75 kW

If your location experiences significant shading or temperature variations, you might select an inverter closer to 18 kW to handle peak output.

Solar Inverter Sizing Chart

Here’s a quick reference chart:

Solar Panel Capacity (kW)Recommended Inverter Size (kW)
32.4 to 3.75
54 to 6.25
108 to 12.5
2016 to 25
3024 to 37.5

PV Inverter Size and Sizing of Inverter

The PV inverter size must align with the solar array’s capacity and the energy demands of your system. Sizing of the inverter also considers other factors, such as power losses, grid connection rules, and environmental conditions.

FAQs on Solar Inverter Sizing Calculator

1. What is a solar inverter sizing calculator?

A solar inverter sizing calculator is a tool used to determine the appropriate size of a solar inverter for your solar power system based on the total power consumption of connected appliances and the size of your solar panel array. It ensures the inverter can handle the peak loads efficiently.

2. How do I calculate the size of a solar inverter for my system?

To calculate the size of a solar inverter, use this formula:
Inverter Size (kW) = Total Load Power (kW) / Inverter Efficiency (%)
For example, if your total load is 5 kW and inverter efficiency is 90%, the inverter size should be:
5 ÷ 0.9 = 5.55 kW. Choose an inverter with a slightly higher capacity, such as 6 kW.

3. Should the inverter size match the solar panel capacity?

Ideally, the inverter size should match or slightly exceed the total capacity of the solar panels. For example, if you have a 5 kW solar panel array, a 5-6 kW inverter is recommended. Oversizing or undersizing can reduce system efficiency.

4. Can I use a smaller inverter for a larger solar array?

Yes, but this is called “inverter clipping,” where the inverter limits the output during peak production. While this might be cost-effective, it can result in energy loss during sunny days when the panels generate more power than the inverter can handle.

5. How do I calculate the load requirements for the inverter?

List all the appliances you want to power, note their wattages, and sum them up. Include any peak load appliances (like air conditioners or motors). Ensure the inverter can handle both the total load and the peak surge.

6. Do I need to consider the inverter’s efficiency in sizing?

Yes. Inverters are not 100% efficient, with most being around 90-98%. Factor in efficiency when calculating size to ensure it can meet the power demand. For example, if your total load is 4 kW and the inverter’s efficiency is 95%, you need an inverter rated at least 4 ÷ 0.95 = 4.21 kW.

7. Can I use a single inverter for both off-grid and grid-tied systems?

Hybrid inverters are designed for this purpose. They can manage both off-grid and grid-tied operations, allowing you to use grid power when solar energy is insufficient and store excess energy in batteries.

8. What happens if my inverter is undersized?

An undersized inverter will limit the power output of your solar panels, causing energy wastage during peak production hours. It may also fail to handle peak loads, resulting in system inefficiencies or inverter failure.

9. What is the difference between continuous and surge power for inverters?

Continuous Power: The maximum power the inverter can handle over an extended period.
Surge Power: The short-term power an inverter can handle (e.g., when appliances like refrigerators or pumps start). Always ensure the inverter can support the surge power of your appliances.

10. How do I size an inverter for a battery-based solar system?

For battery-based systems, consider both the total load and the battery voltage. Use this formula:
Inverter Size (W) = Total Load Power (W) ÷ Battery Voltage (V)
For example, if the total load is 2000W and the battery bank is 24V, the inverter size should be:
2000 ÷ 24 = 83.33 A. Choose an inverter rated for this power with a matching voltage.

By understanding the principles of solar inverter sizing and utilizing tools like a solar inverter sizing calculator, you can ensure your solar system operates efficiently and meets your energy needs. Use this guide to confidently choose the right inverter for your system.
