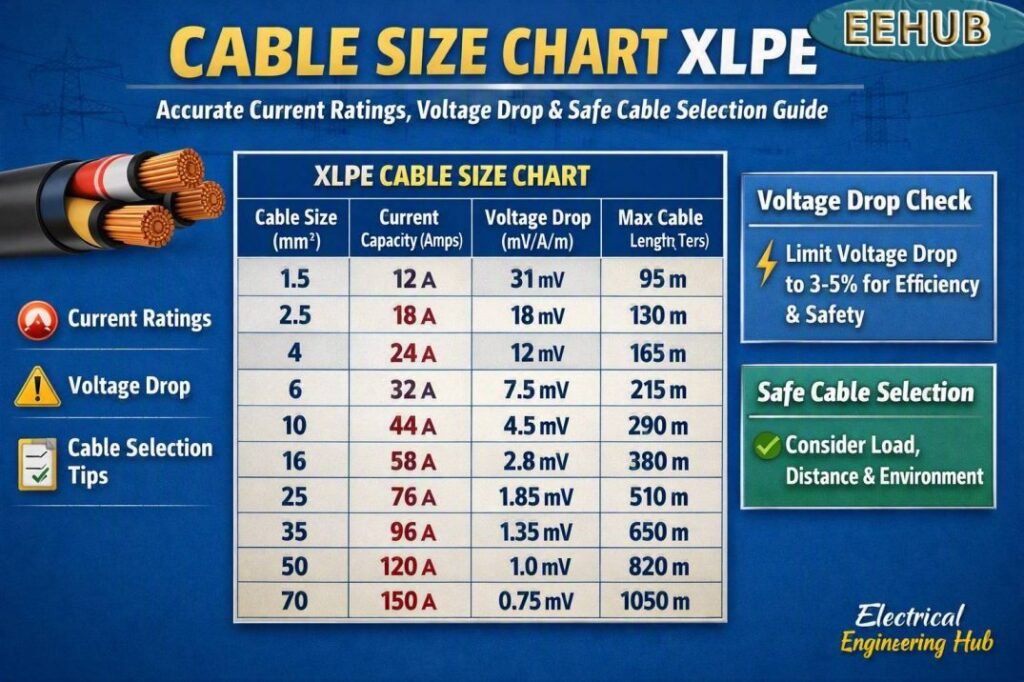

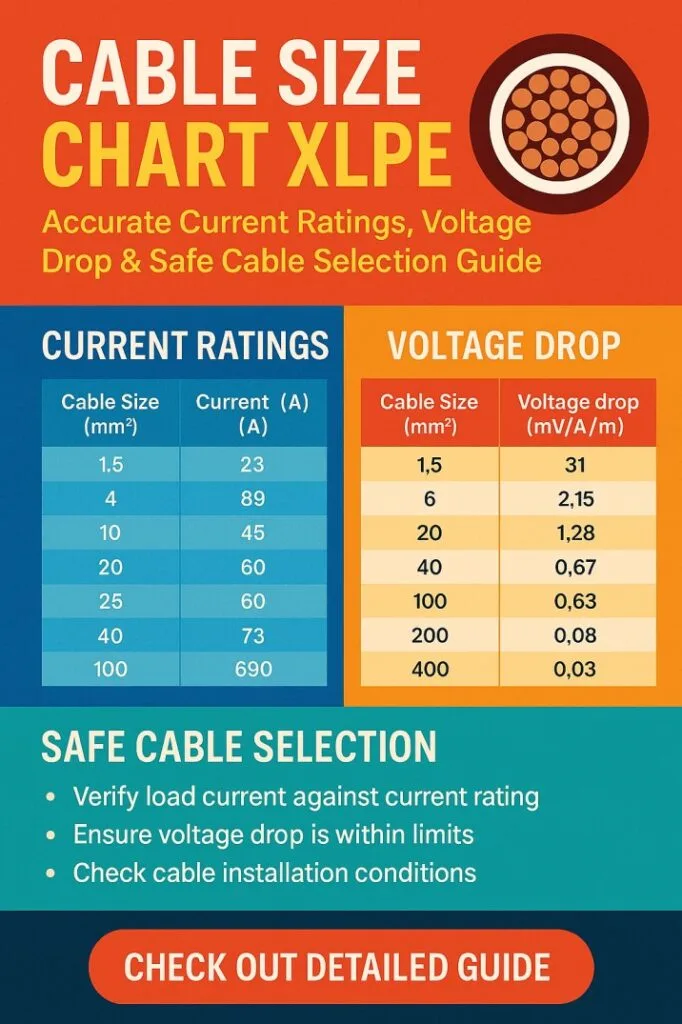

Cable Size Chart XLPE: Accurate Current Ratings, Voltage Drop & Safe Cable Selection Guide
Selecting the correct power cable is one of the most important decisions in any electrical installation. An undersized cable overheats, wastes energy, and creates fire risk. An oversized cable increases project cost without real benefit. This is where a cable size chart xlpe becomes a practical tool for engineers, electricians, and designers who want safe and efficient systems.
Table of Contents
Table of Contents
XLPE stands for cross-linked polyethylene. It is widely used as insulation in low and medium voltage cables because it handles higher temperatures, has excellent electrical strength, and resists moisture and chemicals. When using a cable size chart xlpe, you are working with current ratings based on these improved insulation properties.
Understanding how to read and apply the chart correctly helps you balance three key factors: current carrying capacity, voltage drop, and installation conditions. Ignoring even one of these can lead to poor performance and safety issues.
XLPE Cable Size Selection for Common Applications
XLPE (Cross-Linked Polyethylene) cables are designed for continuous operation at conductor temperatures up to 90°C, making them suitable for higher current loads than standard PVC-insulated cables. They are commonly installed in power distribution systems, industrial plants, commercial buildings, solar installations, and underground feeders.
The values below are typical application ranges and should always be confirmed using derating factors, installation method, ambient temperature, cable grouping, and applicable standards such as IEC 60364, BS 7671, or the NEC.
| XLPE Cable Size (mm²) | Approx. Current Rating (A)* | Typical Voltage Level | Common Applications |
|---|---|---|---|
| 1.5 | 18–20 | 230/400 V | Lighting circuits, control wiring |
| 2.5 | 24–30 | 230/400 V | Socket outlets, small appliances |
| 4 | 32–40 | 230/400 V | Lighting feeders, small motors |
| 6 | 40–50 | 230/400 V | Air conditioners, water heaters, EV charging circuits |
| 10 | 55–70 | 230/400 V | Distribution boards, sub-feeders |
| 16 | 70–90 | 400 V | Main feeders, commercial loads |
| 25 | 95–120 | 400 V | Industrial machinery, large HVAC systems |
| 35 | 120–150 | 400 V | Factory distribution panels, solar AC feeders |
| 50 | 150–180 | 400/690 V | Industrial power distribution |
| 70 | 190–230 | 400/690 V | Large motors, transformer connections |
| 95 | 230–280 | 400/690 V | Heavy industrial feeders |
| 120 | 270–320 | 400/690 V | High-capacity distribution networks |
| 150 | 310–360 | 400/690 V | Commercial and industrial substations |
| 185 | 350–420 | 400/690 V | Large generators, transformer feeders |
| 240 | 420–500 | 400/690 V | High-current industrial distribution |
| 300 | 500–580 | 400/690 V | Utility feeders and large power systems |
*Note: Current ratings are approximate and vary with installation method (air, conduit, tray, or buried), conductor material (copper or aluminum), ambient temperature, cable grouping, and applicable standards.
Need to size cables according to the latest UK wiring regulations? Explore our BS7671 Cable Sizing guide for compliant cable selection methods, voltage drop limits, and practical examples.
XLPE Cables Current Carrying Capacity
Current carrying capacity, also called ampacity, is the maximum current a cable can carry continuously without exceeding its temperature rating. A cable size chart xlpe lists this value for different conductor sizes and installation methods.
Ampacity depends on more than just conductor area. It also depends on how the cable is installed. Cables in free air cool better than cables buried in soil or grouped in trays. That is why the same cable size shows different current ratings under different conditions.
Below is a simplified reference table for copper XLPE cables installed in air at 30°C ambient temperature.
| Conductor Size (mm²) | Approx. Current Rating (A) | Typical Use Case |
|---|---|---|
| 1.5 | 19 | Lighting circuits |
| 2.5 | 26 | Socket circuits |
| 4 | 35 | Small motors |
| 6 | 46 | AC units |
| 10 | 63 | Distribution boards |
| 16 | 85 | Submains |
| 25 | 114 | Large loads |
| 35 | 141 | Small feeders |
| 50 | 176 | Main feeders |
These values come from typical data found in a cable size chart xlpe, but always verify with manufacturer data and local standards.
XLPE Cable Temperature Rating
The XLPE cable temperature rating is one of the key factors that determines the cable’s current-carrying capacity, insulation life, and overall safety. Cross-linked polyethylene (XLPE) insulation can withstand higher operating temperatures than PVC, making it ideal for industrial, solar, and power distribution systems.
| Operating Condition | XLPE Temperature Rating |
|---|---|
| Normal Continuous Operation | 90°C |
| Emergency Overload | 130°C |
| Short Circuit (up to 5 sec) | 250°C |
Higher temperature ratings allow XLPE cables to carry more current without excessive insulation damage. For accurate conductor selection, refer to our complete Cable Size Chart XLPE guide, which includes ampacity, voltage drop, and standard cable sizing calculations.
XLPE cable current ratings are only one part of safe design. Learn how to apply BS7671 Cable Sizing principles to choose the correct cable for every installation with confidence.
Why XLPE Cables Are Preferred in Modern Installations
XLPE insulated cables can operate at higher conductor temperatures than PVC cables. Typical continuous operating temperature is 90°C, compared to 70°C for standard PVC. This allows more current to flow through the same conductor size. A cable size chart xlpe reflects this higher thermal limit, which is why XLPE cables often appear to carry more current than PVC cables of equal cross section.
Another advantage is better short circuit withstand capability. During a fault, conductors heat up rapidly. XLPE insulation tolerates higher short duration temperatures, which improves system reliability. For industrial plants, substations, and commercial buildings, this is a major benefit.
Moisture resistance is also stronger. In underground and outdoor installations, this improves cable life. When engineers refer to a cable size chart xlpe, they are not only selecting for current but also for long term durability.
The Role of Installation Conditions
Installation method has a direct impact on cable heating. A cable buried in soil cannot release heat as easily as one clipped on a wall. Grouped cables also trap heat.
Correction factors are used to adjust the base current rating from the cable size chart xlpe. These factors account for ambient temperature, soil thermal resistivity, grouping, and depth of burial.
| Condition | Typical Correction Factor |
|---|---|
| Ambient 40°C instead of 30°C | 0.91 |
| 3 cables grouped together | 0.80 |
| Buried in soil with high resistivity | 0.85 |
To find the effective current rating, multiply the base ampacity by all relevant correction factors. This step is often missed and leads to undersized cables.
Voltage Drop and Why It Matters
Even if a cable can carry the required current, it may still be unsuitable if voltage drop is too high. Excessive voltage drop reduces equipment performance and increases energy loss. A cable size chart xlpe helps you choose a conductor size that keeps voltage drop within limits.
Voltage drop depends on current, cable length, conductor resistance, and power factor. Longer runs need larger cables. Motors and sensitive electronics are especially affected by low voltage at the load end.
Here is a typical voltage drop reference for copper conductors.
| Conductor Size (mm²) | Voltage Drop (mV/A/m) |
|---|---|
| 2.5 | 18 |
| 4 | 11 |
| 6 | 7.3 |
| 10 | 4.4 |
| 16 | 2.8 |
| 25 | 1.75 |
Using data from a cable size chart xlpe, you can calculate voltage drop with this formula:
Voltage Drop (V) = mV/A/m × Current × Length / 1000
For example, a 40 A load on a 25 m run using 6 mm² cable:
Voltage Drop = 7.3 × 40 × 25 / 1000 = 7.3 V
In a 230 V system, this is about 3.2%, which may be acceptable depending on local codes.
For complete compliance beyond XLPE cable charts, visit our BS7671 Cable Sizing guide covering cable calculations, installation methods, correction factors, and voltage drop requirements.
Short Circuit Considerations
Short circuit rating is another key factor in cable selection. During a fault, very high current flows for a short time. The conductor must survive this without damage. A cable size chart xlpe is often supported by short circuit tables that show the maximum fault current a cable can withstand for a given duration.
Larger conductors handle higher fault currents. This is important near transformers, generators, and main distribution boards where fault levels are high.
Practical Steps for Safe Cable Selection
Using a cable size chart xlpe becomes easier when you follow a clear process. First, determine the design load current. Include future expansion where possible. Second, select a cable size with ampacity higher than the load current after applying correction factors.
Third, check voltage drop for the selected size and length. If the drop exceeds limits, increase the conductor size. Fourth, verify short circuit rating based on system fault level and protection device clearing time.
Finally, confirm compliance with local electrical standards and manufacturer data. A cable size chart xlpe is a guide, but final responsibility lies with the designer.
Common Mistakes to Avoid
One common mistake is choosing cable size based only on current. This ignores voltage drop and installation conditions. Another error is forgetting grouping derating in cable trays. This often leads to overheating in panel rooms.
Some installers also assume all insulation types have the same ratings. Using a cable size chart xlpe ensures you are using values specific to XLPE insulation, not PVC or rubber.
Conclusion
Correct cable sizing is a balance between safety, performance, and cost. XLPE cables provide higher temperature ratings, better durability, and strong electrical performance. By using a cable size chart xlpe correctly, you can select cables that handle current safely, maintain acceptable voltage levels, and withstand fault conditions.
Whether you are designing a small building installation or a large industrial feeder, understanding how to interpret the cable size chart xlpe will help you build systems that are efficient, reliable, and compliant with modern electrical standards.
