Best Multimeter for Automotive Electrical Troubleshooting Under $100
Finding the best multimeter for automotive electrical troubleshooting under 100 dollars means choosing a meter that can handle more than basic voltage checks. You need reliable continuity testing, resistance measurement, DC voltage readings, and safe current measurement for diagnosing batteries, fuses, relays, wiring faults, and charging systems.
As an electrical engineer with hands-on experience in electrical panels, automation, and fault diagnosis, I look for three things in a troubleshooting meter: dependable readings, practical test functions, and suitable safety protection. You do not need an expensive laboratory meter for every garage job, but you should choose one that matches the circuits you plan to test.

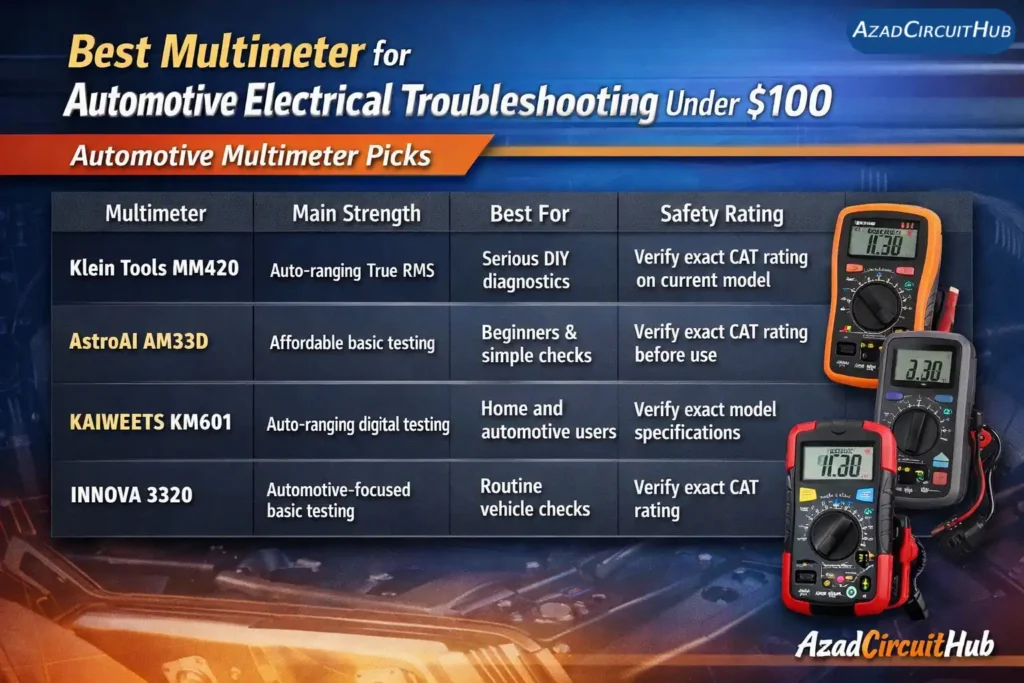

Best Automotive Multimeters Under $100: Quick Comparison
| Multimeter | Main Strength | Best For | Safety Rating |
|---|---|---|---|
| Klein Tools MM420 | Auto-ranging True RMS | Serious DIY diagnostics | Verify exact CAT rating on current model |
| AstroAI AM33D | Affordable basic testing | Beginners and simple checks | Verify exact CAT rating before use |
| KAIWEETS KM601S | Auto-ranging digital testing | Home and automotive users | Verify exact model specifications |
| INNOVA 3320 | Automotive-focused basic testing | Routine vehicle checks | Verify exact CAT rating |
Prices vary by seller, promotions, and model revisions. Check the current Amazon listing for the exact specifications and price before buying.
1. Klein Tools MM420: Best Overall Choice
The Klein Tools MM420 is my leading choice for drivers and DIY mechanics who want a more capable meter for automotive electrical troubleshooting. It offers auto-ranging True RMS measurement, up to 600V AC/DC voltage, up to 10A AC/DC current, and resistance measurement up to 50 MΩ.
Auto-ranging makes routine testing easier because you do not need to select every measurement range manually. True RMS capability is useful for measuring certain non-sinusoidal AC waveforms, although it does not automatically make every reading more accurate.
For vehicle diagnostics, the MM420 can help check battery voltage, charging voltage, continuity, fuses, and resistance in disconnected components.
Amazon buying recommendation: Check the current price and specifications for the Klein Tools MM420 Digital Multimeter on Amazon.
- VERSATILE FUNCTIONALITY: Measures AC/DC voltage up to 600V, 10A AC/DC current, 50MΩ resistance; additional features incl…
Beyond multimeters, automotive troubleshooting often requires specialized testers and diagnostic instruments. Explore our Complete Guide to Test Equipment & Diagnostics to understand which tools are best suited to different electrical testing tasks.
2. AstroAI AM33D: Best Budget Option
The AstroAI AM33D is a practical option for beginners who need a basic digital multimeter for occasional automotive checks. Its 2000-count display supports AC/DC voltage, current, resistance, continuity, and diode testing.
It can help with simple tasks such as checking a 12V battery, testing a fuse, identifying an open wire, or checking whether a disconnected switch has continuity.
However, do not assume that a low-cost meter offers the same protection, accuracy, or durability as a professional instrument. Check its manual for current input limits, fuse specifications, and permitted measurement categories.
Amazon buying recommendation: View the AstroAI AM33D Digital Multimeter on Amazon and confirm the latest specifications before ordering.
- Additional Tips – The following incorrect operations may cause the multimeter not to show results: Firstly, the plugs of…
What Features Matter for Automotive Electrical Troubleshooting?
Before buying the best multimeter for automotive electrical troubleshooting under 100 dollars, compare the functions you will use most often.
| Feature | Why It Matters |
|---|---|
| DC voltage | Checks battery and charging-system voltage |
| Continuity | Helps find broken wires and open circuits |
| Resistance | Tests disconnected components and wiring |
| Diode test | Checks diodes and some electronic components |
| DC current | Measures current when connected correctly in series |
| Auto-ranging | Reduces manual range selection |
| Fused current inputs | Helps protect the meter during current measurements |
| Test-lead quality | Improves handling and safe contact |
For most 12V vehicle work, DC voltage and continuity are the most frequently used functions. A meter with good leads, clear controls, and suitable input protection is more useful than one with many functions you will never use.
How to Use a Multimeter for Common Car Electrical Faults
Test a 12V car battery
Set the meter to DC volts and connect the red probe to the positive terminal and the black probe to the negative terminal. A fully charged conventional lead-acid battery often reads around 12.6V after resting, although temperature, battery type, and state of charge affect the result.
Check the charging system
Measure battery voltage with the engine running and compare the result with the vehicle manufacturer’s charging specifications. Many conventional charging systems operate around 13.5–14.8V, but smart charging systems may vary their voltage considerably.
Test a fuse
Switch off the circuit and remove the fuse when required by the service procedure. Use continuity mode to check it. A good fuse should have low resistance, while a blown fuse will normally show an open circuit.
Find a wiring fault
Disconnect power before using resistance or continuity mode. Measure across the isolated wire or component. An open reading may indicate a broken wire, loose connection, or failed component.
Safety note: Never measure resistance or continuity on an energized circuit. Never connect a meter in current mode directly across a battery or voltage source.
Is a $100 Multimeter Enough for Automotive Work?
For many home mechanics, yes. A quality meter under $100 can handle routine battery tests, fuse checks, voltage-drop testing, continuity checks, and basic electrical diagnosis.
However, modern vehicles contain sensitive electronic modules, hybrid systems, and high-voltage electric drivetrains. Ordinary automotive multimeters should not be assumed safe for high-voltage traction batteries. Use equipment specifically rated for the task and follow the vehicle manufacturer’s procedures.
For a broader selection of professional options, compare my guide to the best multimeter for electricians.
Safety Ratings and US Electrical Work
Automotive 12V testing differs from work on household and industrial electrical systems. A meter suitable for checking a car battery is not automatically suitable for measuring a 120/240V residential circuit or industrial equipment.
For US electrical work, check the meter’s marked CAT rating, voltage limit, input protection, and the manufacturer’s documentation. CAT II, CAT III, and CAT IV ratings relate to different electrical environments; the correct rating depends on where the measurement is taken.
The National Electrical Code edition adopted by the local jurisdiction can vary. Confirm the applicable edition with your local authority having jurisdiction (AHJ). Permits and inspections may be required for relevant fixed electrical work. NEC compliance does not replace safe meter selection or correct test procedures.
From multimeters and clamp meters to voltage testers and advanced diagnostic equipment, choosing the right instrument makes troubleshooting easier. Read our Complete Guide to Test Equipment & Diagnostics for a practical overview of essential testing equipment.
Frequently Asked Questions
What is the best multimeter for car electrical problems under $100?
The Klein Tools MM420 is a strong overall choice for users who want auto-ranging True RMS measurements and a broad set of diagnostic functions. The AstroAI AM33D is worth considering for simpler, lower-cost testing.
Can I use a regular digital multimeter on a car battery?
Yes, provided the meter supports DC voltage measurement and is used according to its manual. Check polarity and select the correct mode before testing.
Do I need True RMS for automotive diagnostics?
Not for every task. DC voltage, continuity, and resistance are more important for many routine checks. True RMS can be helpful for certain AC measurements and waveforms.
Can a multimeter test an alternator?
A multimeter can help check charging voltage and identify possible charging-system issues. A complete diagnosis may also require load testing, voltage-drop checks, scan-tool data, and manufacturer-specific procedures.
Is a $20 multimeter safe for automotive use?
It may be suitable for basic, low-voltage work if it has appropriate protection and verified specifications. Do not rely on price alone; inspect its input ratings, fuses, leads, and measurement-category markings.
Final Verdict
For most DIY mechanics, the Klein Tools MM420 offers a useful combination of auto-ranging, True RMS measurement, and automotive diagnostic functions. The AstroAI AM33D is a reasonable alternative for simple checks when budget is the main concern.
Before purchasing the best multimeter for automotive electrical troubleshooting under 100 dollars, verify the current Amazon price, exact model specifications, safety ratings, and included accessories. Choose a meter that suits your actual testing needs, and use the correct procedure for every measurement.
