Best Megger Insulation Testers 1000V | Top Rated Megohmmeters
When it comes to electrical maintenance, insulation resistance testing is one of the most critical preventive measures. Choosing the best megger insulation testers 1000V ensures reliable diagnostics, improved safety, and compliance with international standards. Whether you are working on low voltage switchgear, motors, transformers, or industrial panels, a high-quality 1000V megohmmeter helps detect insulation degradation before it turns into a costly failure.
In this guide, we will review the best megger insulation testers 1000V, compare their features, and help you select the right insulation resistance tester for your application.
Table of Contents
Table of Contents
Why 1000V Insulation Testers Are Important
A 1000V insulation tester is widely used for testing:
- LV motors and generators
- Power and control cables
- Distribution transformers
- Switchboards and MCC panels
- Solar PV DC circuits
- Industrial wiring systems
Testing at 1000V provides a more realistic stress condition for equipment rated up to 600V or 690V systems. It helps identify weak insulation, moisture ingress, contamination, and aging effects.
Electrical engineers prefer 1000V digital megohmmeters because they balance safety, portability, and test depth. For most industrial applications, a 1000V insulation resistance meter is more than sufficient.
Key Features to Look for in the Best Megger Insulation Testers 1000V
Before reviewing specific models, it is important to understand what makes the best megger insulation testers 1000V stand out from standard testers.
1. Insulation Resistance Range
Look for testers offering a range up to:
- 1 GΩ (basic use)
- 10 GΩ (industrial level)
- 100 GΩ or higher (advanced diagnostics)
Higher resistance range allows testing of modern XLPE cables and high-efficiency motors.
2. Multiple Test Voltages
A quality 1000V megohmmeter should provide selectable voltages such as:
- 250V
- 500V
- 1000V
Some models also include 50V or 100V for sensitive electronics.
3. Safety Category Rating
Ensure compliance with:
- CAT III 600V or CAT IV 300V
- IEC 61010 standards
This ensures operator safety during live environment testing.
Need to choose the right tester for your electrical testing needs? Explore our guide to the Best Insulation Resistance Testers for reliable options and key buying factors.
4. Additional Diagnostic Functions
Advanced insulation testers include:
- Polarization Index (PI)
- Dielectric Absorption Ratio (DAR)
- Continuity testing
- Voltage detection
- Auto discharge function
These features significantly enhance testing accuracy.

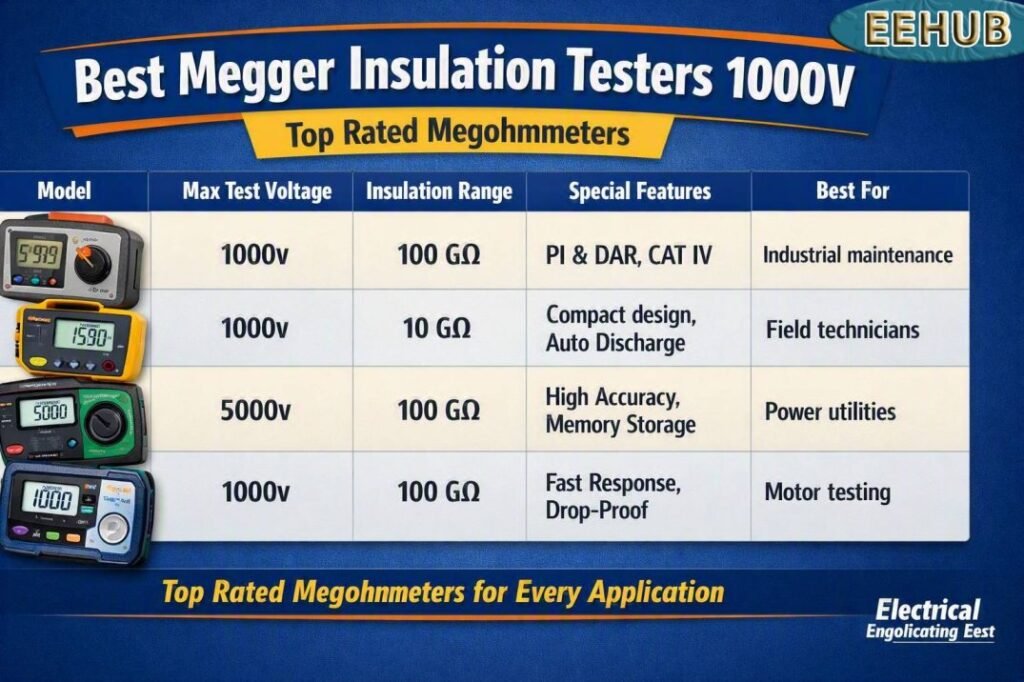

Detailed Review of the Best Megger Insulation Testers 1000V
Megger MIT410/2
Megger is one of the most respected brands in insulation testing. The MIT410/2 is often considered among the best megger insulation testers 1000V due to its rugged design and high measurement capability.
Key highlights:
- Insulation resistance up to 100 GΩ
- PI and DAR diagnostic functions
- Weatherproof case
- CAT IV safety rating
It is ideal for industrial plants, substations, and heavy-duty applications.
Fluke 1507 Insulation Resistance Tester
Fluke products are known for durability and precision. The Fluke 1507 is compact yet powerful.
Main features:
- Test voltage up to 1000V
- Insulation measurement up to 10 GΩ
- Automatic discharge
- Reliable digital display
This model is suitable for maintenance engineers who require portability without sacrificing accuracy.
Kyoritsu KEW 3125A
The KEW 3125A provides extended measurement capabilities and excellent repeatability.
Important specifications:
- Up to 100 GΩ resistance range
- Memory function for test results
- High measurement stability
- Advanced insulation diagnostics
It is widely used in power distribution networks and utility maintenance.
Hioki IR4057-50
Hioki offers fast response insulation testers with robust construction.
Key advantages:
- Drop-resistant design
- 100 GΩ insulation measurement
- Backlit display
- Rapid test stabilization
Motor testing professionals often prefer this unit for its quick measurement cycle.
Looking beyond 1000V megohmmeters? Compare leading models and features in our roundup of the Best Insulation Resistance Testers before making your choice.
How to Choose the Right 1000V Insulation Tester
Selecting the best megger insulation testers 1000V depends on your specific application.
For Industrial Maintenance
Choose:
- 100 GΩ measurement capability
- PI and DAR functions
- CAT IV safety rating
Megger and Kyoritsu models are strong choices.
For Solar PV Systems
Look for:
- Accurate DC insulation testing
- Stable output voltage
- High resistance range
Hioki and Megger offer reliable performance for solar installations.
For Electrical Contractors
Consider:
- Portability
- Affordable pricing
- Easy interface
Fluke 1507 or UNI-T UT513A are practical options.
Insulation Resistance Testing Best Practices
Even the best megger insulation testers 1000V must be used properly to ensure valid results.
Follow these guidelines:
- Disconnect equipment before testing
- Discharge stored energy
- Select appropriate test voltage
- Record temperature conditions
- Compare readings with historical data
Trending resistance readings are more valuable than single measurements.
Typical Insulation Resistance Values
The table below shows general insulation resistance benchmarks.
| Equipment Type | Minimum Recommended IR Value |
|---|---|
| LV Motor | 1 MΩ per kV + 1 MΩ |
| Control Cable | 1–10 MΩ |
| Power Cable | Above 100 MΩ preferred |
| Transformer LV Winding | Above 100 MΩ |
Always refer to manufacturer standards for precise limits.
Benefits of Using the Best Megger Insulation Testers 1000V
Investing in the best megger insulation testers 1000V provides several advantages:
- Early fault detection
- Reduced downtime
- Improved safety compliance
- Accurate preventive maintenance
- Long-term equipment protection
High-quality digital insulation testers also offer stable output voltage, fast test cycles, and better readability under field conditions.
Digital vs Analog Megohmmeters
Modern digital 1000V insulation resistance testers provide:
- Clear LCD display
- Automatic calculation of PI/DAR
- Better measurement resolution
- Data logging capability
Analog testers are simple but lack advanced diagnostic tools. For professional applications, digital models are recommended.
For a broader comparison of insulation testing equipment, check out our guide to the Best Insulation Resistance Testers and find a tester that fits your application.
Final Thoughts
Selecting the best megger insulation testers 1000V is a critical decision for electrical engineers, maintenance managers, and testing professionals. A reliable 1000V megohmmeter not only ensures accurate insulation resistance measurement but also enhances workplace safety and asset reliability.
When choosing your tester, focus on resistance range, safety rating, diagnostic functions, and durability. For heavy industrial environments, models from Megger, Kyoritsu, and Hioki deliver strong performance. For field technicians and contractors, Fluke and UNI-T offer excellent portability and value.
A quality insulation resistance tester is not just a tool. It is an investment in electrical system reliability. By selecting one of the best megger insulation testers 1000V, you ensure precise testing, dependable results, and long-term operational confidence.
