A4988 Stepper Motor Driver with ESP32: Wiring, Code and Microstepping

The A4988 Stepper Motor Driver with ESP32 is one of the cheapest ways to get precise, repeatable motion from a 3.3 V microcontroller. This guide is the hub for everything about the A4988 ESP32 combination: how to wire it, which GPIO pins to use, how to set the current limit, how microstepping works, working ESP32 stepper motor code, and which motor to buy. Each section links to a deeper, dedicated guide.

Quick answer – how to connect an A4988 to an ESP32

1. Power the A4988 logic (VDD) from the ESP32’s 3.3 V pin and join all grounds.
2. Feed VMOT with 8–35 V from a separate motor supply and add a 100 µF capacitor across VMOT/GND.
3. Join RESET to SLEEP with a jumper wire.
4. Wire STEP and DIR to two ESP32 GPIOs (this guide uses GPIO 26 and 27).
5. Set Vref for your motor’s current, then connect the two coils to 1A/1B and 2A/2B.
6. Upload the AccelStepper sketch below.

A4988 Stepper Motor Driver with ESP32: Parts you need

• ESP32 development board (ESP32-WROOM-32 DevKit or similar)
• A4988 stepper driver module (with heatsink)
• Bipolar stepper motor – a NEMA 17 is the usual choice
• Motor power supply, 8–35 V, sized for your motor current
• 100 µF electrolytic capacitor (rated above your supply voltage)
• Breadboard and jumper wires, a small screwdriver and a multimeter

Wiring the A4988 to the ESP32

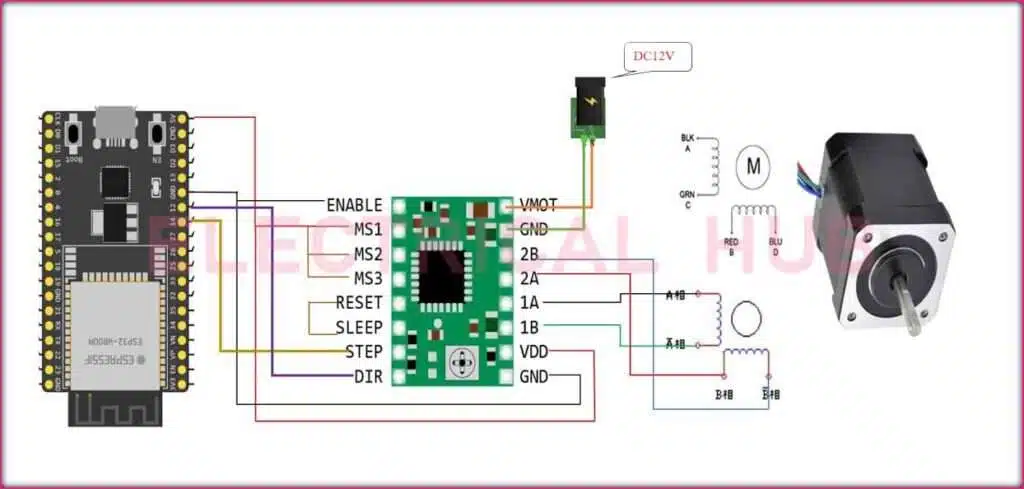

The A4988 logic pins accept 3.0–5.5 V, so the ESP32’s 3.3 V outputs drive STEP and DIR directly – no level shifter is needed when VDD is powered from 3.3 V. The diagram shows the full connection; the table lists every wire.

Do not plug or unplug the motor while VMOT is powered. Disconnecting a motor under power can damage the A4988. Power down, rewire, then power up.

Choosing ESP32 GPIO pins for the A4988

Not every ESP32 pin is a good fit. Some are wired to the flash chip, some are input-only, and the strapping pins change the boot mode if they are pulled the wrong way at reset. The chart below shows safe choices for STEP, DIR, ENABLE and the MS pins. You can compare boards in our ESP32 pinout reference.

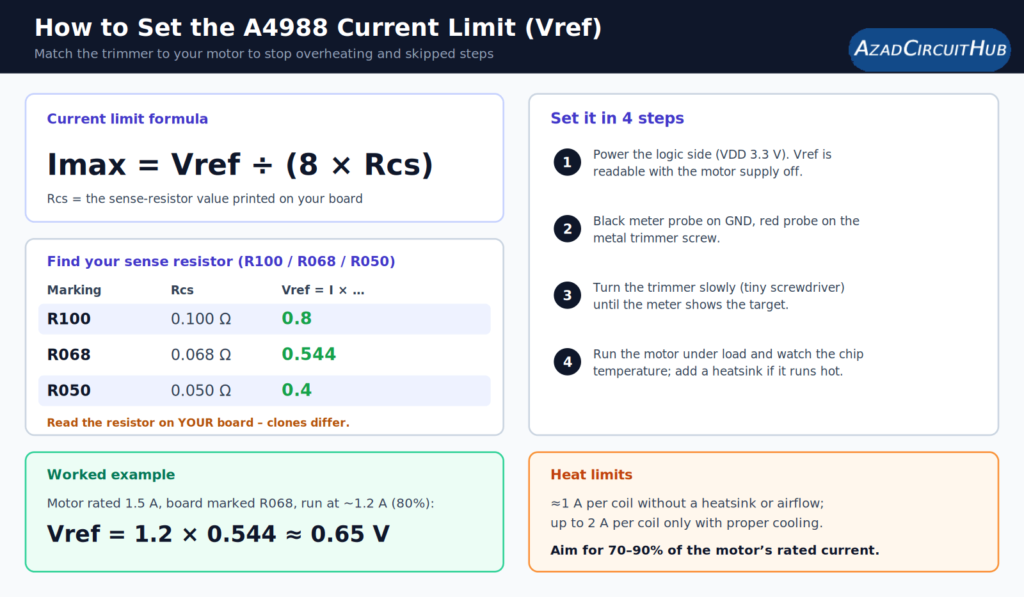

Setting the A4988 current limit (Vref)

The small trimmer on the A4988 sets the maximum current per coil. Set it too high and the driver and motor overheat; too low and the motor skips steps. The limit follows Imax = Vref ÷ (8 × Rcs), where Rcs is the sense resistor on your board (commonly 0.068 Ω or 0.1 Ω – read the marking, because clone boards differ).

Example: a 1.5 A motor on a board with 0.068 Ω sense resistors, run at about 1.2 A, needs Vref ≈ 1.2 × 0.544 ≈ 0.65 V.

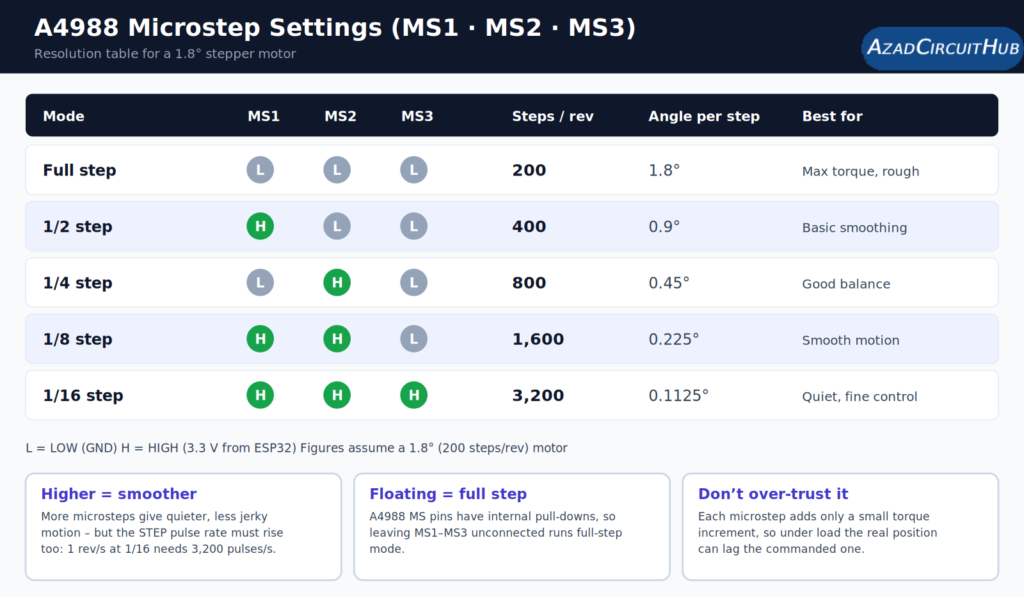

Microstepping with MS1, MS2 and MS3

The three MS pins divide each full step into smaller ones. More microsteps mean smoother, quieter motion, but you need a proportionally faster STEP pulse rate for the same speed. The pins have internal pull-downs, so leaving them unconnected gives full-step mode. See A4988 microstep: mastering precision and control for torque trade-offs and practical settings.

ESP32 stepper motor code (AccelStepper)

This sketch uses the AccelStepper library (install it from the Arduino IDE Library Manager). It sets 1/16 microstepping, enables the driver, and moves the motor one revolution forward and back with smooth acceleration. The pins match the wiring table above. A longer walkthrough with more examples is in A4988 ESP32 code: complete stepper motor control.

#include <AccelStepper.h>

// Pin map (see the wiring table)
const uint8_t STEP_PIN = 26;
const uint8_t DIR_PIN  = 27;
const uint8_t EN_PIN   = 25;   // active LOW
const uint8_t MS1_PIN  = 32;
const uint8_t MS2_PIN  = 33;
const uint8_t MS3_PIN  = 13;

const long STEPS_PER_REV = 200L * 16;   // 1.8° motor at 1/16 microstepping

AccelStepper stepper(AccelStepper::DRIVER, STEP_PIN, DIR_PIN);

void setup() {
  pinMode(EN_PIN, OUTPUT);
  pinMode(MS1_PIN, OUTPUT);
  pinMode(MS2_PIN, OUTPUT);
  pinMode(MS3_PIN, OUTPUT);

  digitalWrite(EN_PIN, LOW);     // enable the driver
  digitalWrite(MS1_PIN, HIGH);   // MS1 + MS2 + MS3 HIGH = 1/16 step
  digitalWrite(MS2_PIN, HIGH);
  digitalWrite(MS3_PIN, HIGH);

  stepper.setMaxSpeed(3200);       // steps per second (1 rev/s at 1/16)
  stepper.setAcceleration(3200);   // steps per second squared
  stepper.setMinPulseWidth(5);     // microseconds
  stepper.moveTo(STEPS_PER_REV);
}

void loop() {
  // Reverse whenever the target is reached
  if (stepper.distanceToGo() == 0) {
    stepper.moveTo(stepper.currentPosition() == 0 ? STEPS_PER_REV : 0);
  }
  stepper.run();   // call as often as possible – avoid delay() here
}

Why this sketch is safer than the common “Arduino Uno” example: many tutorials reuse pins 2 and 3, which on an ESP32 are a strapping pin and the UART receive pin. The pins above avoid those problems. Because stepper.run() must be called constantly, keep delay() and slow code out of loop(). For very high step rates, a hardware-timed library such as FastAccelStepper is a better fit than AccelStepper.

Which stepper motor to use with the A4988

NEMA 17

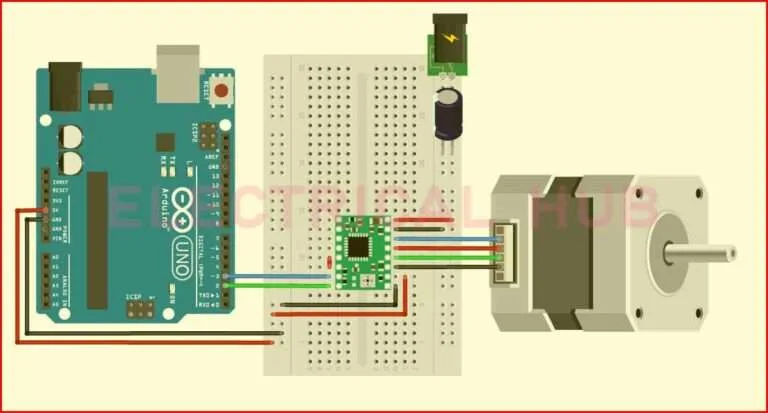

The standard match for the A4988: a bipolar motor with enough torque for 3D printers, CNC and robotics. See NEMA 17 A4988 for wiring, current settings and sketches.

28BYJ-48

A tiny, low-torque geared motor that is normally unipolar and paired with a ULN2003 board. Using it with an A4988 requires converting it to bipolar and a very low Vref – read the 28BYJ-48 stepper motor with A4988 driver guide first.

Whatever motor you choose, check that it is a bipolar motor (four wires), note its rated current, and measure coil pairs with a multimeter before connecting.

Using the A4988 with ESP8266 and STM32

The A4988 only needs a logic-level STEP pulse and a DIR level, so the wiring in this guide transfers to other 3.3 V boards. An ESP8266 stepper motor A4988 setup uses the same connections on its GPIO pins (watch its boot-strapping pins and limited number of free pins). For an A4988 STM32 build, use any output pin for DIR and a timer-driven pin for STEP to get stable step rates. Our ESP32 pinout guide helps when you move a design between boards.

Troubleshooting A4988 and ESP32 problems

A4988 ESP32 FAQ
