Automated control of home appliances and lighting often relies on manual operation, leading to potential power wastage due to human oversight or unforeseen situations. Introducing the Light Dependent Resistor (LDR) circuit addresses this issue by enabling load control based on light intensity. The LDR “Light Dependent Resistor”, also known as a photoresistor, comprises high-resistance semiconductor material, facilitating adaptable resistance in response to light exposure.
Read More About
Functionally, the LDR’s resistance shifts significantly upon exposure to light rays. In darkness, its resistance can reach several megaohms, whereas in bright light, it swiftly drops to mere hundred ohms. This broad range of resistance variation finds extensive use across diverse applications, and the LDR’s sensitivity can vary based on the incident light’s wavelength.

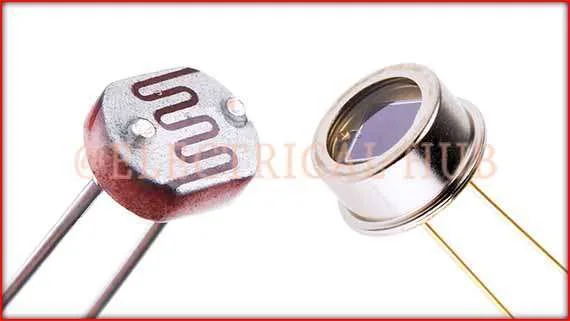

What is Light Dependent Resistor
The LDR’s design incorporates semiconductor materials to harness its light-sensitive characteristics. Primarily composed of materials like CdS (cadmium sulfide), the utilization of these substances faces limitations in certain regions due to environmental concerns. Alternative materials such as CdSe (cadmium selenide), PbS (lead sulfide), and InS (indium antimonide) also find application.
While LDRs utilize semiconductor materials, they function as passive devices without a PN-junction, distinguishing them from phototransistors and photodiodes. This unique characteristic positions them as distinct elements within the realm of Light Dependent Resistor.
Working principle of Light Dependent Resistor
The working principle of a light-dependent resistor (LDR) revolves around its responsiveness to light, making it a vital component in various light-sensitive applications. Essentially, an LDR consists of high-resistance semiconductor material that undergoes a shift in resistance upon exposure to light.
When light falls on the LDR, its resistance promptly alters. In darkness, the resistance peaks, often reaching several megaohms, while in well-lit conditions, it significantly decreases, sometimes dropping to mere hundred ohms. This transformative behavior based on light intensity enables the LDR to modulate electrical resistance in response to changing light levels.
The sensitivity of an LDR is not solely dependent on the intensity but also varies with the wavelength of the incident light. Its design, primarily employing semiconductor materials like cadmium sulfide (CdS), allows for this light-dependent characteristic, although restrictions in some regions due to environmental concerns have led to exploration of alternative materials like cadmium selenide (CdSe), lead sulfide (PbS), and indium antimonide (InS).
Functioning as a passive device without a PN-junction, the LDR distinguishes itself from other light-sensitive elements such as phototransistors and photodiodes. This unique trait positions the LDR as a pivotal component in circuits requiring sensitivity to light for diverse applications.
construction of Light Dependent Resistor
The construction of a Light Dependent Resistor (LDR) involves specialized semiconductor materials, defining its sensitivity to varying light levels. Typically, these resistors are composed of high-resistance semiconductors crafted to respond dynamically to incident light.
The core structure of an LDR comprises semiconductor substances like cadmium sulfide (CdS) primarily, although alternative materials such as cadmium selenide (CdSe), lead sulfide (PbS), and indium antimonide (InS) are also employed. These materials, renowned for their light-sensitive properties, undergo modulation in resistance when exposed to differing levels of light.
Despite their semiconductor composition, LDRs function as passive devices, distinct from phototransistors or photodiodes, lacking a PN-junction. This particular structural characteristic empowers LDRs to effectively alter their resistance in response to light, positioning them as pivotal elements in circuits designed for light sensitivity and control.
circuit of light dependent resistor
The Light Dependent Resistor (LDR) circuit comprises an array of electronic components—LDR, relay, Darlington pair, diode, and resistors—interconnected as illustrated in the circuit diagram. This setup operates with a voltage supply directed towards the load.
For the required DC voltage, the circuit derives power either from a bridge rectifier or a battery, effectively converting the supplied AC into DC. The bridge rectifier employs a buck converter, reducing the voltage from 230v to 12v, while a set of diodes configured in a bridge rectification format transforms the AC to DC. Further regulation adjusts the 12v DC to 6v DC before distributing it across the entire circuit. Continuous operation mandates a consistent 230v AC supply for both the bridge rectifier and the load. An example circuit employing light dependent resistor has been shown below.
During daytime, the LDR’s resistance diminishes to approximately 100Ω as light falls on it. Consequently, the power supply traverses through the LDR, grounding via the variable resistor and a connected resistor in the light sensor circuit. This setup capitalizes on the principle of current flow—preferring paths of lower resistance—whereby the relay coil lacks sufficient supply for reinforcement, leading to the illumination being switched off in daylight.
Conversely, in nighttime conditions, the LDR’s resistance escalates to around 20MΩ. This surge in resistance curtails the current flow significantly or nearly to zero. Consequently, current flows through the low-resistance lane, escalating the base voltage of the Darlington pair beyond 1.4v. With the Darlington pair transistor activated, the relay coil secures ample supply to energize, facilitating the illumination of the light in nighttime conditions.
LDRs exhibit varying sensitivity based on the light’s wavelength impacting their responsive range. This phenomenon is evident when the light’s wavelength falls outside a designated range, affecting the device’s response. Devices fashioned from diverse materials react differently to light wavelengths, enabling their utilization across an array of applications.
Certain extrinsic resistors, particularly suited for infrared use, demonstrate heightened responsiveness to light wavelengths. However, when working with infrared, precautions must be taken to prevent heat accumulation from the radiation’s heating effect.
Latency of Light Dependent Resistor
Latency constitutes a pivotal aspect of LDR functionality, indicating the time required for the components to respond to changes. This attribute holds particular significance in circuit design, considering the time it takes for an LDR to stabilize at its new light level after alterations. Consequently, LDRs might not be the optimal choice in scenarios where light values change rapidly, unless the changes occur over a reasonably extended duration.
The recovery rate of resistance pertains to the speed at which the resistance alters. Typically, when transitioning from complete darkness to light, an LDR responds within tens of milliseconds. However, the reversal—when light is removed—might take up to a second. Datasheets for LDRs often specify the dark resistance after a designated time, such as one and five seconds, offering insights into the resistor’s latency. These values serve as indicative measures for understanding the LDR’s response characteristics.
light dependent resistor types
Light dependent resistors (LDRs) come in various types, each tailored to specific applications and light sensitivity needs. Here are some common types:
Cadmium Sulfide (CdS) LDRs: These are among the most prevalent types, sensitive to a broad spectrum of visible light. They exhibit lower resistance in brighter conditions and higher resistance in darkness.
Cadmium Selenide (CdSe) LDRs: Similar to CdS LDRs, they respond to light across the visible spectrum but might have slightly different properties based on the material used.
Lead Sulfide (PbS) LDRs: These are more sensitive to infrared light and are often employed in devices where IR detection is crucial, such as in remote controls and some types of sensors.
Indium Antimonide (InSb) LDRs: Known for their high sensitivity to infrared light, they find application in specialized areas like thermal imaging and IR sensors.
Silicon LDRs: Utilizing silicon material, these resistors offer higher resistance changes with light intensity but are less common due to their limited sensitivity range compared to other types.
Photocells and Photodiodes: While not strictly LDRs, these light-sensitive components share similar principles. Photocells generate a voltage when exposed to light, while photodiodes convert light into electrical current.
Each type has its unique characteristics, responding differently to various wavelengths of light and catering to specific requirements in diverse applications across industries like security systems, lighting controls, cameras, and more. The choice of LDR type depends on the desired sensitivity, spectral response, and environmental factors relevant to the intended application.
Light Dependent Resistor Specifications
The Light dependent resistor (LDRs) has various specifications that define their performance characteristics. Some common specifications include:
Resistance Range: LDRs exhibit a wide range of resistance values, typically with higher resistance in darkness and lower resistance in bright light. This range can vary based on the type and construction of the LDR.
Dark Resistance: This refers to the resistance of the LDR in complete darkness. It’s a crucial specification that determines the minimum resistance level the LDR can achieve when no light is present.
Light Resistance: The resistance of the LDR under bright illumination or when exposed to intense light sources. It represents the maximum decrease in resistance when the LDR is fully exposed to light.
Response Time: The time taken by the LDR to change its resistance level when transitioning from darkness to light or vice versa. This specification indicates the speed of the LDR’s reaction to changes in light intensity.
Spectral Response: Different LDR types have varying sensitivities to different wavelengths of light. Some LDRs might be more sensitive to specific portions of the light spectrum, such as visible light, infrared, or ultraviolet.
Temperature Coefficient: Describes how the LDR’s resistance changes with variations in temperature. It’s crucial as temperature changes can affect the accuracy and stability of the LDR’s response to light.
Operating Voltage: Indicates the maximum voltage the LDR can withstand while operating within its specified resistance range. This specification helps ensure the LDR’s safe and optimal usage in circuits.
These specifications are crucial for selecting the right LDR for specific applications, considering factors like required sensitivity, response time, spectral range, and environmental conditions where the LDR will be used
characteristics of light dependent resistor
Light-dependent resistors (LDRs) possess several key characteristics that define their functionality and suitability for different applications:
Light Sensitivity: LDRs exhibit sensitivity to light intensity, altering their resistance based on the amount of incident light. They demonstrate higher resistance in low-light conditions and lower resistance in well-lit environments.
Response Time: These resistors have a response time, indicating the duration required to stabilize their resistance levels when exposed to changes in light intensity. This latency varies across different types of LDRs.
Spectral Response: Different LDR types have varying spectral responses, meaning they exhibit unique sensitivities to different wavelengths of light. Some may be more responsive to visible light, while others are sensitive to infrared or ultraviolet light.
Resistance Range: LDRs cover a wide range of resistance values, from high resistance (in darkness) to low resistance (in bright light), enabling their use in diverse circuit applications that require controlled variations in resistance.
Variability: They offer variability in resistance based on light conditions, making them suitable for applications requiring dynamic adjustments, such as in light-sensitive switches or automated systems.
Environmental Factors: Their performance might be affected by environmental factors like temperature and humidity. Some LDRs may exhibit drift or changes in characteristics based on these conditions.
Advantages of light dependent resistor
Light Sensitivity: Highly sensitive to light changes, allowing for responsive adjustments in circuits based on ambient light levels.
Simple Design: Typically simple and easy to integrate into circuits, making them accessible for various applications.
Cost-Efficient: Generally inexpensive, making them cost-effective solutions for light-sensing applications.
Versatile: Available in various types with different spectral responses, catering to a wide range of light-sensing needs.
Energy Efficiency: Enable energy-saving functionalities by controlling lighting or device operations based on light levels.
Disadvantages of light dependent resistor
Slow Response: Exhibits a latency or delay in response time when transitioning between light levels, which might not suit rapid changes in lighting conditions.
Limited Spectral Range: Each type of LDR has a specific spectral response, limiting its sensitivity to particular wavelengths of light.
Environmental Influence: Susceptible to environmental factors such as temperature and humidity, impacting their performance and accuracy.
Non-Linear Response: The resistance change might not always be linear concerning the incident light, affecting precise control in some applications.
Limited Dark Resistance: In complete darkness, LDRs might not reach infinite resistance, affecting their performance in specific scenarios.
Applications of light dependent resistor
Light Sensors: Used in light-sensitive applications like streetlights, security systems, and outdoor lighting to detect ambient light levels and control illumination accordingly.
Camera Systems: Incorporated in cameras and photography equipment to regulate exposure settings based on available light, ensuring optimal image quality.
Automated Lighting: Employed in indoor lighting systems and smart home devices to adjust lighting intensity depending on natural light levels, enhancing energy efficiency.
Solar Panels: Utilized in solar energy systems to track sunlight and optimize solar panel positioning for maximum energy capture.
Industrial Automation: Integrated into machinery and equipment for light-sensitive operations, such as in automated sorting systems or manufacturing processes.
Electronic Devices: Found in devices like alarm clocks, automatic doors, and appliances where light-sensitive functionalities are essential for operation.
Optical Switching: Used in optical fiber networks and communication systems to control the switching of optical signals based on light input.
Medical Devices: Applied in medical equipment like blood pressure monitors or pulse oximeters to measure and respond to light changes for accurate readings.
Environmental Monitoring: Incorporated in environmental monitoring systems to assess light levels for weather forecasting or ecological research.
Education and Experiments: Utilized in educational settings for experiments and demonstrations related to light sensitivity and resistance changes in electronic circuits.
Light dependent resistors, with their remarkable sensitivity to light variations, stand as pivotal components in numerous technological applications. Their ability to modulate resistance based on ambient light levels finds utility across diverse sectors, from simple light-sensing mechanisms in everyday devices to complex systems in industrial automation and advanced technological solutions.
The advantages of LDRs, such as their simplicity, cost-effectiveness, and adaptability to various light conditions, make them indispensable in creating energy-efficient lighting systems, automated controls, and light-sensitive instruments. However, their limitations, like slower response times and susceptibility to environmental influences, warrant consideration when integrating them into designs for specific applications.
The continual innovation in materials and technology continues to refine the capabilities of LDRs, enhancing their performance, sensitivity, and reliability. As technology progresses, these improvements expand the horizons for LDRs, paving the way for more efficient and precise light-sensing solutions in an increasingly interconnected world.
In conclusion, while facing certain constraints, the versatility and utility of light dependent resistors remain undeniable, contributing significantly to technological advancements, energy conservation, and automation across various industries and everyday devices.
What is a Light Dependent Resistor (LDR)?
An LDR, also known as a photoresistor, is a passive electronic component that changes its resistance based on the intensity of light falling on it.
How does an LDR Work?
LDRs work on the principle of the photoconductivity of certain semiconductor materials. When exposed to light, the conductivity of these materials changes, altering the resistance of the LDR.
What are the Applications of LDRs?
LDRs find applications in light-sensitive devices such as automatic lighting systems, camera exposure controls, solar panels, and optical switches, among others.
What Factors Affect the Performance of an LDR?
Light wavelength, intensity, temperature, and humidity are significant factors affecting the performance and accuracy of an LDR.
How Does Resistance Change with Light Exposure?
In darkness or low light, LDRs have high resistance. As light intensity increases, their resistance decreases proportionally.
Are LDRs Suitable for Rapidly Changing Light Conditions?
LDRs may not be ideal for rapidly changing light conditions due to their response time, which might not keep pace with instantaneous light fluctuations.
Can LDRs Work with Different Types of Light?
Yes, different LDR materials exhibit varying responses to different wavelengths of light, allowing their use in visible, infrared, or ultraviolet light applications.
What are Typical Resistance Ranges of LDRs?
LDRs have resistance ranges that can vary from several kilohms in darkness to a few hundred ohms or less in bright light, depending on the specific type and construction.
Are LDRs Affected by Environmental Factors?
Yes, LDRs might be affected by changes in temperature and humidity, potentially influencing their performance and accuracy.
How Should LDRs be Integrated into Circuits?
Understanding the specifications and response characteristics of LDRs is essential for their proper integration into circuits, considering factors like response time and dark/light resistance ratios.
