Pressure Sensors: 7 Important Types, Working & Applications

| | |
Pressure Sensors - Precision in Monitoring and Control

Since the 1590s, humanity’s fascination with measuring pressure changes has evolved from simple glass tubes to sophisticated pressure sensors. These advanced devices play a crucial role in modern industries, offering unparalleled precision in monitoring pressure fluctuations. In this article, we delve into the world of pressure sensors, exploring their functions, types, and the transformative impact they have on maintenance strategies.

Understanding Pressure Sensors:

A pressure sensor, in its essence, is a device designed to sense and measure pressure. In the context of these sensors, pressure refers to the force exerted over an area. These devices have become integral for specialized maintenance strategies, such as predictive maintenance. By collecting real-time data on equipment conditions, pressure sensors enable teams to predict and address potential failures.

For instance, a transducer, a common pressure sensor in maintenance, picks up signals when pressure is applied, allowing teams to respond promptly. These sensors act as vigilant guardians, ensuring the smooth operation of pressurized assets.

How Pressure Sensors Work:

Pressure sensors operate by measuring physical changes in response to pressure differences. The most common type employs a strain gauge—a mechanical apparatus that undergoes deformations as pressure is applied. This gauge converts these changes into electrical signals, providing real-time, interpretable data for maintenance teams.

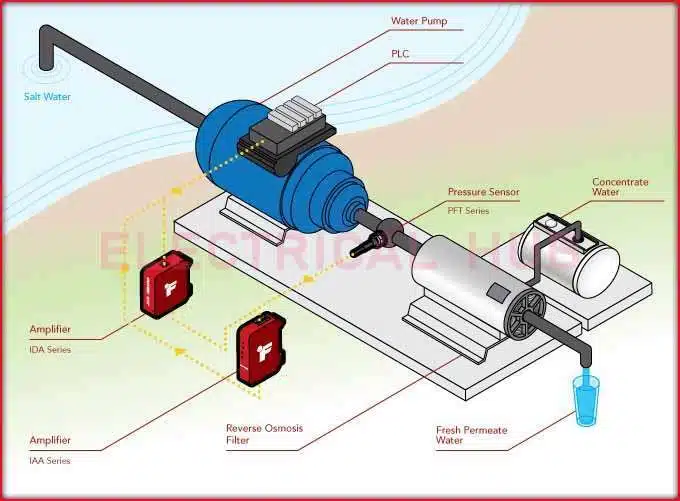

Pressure Sensors Working - Unveiling Precision in Monitoring

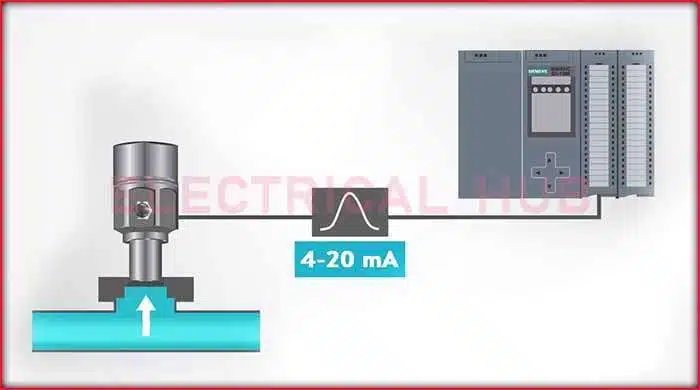

The process involves the strain gauge converting pressure into electrical signals, which are then measured, recorded, and sent to a Computerized Maintenance Management System (CMMS). The CMMS receives these signals and alerts maintenance teams in case of abnormal pressure readings, allowing for timely intervention and prevention of potential issues.

Types of Pressure Sensors

Pressure sensors are crucial devices that measure and monitor pressure changes in various applications. These sensors come in different types, each designed to suit specific requirements and operating conditions.

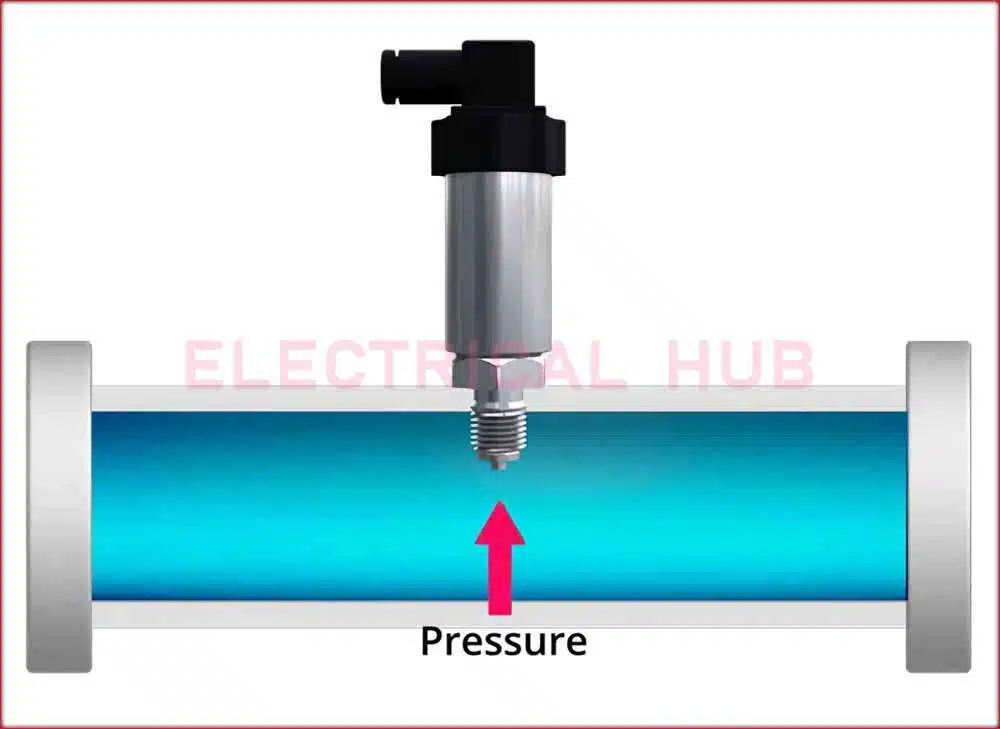

Types of Pressure Sensors - A Visual Exploration

Here are some common types of these sensors:

Strain Gauge Pressure Sensors:

Working Principle: Strain gauges measure the strain or deformation in a material when subjected to pressure.

How They Work: When pressure is applied, the strain gauge deforms, causing a change in electrical resistance. This change is then converted into an electrical signal proportional to the applied pressure.

Applications: Commonly used for long-term monitoring tasks due to their availability and versatility.

Piezoelectric Pressure Sensors:

Working Principle: Piezoelectric sensors utilize the piezoelectric effect, where certain materials generate an electric charge in response to mechanical stress.

How They Work: The sensor generates an electric charge when pressure is applied, and this charge is proportional to the applied force. The electric charge is then measured to determine the pressure.

Applications: Suitable for applications requiring small-sized sensors and high-frequency measurements.

Capacitive Pressure Sensors:

Working Principle: Capacitive sensors measure changes in capacitance, which is the ability of a system to store an electric charge.

How They Work: These sensors consist of two conductors separated by a gap. Changes in pressure alter the distance between the conductors, affecting capacitance. The variation in capacitance is then used to determine pressure.

Applications: Used in applications like measuring pressure changes in jet engines, car tires, and other vessels.

Manometers:

Working Principle: Manometers use the displacement of liquid in a tube to measure pressure differences.

How They Work: A U-shaped tube filled with liquid is used, and pressure differences cause the liquid to move. The height difference of the liquid columns is proportional to the pressure being measured.

Applications: Often used for calibration purposes and in laboratory settings.

Vacuum Pressure Sensors:

Working Principle: Vacuum sensors measure the effects of pressure on material properties.

How They Work: Sensors observe and measure changes in material properties as a response to surrounding vacuum pressure. The resulting data is then used to indirectly determine the pressure.

Applications: Commonly used in applications where pressure is below atmospheric levels, such as in vacuum technology.

Bourdon Tube Pressure Sensors:

Working Principle: Bourdon tubes use physical movements to measure pressure.

How They Work: A coiled tube, typically C-shaped, deforms when pressure is applied. This deformation is used to drive a dial calibrated to display pressure readings.

Applications: Inexpensive and durable, suitable for high-pressure applications.

Aneroid Barometers:

Working Principle: Aneroid barometers measure pressure changes using an air-tight metal capsule.

How They Work: The metal capsule compresses or expands in response to changes in pressure, and these small changes are measured and displayed on a dial.

Applications: Commonly used in measuring atmospheric pressure, often in aircraft due to their durable design.

Understanding the different types of these sensors allows for the selection of the most suitable sensor for specific applications, ensuring accurate and reliable pressure measurements.

Applications of Pressure Sensors:

Pressure sensors find a wide array of applications across various industries due to their ability to monitor and measure pressure changes accurately. Here are some common applications of these sensors:

Industrial Process Control:

Pressure sensors are extensively used in industrial processes to monitor and control pressure in pipelines, tanks, and vessels. They ensure that processes operate within safe and efficient pressure ranges.

Automotive Systems:

In automobiles, these sensors play a crucial role in monitoring tire pressure, engine oil pressure, and brake fluid pressure. This enhances vehicle safety, fuel efficiency, and overall performance.

Medical Devices:

These sensors are vital components in medical devices such as blood pressure monitors, ventilators, and infusion pumps. They help in accurately measuring and controlling pressure in various medical applications.

Aerospace Industry:

In the aerospace sector, pressure sensors are used in aircraft to measure cabin pressure, airspeed, and altitude. They contribute to the safety and proper functioning of aviation systems.

HVAC Systems:

Heating, ventilation, and air conditioning (HVAC) systems utilize pressure sensors to monitor air and fluid pressures. This ensures optimal performance and energy efficiency in maintaining desired environmental conditions.

Environmental Monitoring:

These sensors play a role in environmental monitoring applications, such as weather stations and oceanography. They assist in measuring atmospheric pressure, water pressure, and ocean depth.

Oil and Gas Industry:

Pressure sensors are critical in the oil and gas industry for monitoring pressure in pipelines, wells, and equipment. They contribute to the safe and efficient extraction, processing, and transportation of oil and gas.

Consumer Electronics:

Many consumer electronics devices, such as smartphones and wearables, incorporate these sensors. In smartphones, for example, they enable features like barometric altimeters and enhance location accuracy.

Hydraulic Systems:

Pressure sensors are integral to hydraulic systems, ensuring the proper functioning of machinery and equipment in various industries, including construction and manufacturing.

Research and Laboratories:

These sensors are used in research and laboratory settings for precise pressure measurements in experiments, calibrations, and testing of equipment.

Energy Conservation Systems:

Pressure sensors contribute to energy conservation by monitoring and optimizing pressure in industrial processes. They help identify inefficiencies and improve overall system performance.

Wastewater Treatment:

Pressure sensors assist in monitoring pressure in wastewater treatment systems, optimizing the flow of liquids and ensuring efficient processing.

Food and Beverage Industry:

In food and beverage processing, pressure sensors are employed to monitor and control pressures in various stages of production, ensuring quality and safety standards are met.

Robotics:

Pressure sensors are used in robotic applications to provide feedback on gripping force, allowing robots to handle delicate objects with precision.

Smart Home Systems:

These sensors can be integrated into smart home systems for applications such as detecting water leaks by monitoring water pressure in pipes.

 The Value of Pressure Sensors:

Pressure sensors act as futuristic tools in predictive maintenance, offering the ability to anticipate breakdowns before they occur. These sensors not only sense pressure changes but also make the data actionable by integrating with CMMS.

This allows maintenance teams to stay informed in real-time, enabling them to address issues promptly. The savings from predictive maintenance can be substantial, with estimates suggesting up to 40% savings over reactive maintenance.

Conclusion:

In the world of highly pressurized vessels, pressure sensors emerge as indispensable guardians of safety and reliability. By identifying risks early and enabling a predictive maintenance strategy, these sensors play a vital role in preventing catastrophic failures. As technology continues to advance, pressure sensors will remain at the forefront, ensuring the seamless operation of facilities and unlocking a future where breakdowns are averted, and efficiency is maximized.


What is a pressure sensor?

A pressure sensor is a device that detects and measures pressure, force, or changes in pressure in gases or liquids. It converts the physical force exerted on it into an electrical signal, which can be interpreted and displayed for various applications.

How do pressure sensors work?

These sensors work based on various principles, but the most common type is the strain gauge pressure sensor. These sensors contain a flexible diaphragm that deforms under pressure, causing strain on a strain gauge. The change in resistance of the strain gauge is then converted into an electrical signal proportional to the applied pressure.

What are the different types of pressure sensors?

There are several types of these sensors, including piezoelectric sensors, capacitive sensors, piezoresistive sensors, and optical sensors. Each type operates on different principles and is suitable for specific applications.

What is the typical range of pressure sensors?

The pressure range of sensors can vary widely depending on the type and intended application. Common pressure ranges include atmospheric pressure (around 101.3 kPa) for barometric sensors, low-pressure ranges for medical applications, and higher pressure ranges for industrial or automotive applications.

What are the applications of pressure sensors?

These sensors have a wide range of applications, including but not limited to industrial automation, automotive systems (such as tire pressure monitoring), medical devices, aerospace, weather monitoring, and consumer electronics.

How accurate are pressure sensors?

The accuracy of pressure sensors depends on factors such as sensor type, manufacturing quality, and calibration. High-quality sensors can have accuracies within a few percentage points of the measured pressure range.

Can pressure sensors measure both positive and negative pressure?

Yes, many sensors can measure both positive and negative pressure. Differential pressure sensors, for example, measure the difference in pressure between two points, allowing them to detect changes in both directions.

What is the importance of calibration in pressure sensors?

Calibration is crucial for ensuring the accuracy and reliability of sensors. It involves comparing the sensor’s output to a known reference under specific conditions. Regular calibration helps maintain the sensor’s accuracy over time.

What is the lifespan of pressure sensors?

The lifespan of pressure sensors can vary depending on factors such as usage conditions, environmental factors, and the quality of the sensor. In general, well-maintained pressure sensors can have a lifespan of several years.

How are pressure sensors commonly installed?

These sensors can be installed in various ways, depending on the application. Common methods include direct attachment to the pressure source, through a tube or hose, or using a diaphragm to isolate the sensor from the measured fluid. The installation method is chosen based on factors like the type of pressure being measured and environmental conditions.
