MAP Sensor Working and Types: A Comprehensive Guide

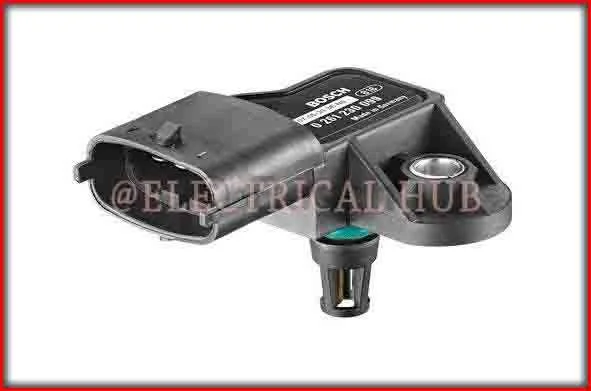

The Manifold Absolute Pressure sensor, commonly known as the MAP sensor, plays a pivotal role in regulating fuel injection in an engine. Functioning as an indirect airflow meter, it interprets vital signals for the engine’s fundamental fuel injection control.
Connected to the intake manifold via a vacuum tube, this sensor detects vacuum changes within the intake manifold, converting these fluctuations into voltage signals. These signals are crucial inputs for the Engine Control Unit (ECU) to precisely adjust the fuel injection volume based on engine speed and load variations.
Table of Contents
Working of MAP Sensor
The MAP sensor is like the engine’s watchful eye. It does a crucial job by checking and measuring the pressure inside the engine’s intake manifold. This helps keep the engine running just right. Let’s take a closer look at how it actually works:
Sensing Pressure Changes
We count on Manifold Absolute Pressure Sensors to detect minute pressure changes within the intake manifold. This information gives us a clear picture of how our engine is coping with different conditions, such as shifts in altitude or variations in load. These sensors swiftly convert these pressure shifts into electrical signals, feeding our Engine Control Unit (ECU) with real-time updates.
Calculating Engine Load
Once we have the pressure data, we’re able to calculate the engine load accurately. This helps us fine-tune our engine’s fuel injection volume and ignition timing, ensuring the perfect balance of air and fuel for optimal performance. Our goal is to keep the engine running smoothly and efficiently under any driving scenario.
Precision Fuel Injection
With the pressure details from Manifold Absolute Pressure Sensors, we regulate the intake of air. This information, combined with inputs from other sensors, guides us in deciding just the right amount of fuel to inject for combustion. This precision in fuel injection not only boosts engine efficiency but also curbs harmful emissions.
Enhancing Engine Safety and Performance
MAP sensors act as our guardians, alerting us to potential issues like engine knock. By monitoring pressure readings, we swiftly identify any irregularities and make instant adjustments to safeguard the engine’s performance and longevity.
Ensuring Smooth Idling
We rely on MAP sensors even during idling and low-speed operations to keep the engine running smoothly. Continuous monitoring of manifold pressure allows us to maintain stability during these crucial phases, ensuring a seamless transition between different engine states.
MAP sensors are our trusted allies in the engine control system, providing precise pressure readings that guide us in optimizing fuel injection and ignition timing. Their role in monitoring manifold pressure is invaluable, ensuring our engine performs at its best, offering the ideal balance between power, fuel efficiency, and emission control. Understanding how these sensors work helps us maintain and fine-tune our engine’s functionality for peak performance in today’s automotive world.
Types of MAP Sensor
When it comes to controlling engines, we rely on different types of MAP sensors to ensure precision and efficiency. These sensors play a crucial role in measuring manifold absolute pressure, aiding us in fine-tuning fuel injection for optimal engine performance. Here, let’s delve into the distinct variants of these sensors we utilize:
1. Varistor Type MAP Sensor
Varistor-type Manifold Absolute Pressure Sensor are our go-to for their rapid response, high precision, compact size, and adaptable installation, making them a staple in D-type injection systems. They operate on a Wheatstone bridge setup, comprising strain resistors and a sensitive silicon diaphragm.
When pressure shifts within the intake manifold, the diaphragm deforms, altering the strain resistor’s resistance. This mechanical change is converted into an electrical signal, amplified, and sent to the Engine Control Unit (ECU).
Advantages:
- Swift response time.
- High detection accuracy.
- Compact and versatile for installation flexibility.
2. Capacitive Type MAP Sensor
Capacitive-type Manifold Absolute Pressure Sensors rely on capacitance variations to gauge pressure changes in the intake manifold. These sensors modify capacitance between two plates as manifold pressure fluctuates. Changes in distance between plates affect capacitance, converted into an electrical signal.
- Simple design.
- Less affected by temperature changes.
- Cost-effective in certain applications.
3. Hybrid Type MAP Sensor
Hybrid Manifold Absolute Pressure Sensors combine varistor and capacitive types, aiming for improved accuracy and response time. Merging the Wheatstone bridge setup and capacitance alteration principles, these sensors aim to enhance precision and response.
- Enhanced accuracy.
- Improved response time compared to singular sensor types.
- Suited for demanding applications.
4. Piezoresistive Type MAP Sensor
Piezoresistive Manifold Absolute Pressure Sensors utilize resistive changes under pressure, enabling precise pressure measurements. These sensors rely on piezoresistive elements that alter resistance under pressure, converting these changes into electrical signals for processing.
- High sensitivity.
- Excellent pressure measurement accuracy.
- Suitable for high-pressure environments.
MAP sensors come in varied types, each offering distinct ways to interpret manifold absolute pressure. Choosing the right sensor depends on engine system specifics, considering factors like response time, accuracy, environmental conditions, and cost-effectiveness. Understanding these sensor variations guides us in selecting the optimal sensor for superior engine control and performance.
MAP Sensor Location
The location of the MAP (Manifold Absolute Pressure) sensor can vary depending on the specific vehicle make and model. However, there are several common areas where you might typically find the Manifold Absolute Pressure Sensor:
- Intake Manifold: Monitors the pressure of the air-fuel mixture before it enters the engine cylinders.
- Near the Throttle Body: Some vehicles have it located close to the throttle body.
- Engine Bay: Connected to a vacuum hose or manifold pressure port.
- Under the Hood: Positioned on the firewall, usually on the driver’s side or passenger’s side.
- Near the Air Filter Housing: In certain vehicle models, especially older ones.
MAP Sensor vs MAF Sensor
MAP Sensor (Manifold Absolute Pressure Sensor):
Functionality: Indirectly assesses engine load by monitoring pressure changes.
Operation: Detects alterations in manifold pressure, aiding in determining fuel injection quantity.
Accuracy and Precision: Offers accurate data but may lack precision in detecting minor airflow variations.
MAF Sensor (Mass Airflow Sensor):
Functionality: Directly measures the volume and density of incoming air.
Operation: Gauges airflow using a heated wire or film, ensuring precise fuel quantity for combustion.
Accuracy and Precision: Provides higher precision in measuring airflow but may be sensitive to dirt accumulation.
Key Differences:
Measurement Method: MAP indirectly infers airflow; MAF directly measures mass and density of incoming air.
Data Interpretation: MAP indirectly interprets engine load; MAF directly provides data on incoming air.
Response to Engine Changes: MAP may have limitations in responding to minor airflow alterations; MAF offers higher precision.
Sensitivity to Contaminants: Manifold Absolute Pressure Sensors are generally less susceptible to dirt compared to MAF sensors.
MAP and MAF sensors play crucial roles in engine control. While Manifold Absolute Pressure Sensors indirectly measure airflow, MAF sensors directly gauge incoming air volume and density. The choice depends on system requirements, balancing accuracy, precision, and sensitivity to environmental factors for optimal engine performance. Understanding their differences aids in selecting the most suitable sensor.
What does a MAP sensor do?
A MAP (Manifold Absolute Pressure) sensor measures the pressure within an engine’s intake manifold. It provides critical data for adjusting fuel injection and optimizing engine performance.
How does a MAP sensor work?
The MAP sensor monitors the pressure in the intake manifold and converts it into electrical signals. These signals help the Engine Control Unit (ECU) determine the engine’s load, adjusting fuel injection accordingly.
Where is the MAP sensor located?
The MAP sensor can be found on or near the intake manifold, attached to the throttle body or close to the vacuum hose within the engine bay.
What are the different types of MAP sensors?
Variants include varistor-type Manifold Absolute Pressure Sensors, capacitive-type MAP sensors, hybrid MAP sensors, and piezoresistive-type MAP sensors. Each type utilizes different mechanisms to measure manifold pressure.
How important is a MAP sensor for engine performance?
Extremely important. A properly functioning Manifold Absolute Pressure Sensor ensures the engine receives the right fuel-air mixture, optimizing fuel efficiency and overall performance.
What are the signs of a failing MAP sensor?
Common signs include engine hesitation, rough idling, a decrease in fuel efficiency, or a check engine light coming on.
Can a dirty MAP sensor cause problems?
Yes, dirt or debris accumulation on the sensor can affect its accuracy, leading to performance issues. Regular maintenance can prevent this problem.
Can I clean a MAP sensor?
Cleaning the MAP sensor might help in some cases of dirt buildup. However, it’s crucial to use proper cleaning methods or consult a professional to avoid damaging the sensor.
How often should the MAP sensor be replaced?
There’s no fixed interval for replacement. It’s recommended to replace it if there are noticeable performance issues or if diagnostics indicate sensor failure.
Can I drive with a faulty MAP sensor?
It’s not recommended. A faulty Manifold Absolute Pressure Sensor can negatively impact engine performance and fuel efficiency. It’s best to address the issue promptly for optimal vehicle operation.
