Wavelength And Frequency: 2 Important Parameters

|

Introduction

Wavelength and frequency are fundamental concepts in physics and are closely related to one another. They describe the properties of waves and electromagnetic radiation, playing a crucial role in various scientific disciplines and everyday applications. In this article, we will delve into the intricate relationship between wavelength and frequency, exploring their definitions, formulas, and significance. So, let’s embark on this enlightening journey through the fascinating realm of wave properties.

Wavelength And Frequency: 2 Important Parameters

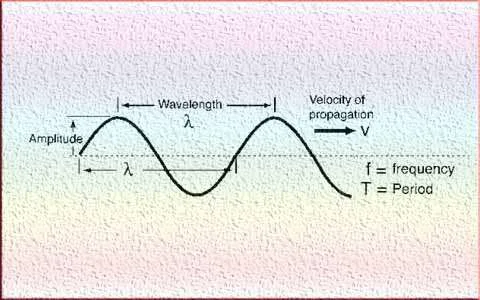

Wavelength

Wavelength refers to the distance between two consecutive points on a wave that are in phase with each other. It is commonly denoted by the Greek letter lambda (λ) and is expressed in units such as meters (m), nanometers (nm), or angstroms (Å). In simple terms, wavelength represents the spatial extent of one complete cycle of a wave, indicating how far the wave travels during a single oscillation.

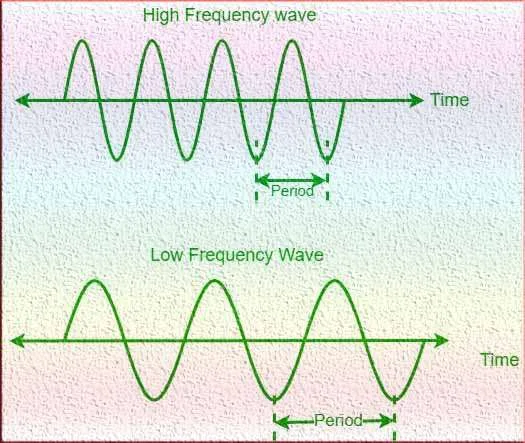

Frequency

Frequency, denoted by the symbol “f,” represents the number of cycles or oscillations of a wave that occur per unit of time. It is measured in hertz (Hz), where 1 Hz corresponds to one cycle per second. Frequency is inversely proportional to the time taken for one complete cycle of a wave. In other words, higher frequency waves complete more cycles in a given time period than lower frequency waves.

Relationship between Wavelength and Frequency:

Wavelength and frequency are intimately connected through the speed of the wave. The speed of a wave is defined as the distance it travels per unit of time. Mathematically, the speed of a wave (v) is equal to the product of its wavelength (λ) and frequency (f). This relationship is encapsulated in the following formula:

v = λf

This formula, known as the wave equation, demonstrates that the wavelength and frequency of a wave are inversely proportional to each other, given a constant speed. When the wavelength increases, the frequency decreases, and vice versa.

Wavelength And Frequency: 2 Important Parameters

Wavelength and frequency Applications

Understanding the relationship between wavelength and frequency has numerous practical applications across various scientific fields and everyday life. Here are a few examples:

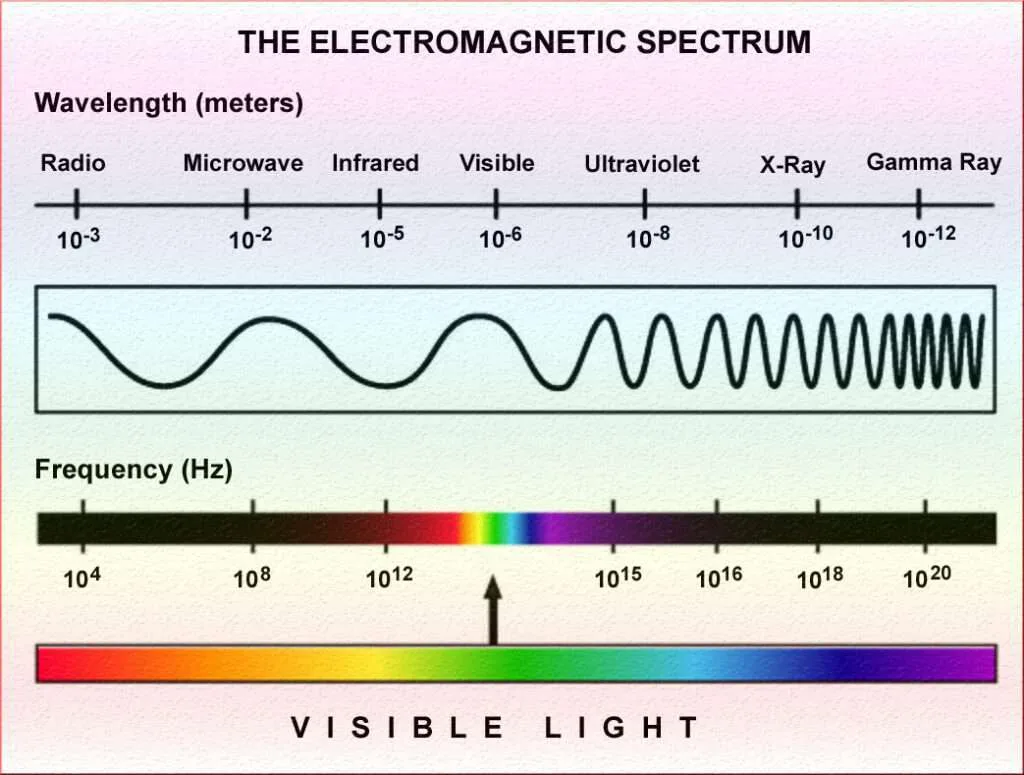

Electromagnetic Spectrum: The electromagnetic spectrum encompasses all forms of electromagnetic radiation, ranging from radio waves to gamma rays. In this spectrum, different regions correspond to different wavelengths and frequencies, such as radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays. Each region has unique properties and applications, from wireless communication to medical imaging.

Electromagnetic Spectrum, Wavelength And Frequency

Light and Color: In the visible light spectrum, different colors correspond to different wavelengths. Red light has a longer wavelength and lower frequency compared to blue light, which has a shorter wavelength and higher frequency. This relationship between wavelength and color is responsible for the vibrant array of colors we perceive in the world around us.

Sound Waves: In the realm of sound, the wavelength and frequency dictate the pitch and tone of a sound. Higher frequency sound waves have shorter wavelengths and are perceived as higher-pitched sounds, while lower frequency sound waves have longer wavelengths and are perceived as lower-pitched sounds.

Radio Communication: Radio waves, with longer wavelengths and lower frequencies, are utilized for long-distance communication. Broadcasting stations transmit signals at specific frequencies, allowing receivers tuned to those frequencies to capture the transmitted information.

Examples of Wavelength and Frequency

Let’s provide some examples to illustrate the concepts of wavelength and frequency in different contexts:

Water Waves

Imagine standing on a beach and observing waves in the ocean. As the waves approach the shore, you notice that they consist of successive crests and troughs. The distance between two adjacent crests or troughs represents the wavelength of the water wave. You can measure this distance using a ruler or by counting the number of waves that pass a fixed point.

Now, let’s say you observe that the distance between two crests is 5 meters. In this case, the wavelength of the water wave is 5 meters.

The frequency of the water wave would be determined by how often a crest passes a fixed point within a specific time interval. For instance, if you count 10 crests passing a fixed point in 20 seconds, the frequency of the wave would be 0.5 Hz (10 crests / 20 seconds).

Sound Waves

Consider a musical instrument, such as a guitar or a piano. When you pluck a guitar string or strike a piano key, it sets the air molecules around it into motion, creating sound waves. These sound waves propagate through the air as compressions (high-pressure regions) and rarefactions (low-pressure regions).

The wavelength of a sound wave is determined by the distance between two adjacent compressions or rarefactions. For instance, let’s assume that the distance between two consecutive compressions in a sound wave is 1 meter. In this case, the wavelength of the sound wave would be 1 meter.

The frequency of the sound wave is related to the pitch of the sound. Higher-pitched sounds have higher frequencies, while lower-pitched sounds have lower frequencies. For example, if the sound wave produces a frequency of 440 Hz, it corresponds to the musical note A4.

Electromagnetic Waves

Electromagnetic waves encompass a broad spectrum, including radio waves, microwaves, infrared radiation, visible light, ultraviolet radiation, X-rays, and gamma rays. Each of these regions has unique wavelengths and frequencies.

For instance, consider visible light. Within the visible light spectrum, different colors correspond to different wavelengths and frequencies. Red light has a longer wavelength (around 700 nm) and a lower frequency, while blue light has a shorter wavelength (around 400 nm) and a higher frequency.

Applications in everyday life involve technologies that utilize different regions of the electromagnetic spectrum. For example, radio waves with longer wavelengths and lower frequencies are employed in radio and television broadcasting, while X-rays with shorter wavelengths and higher frequencies are used in medical imaging.

These examples highlight how wavelength and frequency manifest in various phenomena, from water waves and sound waves to electromagnetic waves, showcasing their importance in understanding the behavior of waves and their practical application.

Rainbow

In the context of wavelength and frequency, a rainbow is a fascinating natural phenomenon that occurs when sunlight interacts with water droplets in the atmosphere. It beautifully demonstrates the dispersion of light and the relationship between wavelength and color perception.

When sunlight passes through raindrops in the air, the light is refracted (bent) as it enters and exits the droplets. This refraction causes the light to separate into its constituent colors, which have different wavelengths. This phenomenon is known as dispersion.

The different wavelengths of light undergo different degrees of refraction and form a continuous spectrum of colors. This spectrum includes the colors of the visible light spectrum: red, orange, yellow, green, blue, indigo, and violet (ROYGBIV). Each of these colors corresponds to a specific wavelength.

The shortest visible wavelength is violet, with a wavelength of approximately 400 nanometers (nm), while the longest visible wavelength is red, with a wavelength of approximately 700 nm. As a result, when we observe a rainbow, we see a band of colors arranged in a specific order, with red appearing on the outer edge and violet on the inner edge.

The formation of a rainbow involves both reflection and refraction of light. As the light enters the water droplets, it is refracted, then partially reflected off the inner surface of the droplet, and finally refracted again as it exits the droplet. This process causes the light to spread out and form the characteristic semicircular shape of a rainbow.

Additionally, the observation of a rainbow is dependent on the position of the viewer relative to the light source (usually the Sun) and the raindrops. For a rainbow to appear, the viewer’s back must be facing the Sun, while raindrops in the atmosphere scatter and refract the sunlight towards the observer.

The vibrant colors of a rainbow provide a visual representation of the relationship between wavelength and color perception. The longer wavelengths, such as red and orange, are associated with lower frequencies, while the shorter wavelengths, such as violet and blue, have higher frequencies. The dispersion and arrangement of these colors in a rainbow showcase the intricate interplay between wavelength, frequency, and the natural phenomenon of light interacting with water droplets in the atmosphere.

Overall, a rainbow serves as a stunning example of how the principles of wavelength, frequency, and dispersion manifest in nature, creating a breathtaking display of colors in the sky.

Conclusion

Wavelength and frequency are interconnected properties that govern the behavior of waves and electromagnetic radiation. The inverse relationship between wavelength and frequency, expressed by the wave equation, is a fundamental concept in physics. Understanding this relationship is crucial in various scientific fields, including optics, acoustics, and wireless communication. By appreciating the significance of wavelength and frequency, we can unravel the mysteries of the physical world and harness their applications for the betterment of society.

Follow us on LinkedIn”Electrical Insights” to get the latest updates in Electrical Engineering. You can also Follow us LinkedIn to see our latest posts.

Frequently Asked Questions

What is the relationship between wavelength and frequency?

The relationship between wavelength and frequency is inverse. As the wavelength of a wave increases, its frequency decreases, and vice versa.

How are wavelength and frequency related in the context of electromagnetic waves?

In the context of electromagnetic waves, wavelength and frequency are inversely proportional. As the wavelength of an electromagnetic wave increases, its frequency decreases, and vice versa.

Can you explain the concept of wavelength in simple terms?

Wavelength refers to the distance between two consecutive points on a wave that are in phase, such as two adjacent crests or troughs. It represents the length of one complete cycle of a wave.

Can you explain the concept of frequency in simple terms?

Frequency refers to the number of complete cycles or oscillations of a wave that occur in a given unit of time. It represents how frequently the wave repeats itself within a specific time period.

How do you calculate the wavelength of a wave?

The wavelength of a wave can be calculated by dividing the speed of the wave by its frequency. Mathematically, it is expressed as λ = v/f, where λ represents the wavelength, v represents the wave’s speed, and f represents the frequency.

How do you calculate the frequency of a wave?

The frequency of a wave can be calculated by dividing the speed of the wave by its wavelength. Mathematically, it is expressed as f = v/λ, where f represents the frequency, v represents the wave’s speed, and λ represents the wavelength.

What are the units of wavelength and frequency?

The unit of wavelength is typically expressed in meters (m) or its submultiples such as millimeters (mm) or nanometers (nm). The unit of frequency is Hertz (Hz), which represents cycles per second.
