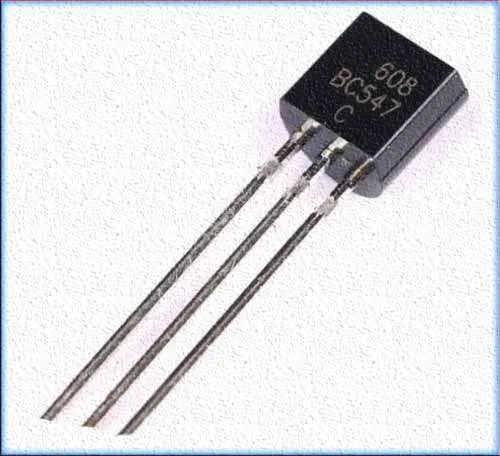

BC547 Substitute: Alternatives for the Popular NPN Transistor

| | |

When searching for electronic components, finding suitable substitutes or alternatives for widely used parts like the BC547 is crucial. In this article, we will explore some common BC547 substitute that offer similar electrical characteristics and can be used as replacements in various electronic circuits.

Whether the BC547 is unavailable or not the best fit for a specific application, having knowledge of suitable substitutes is valuable for designers and hobbyists.

BC547 Substitute

BC547 Substitute

Substitute 1: 2N3904 The 2N3904 is an NPN transistor that serves as an excellent BC547 substitute due to its comparable electrical specifications and widespread availability. It features a TO-92 package and is widely used in small-signal applications.

Substitute 2: 2N2222A The 2N2222A is another popular NPN transistor that can be used as a substitute. It comes in a TO-18 or TO-92 package and has similar electrical characteristics, making it a reliable choice for various applications.

Substitute 3: PN2222A The PN2222A is a close match to the BC547 in terms of its NPN configuration, current ratings, and package type. As a result, it can be used as a direct replacement in many circuits.

Substitute 4: BC548 The BC548 is a member of the BC54x family and shares similar specifications with the BC547. It is also an NPN transistor and is often used as a substitute when the BC547 is not available.

Substitute 5: 2N4401 The 2N4401 is an NPN transistor with electrical characteristics comparable to the BC547. It comes in a TO-92 package and is widely used in amplification and switching applications.

Substitute 6: 2N2222 The 2N2222 is a predecessor to the 2N2222A and exhibits similar performance to the BC547. It is available in TO-18 and TO-92 packages, making it suitable for various circuit layouts.

Substitute 7: 2N3904G The 2N3904G, a variant of the 2N3904, is a popular choice as a substitute. With similar electrical characteristics and TO-92 packaging, it is a readily available alternative.

BC547 Substitute 8: 2N4403 For complementary pair applications, the 2N4403 is a PNP transistor that can be paired with the BC547. Together, they create a complementary switching or amplification setup.

BC547 Substitute 9: BC546 The BC546, like the BC548, is part of the BC54x family and shares comparable characteristics with the BC547. It is another suitable alternative, especially in low-power applications.

Substitute 10: 2N2222G The 2N2222G is a variant of the 2N2222A and offers similar electrical performance. It is available in TO-92 packaging, making it a compatible alternative to the BC547 in various circuits.

In conclusion, these substitutes offer designers and hobbyists a range of options when the BC547 is not readily available or may not be the best fit for a specific application.

Always refer to the datasheets and consider the specific requirements of your circuit to choose the most appropriate alternative. These alternative transistors are widely used and easily accessible, providing flexibility and ease of use in electronic projects.
