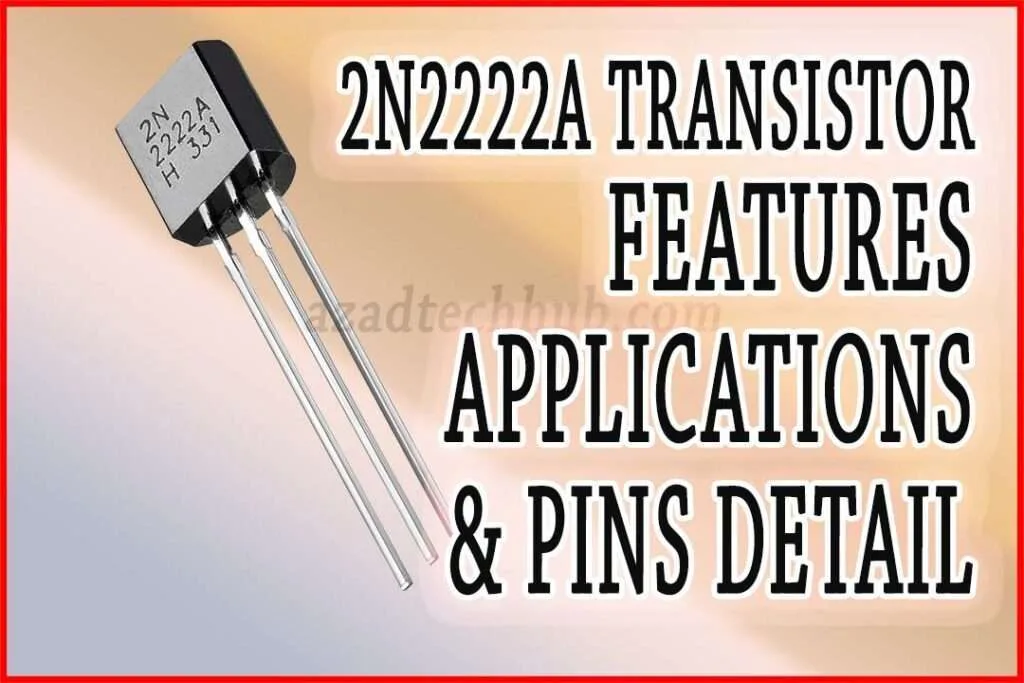

2N2222A Transistor: Important Features & Applications



The 2N2222A transistor is a widely used bipolar junction transistor (BJT) that offers excellent performance and versatility in a variety of electronic applications. Its compact size, low cost, and reliable operation make it a popular choice among hobbyists, engineers, and electronics enthusiasts.

2N2222A Transistor: Important Features & Applications

In this article, we will delve into the key features, applications, and specifications of the 2N2222 A transistor, shedding light on its importance in modern electronic circuits.

Key Features of the 2N2222A Transistor

The 2N2222A transistor boasts several notable features that contribute to its widespread adoption. Here are some key features:

NPN Bipolar Junction Transistor: The 2N2222A is an NPN transistor, which means it consists of three layers of semiconductor material: the emitter, base, and collector. This configuration allows for the amplification of current and control of electronic signals.

High Current Gain: With a typical DC current gain (hFE) ranging from 75 to 300, the 2N2222 A transistor provides significant amplification capabilities, making it suitable for various applications requiring signal amplification.

Low Power Consumption: The 2N2222A transistor is designed for low-power applications, consuming minimal power while delivering reliable performance. This feature contributes to its efficiency and suitability for battery-operated devices.

Fast Switching Speed: The 2N2222 A transistor exhibits fast switching characteristics, allowing it to switch between on and off states rapidly. This attribute is crucial in applications where quick response times are required.

Applications of the 2N2222A Transistor

The 2N2222A transistor finds extensive usage in a broad range of electronic circuits and applications. Here are some common applications:

Signal Amplification: The high current gain of the 2N2222 A transistor makes it an ideal choice for amplifying weak signals in audio and radio frequency (RF) circuits. It can boost signal strength, improving overall system performance.

Switching Applications: Due to its fast switching speed and small form factor, the 2N2222A transistor is commonly employed in switching applications. It enables efficient control of power delivery, making it suitable for tasks such as relay driving and digital logic circuitry.

Oscillators and Generators: The 2N2222A transistor’s ability to operate at high frequencies and deliver stable performance makes it well-suited for use in oscillators and signal generators. These applications often require precise waveform generation.

LED Drivers: The 2N2222A transistor can be utilized to drive LEDs (Light Emitting Diodes) efficiently. It enables the control of LED current, ensuring optimal brightness and longevity of the LEDs.

Specifications of the 2N2222A Transistor

To fully understand the capabilities of the 2N2222A transistor, it is important to consider its specifications:

Maximum Collector Current (IC): The 2N2222 A transistor can handle a maximum collector current of 800 mA, which determines its current-carrying capacity.

Maximum Collector-Emitter Voltage (VCEO): The maximum voltage the 2N2222A transistor can withstand across its collector and emitter terminals is 30 V. Operating beyond this limit may result in damage to the device.

Maximum Power Dissipation (PD): The 2N2222A transistor has a maximum power dissipation rating of 500 mW, which indicates the maximum amount of power it can safely handle without overheating.

Transition Frequency (fT): The transition frequency of the 2N2222A transistor is typically around 300 MHz. This parameter represents the frequency at which the transistor begins to exhibit reduced gain.

Operating Temperature Range: The 2N2222A transistor can operate within a temperature range of -65°C to +150°C, making it suitable for a wide range of environmental conditions.

2N2222A transistor pinout

The 2N2222A transistor follows a standard pinout configuration. The transistor has three pins: the emitter (E), the base (B), and the collector (C). The pin configuration is as follows:

Emitter (E): The emitter is typically the leftmost pin when viewing the flat side of the transistor, and it is marked as “E” in the diagram. The emitter is responsible for emitting or controlling the flow of current in the transistor.

Base (B): The base is the middle pin, labeled as “B” in the diagram. It serves as the control terminal for the transistor, allowing or restricting the flow of current between the emitter and collector.

Collector (C): The collector is the rightmost pin, denoted as “C” in the diagram. It collects the current flowing through the transistor and is responsible for outputting or transferring the current to other components or circuits.

It’s essential to note that the orientation of the transistor might vary depending on the manufacturer or package style. Always refer to the datasheet or markings on the transistor itself to confirm the pinout configuration.

Considerations Selecting 2N2222A Transistor

When designing a low-power audio amplifier, selecting the right transistor is crucial for achieving optimal performance. The 2N2222A transistor emerges as an excellent choice for such applications. Its high current gain (hFE) ranging from 75 to 300 ensures efficient signal amplification, allowing weak audio signals to be boosted to adequate levels without introducing significant distortion. This feature is particularly beneficial in scenarios where audio sources have low output levels, such as in portable music players or small speaker systems.

Moreover, the 2N2222A transistor’s low power consumption is a key advantage in energy-conscious designs. By minimizing power requirements, it enables longer battery life for portable audio devices, making it an ideal component for on-the-go applications. Additionally, the 2N2222 A transistor’s low power dissipation rating of 500 mW helps prevent overheating, ensuring reliable operation and prolonging the lifespan of the amplifier circuit.

Another notable advantage of the 2N2222A transistor is its compact size. This characteristic allows for space-efficient circuit design, making it suitable for compact electronic projects where size constraints are present. Whether you are designing a portable headphone amplifier, a mini stereo system, or a small audio module, the 2N2222 A transistor’s small form factor enables you to create sleek and compact audio solutions without compromising on performance.

In summary, the 2N2222A transistor is an ideal choice for low-power audio amplifiers due to its high current gain, low power consumption, and compact size. By incorporating the 2N2222 A transistor into your amplifier circuit, you can achieve efficient signal amplification, extended battery life, and space-saving design. Whether you are an electronics hobbyist or a professional audio engineer, the 2N2222A transistor is a reliable and versatile component that enhances the performance and functionality of your audio projects.”

The Equivalent of 2N2222A transistor

The 2N2222A transistor has several equivalent transistors that can be used as substitutes in electronic circuits. Here are a few commonly used equivalents:

PN2222A: The PN2222A is a direct equivalent of the 2N2222 A transistor. It has similar characteristics and can be used as a drop-in replacement in most applications.

NTE123AP: The NTE123AP is an equivalent transistor that shares similar specifications and characteristics with the 2N2222A. It can be used interchangeably in various circuits.

BC547: The BC547 is a popular general-purpose NPN transistor that can be used as an alternative to the 2N2222A. It has comparable specifications and is widely available.

2SC1815: The 2SC1815 is another suitable replacement for the 2N2222 A transistor. It is an NPN transistor commonly used in low-power amplification and switching applications.

It’s important to note that while these transistors are considered equivalent, there may be slight variations in their specifications and characteristics. It’s always recommended to consult the datasheets and compare the specifications to ensure proper functionality and compatibility in a specific circuit.


The 2N2222A transistor is a versatile and widely used component in electronic circuits due to its compact size, low cost, and reliable performance. Its features, such as high current gain, low power consumption, and fast switching speed, make it suitable for applications. Such as signal amplification, switching circuits, oscillators, and LED drivers.

Understanding the specifications of the 2N2222 A transistor, including its maximum collector current, voltage, power dissipation, and transition frequency, is crucial for selecting the appropriate transistor for specific circuit requirements. Incorporating the 2N2222A transistor into your electronic projects can enhance functionality and performance, making it an invaluable component in the world of electronics.
