A rheostat is like an adjustable knob that lets you control the volume on your speakers, but instead of sound, it deals with electrical current. It’s a variable resistor that allows us to manage the flow of electricity in a circuit.
Inside this gadget, there’s a resistive material, often a coiled wire or carbon film, along with a moveable contact. By shifting this contact along the resistive material, we essentially change the path that the electrical current takes. And this switch-up in the path directly affects the resistance, which in turn influences how much electricity can move through.
In simpler terms, back in the day, rheostats were the key players behind dimmer switches, giving us control over the brightness of our lights. They’ve been the go-to for managing speeds in fans too. While digital controls are taking over, there are still situations where these analog champs are just what we need for precise control over electrical currents.
Read More About

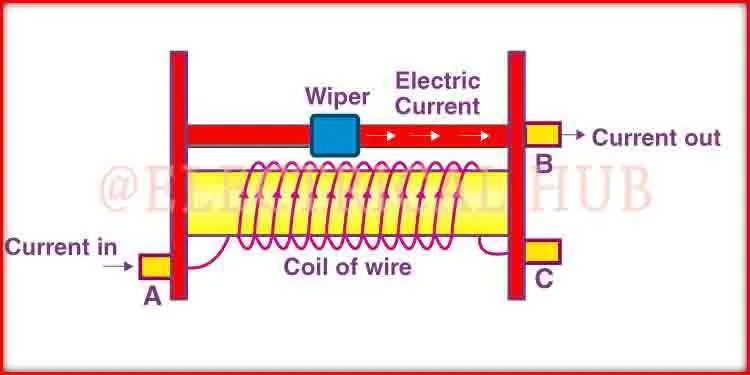

Working of Rheostat
Let’s dive into how a rheostat works! Picture a hose controlling the flow of water. Similarly, a rheostat manages the flow of electrical current in a circuit.
Inside this gadget, there’s a coiled wire or a carbon film that acts as a resistor. Now, when we turn the knob or adjust the slider on a rheostat, we’re actually changing the position of a moveable contact along this resistive material.
This shift in position alters the path the electricity takes. The longer the distance the current has to travel through the resistive material, the higher the resistance, and therefore, less current flows. On the flip side, reducing the distance means less resistance, allowing more current to pass through.
It’s a bit like opening or closing a tap to regulate the flow of water. In electrical terms, the rheostat helps us precisely control the amount of current in a circuit by modifying the resistance. And this flexibility makes it handy in various applications where we need that fine-tuning of electrical flow.
Construction of Rheostat
At its core, a rheostat is primarily composed of a resistive element, a moveable contact, and terminals to connect it to an electrical circuit.
The resistive element, often made of materials like coiled wire or carbon film, is the key component. This element determines the amount of resistance in the circuit. When we adjust the knob or slider on a rheostat, we’re altering the contact point along this resistive material.
The moveable contact, usually connected to the knob or slider, plays a crucial role. As we adjust the rheostat, this contact moves across the resistive element, changing the length of the path that the electrical current travels. This change in length adjusts the amount of resistance in the circuit, thus regulating the flow of electricity.
Terminals are also essential components, allowing the rheostat to be connected into an electrical system. These terminals facilitate the flow of current from the power source through the resistive element, and then to the load or the device being powered.
This construction design, where the moveable contact modifies the length of the resistive material’s path, provides precise control over the amount of resistance in the circuit, offering flexibility in managing electrical flow.

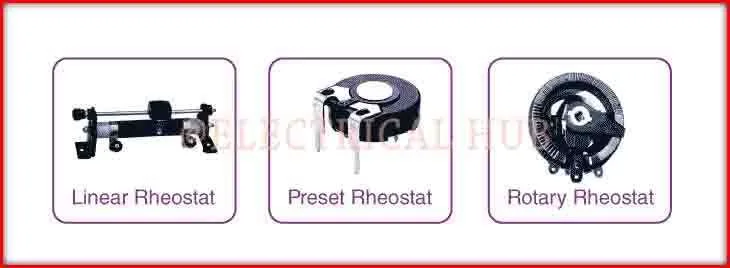

Types of Rheostat
Rheostats come in various types based on their construction, material, and application. Here are some common types of rheostats:
Wirewound Rheostats: Constructed using a wire wound around an insulating core, these rheostats offer precise resistance control and higher power ratings.
Tapped Rheostats: Featuring multiple contact points (taps) along the resistive element, these allow for different resistance levels to be selected by changing the contact point.
Stepped Rheostats: Similar to tapped rheostats, they have discrete fixed resistances rather than a continuous range, enabling quick selection of specific resistance values.
Potentiometer (Pot): Although different in function, potentiometers can function as variable resistors. They have a resistive element and a wiper that slides across it, allowing variable resistance.
Precision Rheostats: Designed for high-precision applications, these rheostats offer extremely accurate resistance values and stable performance.
Cermet Rheostats: Utilize cermet materials (ceramic and metallic particles) for resistance, providing stability, accuracy, and reliability in various environmental conditions.
Digital Rheostats: Modern variants that utilize digital controls for setting resistance values precisely through electronic means, often used in automated systems and digital circuits.
Applications of Rheostat
Rheostats have a variety of applications across different fields due to their ability to control current in a circuit by adjusting resistance. Here are some common applications:
Lighting Control: These are commonly integrated into dimmer switches, allowing users to adjust the brightness of lights in homes, offices, or commercial spaces. This feature not only sets the desired ambiance but also aids in energy conservation by regulating light intensity.
Heating Elements: Appliances like electric stoves, toasters, and heaters rely on rheostats to manage and regulate the amount of heat they generate. This precise control enables users to set specific temperatures suited to their needs.
Fan Speed Control: In certain fan models, particularly older ones, These are used to control fan speeds. This functionality provides flexibility in adjusting airflow, catering to individual comfort preferences.
Electrical Testing and Calibration: Laboratories and industrial environments utilize rheostats for circuit testing, instrument calibration, and emulating variable resistance in electrical systems. This capability aids in accurate analysis and calibration processes.
Motor Speed Control: Industrial machinery incorporates These to regulate the speed of motors. This application finds use in conveyor belts, pumps, and other automated systems, ensuring precise control over motor speeds.
Educational Demonstrations: Rheostats serve as valuable educational tools to demonstrate principles related to resistance, current flow, and circuit control. They help students understand fundamental concepts in electrical engineering and related fields.
Musical Instruments: Electric musical instruments like guitars and keyboards may utilize These to control volume, tone, or other electrical characteristics affecting sound production. This feature allows musicians to adjust and fine-tune their instrument’s output.
Rheostats are integral components across various domains, offering a means to precisely regulate electrical characteristics, thereby facilitating energy control, comfort customization, and technical precision in different applications.
Difference between Rheostat and Potentiometer
Here’s a comparison table outlining the differences between a rheostat and a potentiometer:
Controls current in a circuit by adjusting resistance
Measures or controls voltage by adjusting resistance
Typically has two terminals
Usually has three terminals (two fixed ends and a wiper)
Primarily used to vary current in a circuit
Used for voltage division, measurement, or control
Dimmer switches, heating elements, motor speed control
Volume controls, voltage regulators, sensor calibration
Linear or rotary configuration
Linear, rotary, or multiturn configurations
Produces a variable resistance
Yields a variable voltage output between fixed ends
Both devices rely on varying resistance, but their primary functions and typical applications differ significantly.
What is a rheostat?
A rheostat is an electrical component that controls current flow in a circuit by varying resistance. It typically consists of a resistive wire or material that can be adjusted to change the amount of current passing through it.
How does a rheostat differ from a potentiometer?
Rheostats are primarily used for controlling current, while potentiometers are used for voltage division or control. These typically have two terminals and adjust resistance in a circuit, whereas potentiometers have three terminals and can divide voltage or act as variable voltage dividers.
What are the applications of rheostats?
Rheostats find applications in various fields, including lighting control (dimmer switches), heating elements regulation, fan speed control, motor speed regulation, electrical testing, educational demonstrations, and even in musical instruments for controlling volume or tone.
How does a rheostat work?
Rheostats work by adjusting the amount of resistance in an electrical circuit. As the resistance is increased or decreased, the current passing through the circuit is also varied accordingly.
What are the types of rheostats available?
Rheostats come in different forms, including wire-wound, carbon-composition, and semiconductor-based variable resistors. They can also be classified based on their configurations, such as rotary, linear, or multiturn.
Where are rheostats commonly used in daily life?
Rheostats are commonly found in dimmer switches for lights, electric stoves, heaters, some fans for speed control, and in certain electric musical instruments to adjust volume or tone.
Can rheostats be used for precise resistance control?
While rheostats are effective for adjusting resistance, they might not offer the same precision as some other variable resistors like potentiometers or specialized digital resistors. However, they can still provide substantial control over resistance within a circuit.
Are there any safety considerations when using rheostats?
It’s important to handle properly, especially if they are handling high currents or voltages. Ensure proper insulation and follow manufacturer guidelines to prevent overheating or electrical hazards.
