Overload Setting for 3-Phase Motor

Setting the correct overload setting for 3-phase motor is crucial. It protects your motor from damage due to excessive current. When a motor runs under too much load, it can overheat, reduce efficiency, and eventually fail. That’s why understanding how to set overload relays properly is essential in any industrial or commercial setting.

What is Overload in a 3-Phase Motor?

An overload condition occurs when a motor draws more current than its rated full-load current for an extended time. This doesn’t mean a short circuit, but a sustained higher load. In 3-phase motors, this situation is often due to mechanical binding, phase loss, or incorrect sizing.

Why the Correct Overload Setting Matters

An accurate overload setting for 3-phase motor helps ensure:

• Motor longevity
• Energy efficiency
• Safety of equipment and personnel
• Compliance with industry standards

Incorrect settings can lead to nuisance trips or, worse, motor burnout.

Understanding Overload Relays

Overload relays are protective devices. They trip the motor when it draws more current than it should. There are two main types:

1. Thermal Overload Relays – Use bimetallic strips to sense heat.
2. Electronic Overload Relays – Use sensors and provide adjustable settings.

Thermal overloads are simple but less accurate. Electronic ones offer precision and additional features like phase loss protection.

Where Overload Relays Fit

They are placed in the motor protection circuit breaker or motor starter circuit. Alongside circuit breakers and contactors, they form part of the motor circuit protection tables used by electrical engineers.

How to Determine the Overload Setting for 3-Phase Motor

You need the motor’s full-load current (FLC). This is usually found on the motor’s nameplate or in manufacturer data sheets. Then use a suitable overload setting range—typically 115% of FLC for general motors.

Overload Setting Calculation Formula

Overload Setting (%) = Full-Load Current × Overload Factor

• General Rule: Set the relay at 115% of FLC
• For motors with long startup times: Set closer to 125%
• For continuous-duty motors: Often set at 110%

Example:

If FLC = 10 A

Then, overload setting = 10 × 1.15 = 11.5 A

This ensures the motor trips only when it runs too hot or is overloaded beyond safe limits.

Overload Setting Table for 3-Phase Motors

Below is a typical motor overload setting table for standard 3-phase motors at 400V:

This table helps set protection accurately. Always round settings down if in doubt, to avoid nuisance tripping.

Tips for Setting Overload Protection

Choose the Right Relay Type

• Use thermal relays for general-purpose motors.
• Use electronic relays for variable load or soft-start motors.

Confirm Phase Balance

Unbalanced phases can cause one line to draw more current, which may not trip a standard overload relay. Use advanced electronic relays for such situations.

Check Coordination with Breakers

Ensure your motor protection circuit breaker and overload relay coordinate. A breaker handles short circuits. A relay handles overloads. Both must work together to fully protect the motor.

Allow for Ambient Conditions

In hot environments, motors run closer to maximum temperature. You might need to derate your overload settings. Check the relay’s ambient compensation features.

Match to Start-Up Characteristics

Some motors draw high current briefly during startup. Avoid nuisance trips by setting the relay above that level, but not too high to miss overload conditions.

Motor Overload Setting Table: NEC Guidelines

The National Electrical Code (NEC) offers guidelines for overload protection:

These help set overloads conservatively to balance safety and reliability.

Common Mistakes in Overload Setting

• Setting too high – The motor may never trip until it burns out.
• Setting too low – Frequent trips can interrupt operations.
• Not adjusting for environment – Heat affects relay performance.
• Ignoring motor load profile – Different motors have different demands.

Avoid these errors to ensure efficient and safe operation.

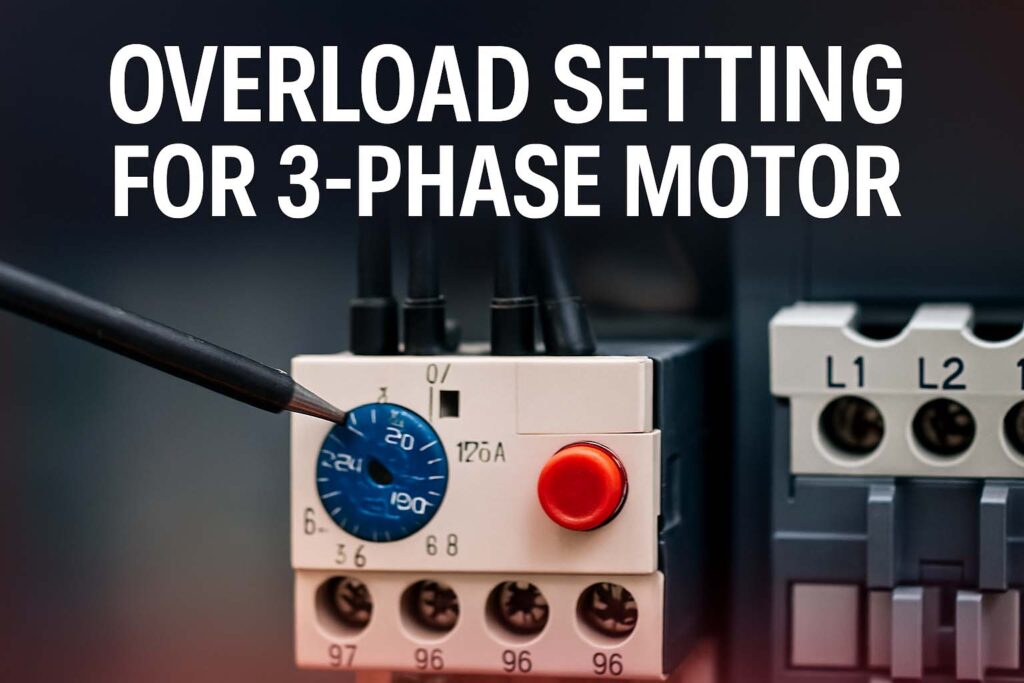

How to Adjust Overload Settings on a Relay

For Thermal Relays:

1. Locate the adjustment dial.
2. Turn it to the desired setting in amps.
3. Make sure the setting matches 115% of FLC.

For Electronic Relays:

1. Use the interface or DIP switches.
2. Enter motor FLC and select trip class.
3. Save settings and test the relay if possible.

Many electronic models also allow you to set:

• Trip class (e.g., 10, 20, 30)
• Phase imbalance sensitivity
• Ground fault protection

These advanced features improve motor life.

Testing the Overload Protection

Once you set it, test it:

• Manual trip – Many relays allow this to verify trip circuits.
• Load test – Slowly increase motor load and observe response.
• Thermal imaging – Check if motors overheat during normal use.

Testing confirms the settings work as expected.

Practical Example of Overload Setting for 3-Phase Motor

Imagine you have a 7.5 kW motor:

• Nameplate FLC: 13.2 A
• Type: General purpose
• Ambient: 30°C
• Duty: Continuous

Using the standard factor (115%):

• Overload Setting = 13.2 × 1.15 = 15.18 A
• Set your relay to the closest setting ≤ 15.18 A (often 15 A)

This ensures safe operation while avoiding false trips.

Summary Table: Steps to Set Overload Protection

These steps give you a reliable method to apply across different motors.

Final Thoughts on Overload Setting for 3-Phase Motor

Setting the right overload setting for 3-phase motor is not just a task—it’s a necessity. It keeps your systems running smoothly and safely. The setting should never be guesswork. Instead, base it on sound engineering, nameplate data, and operating conditions.
