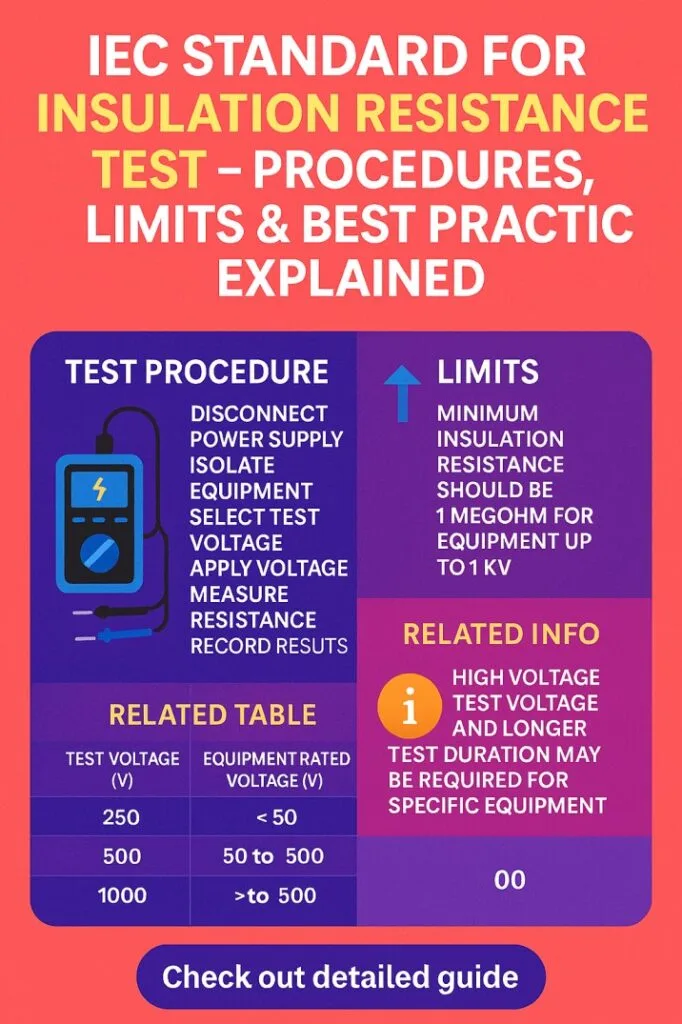

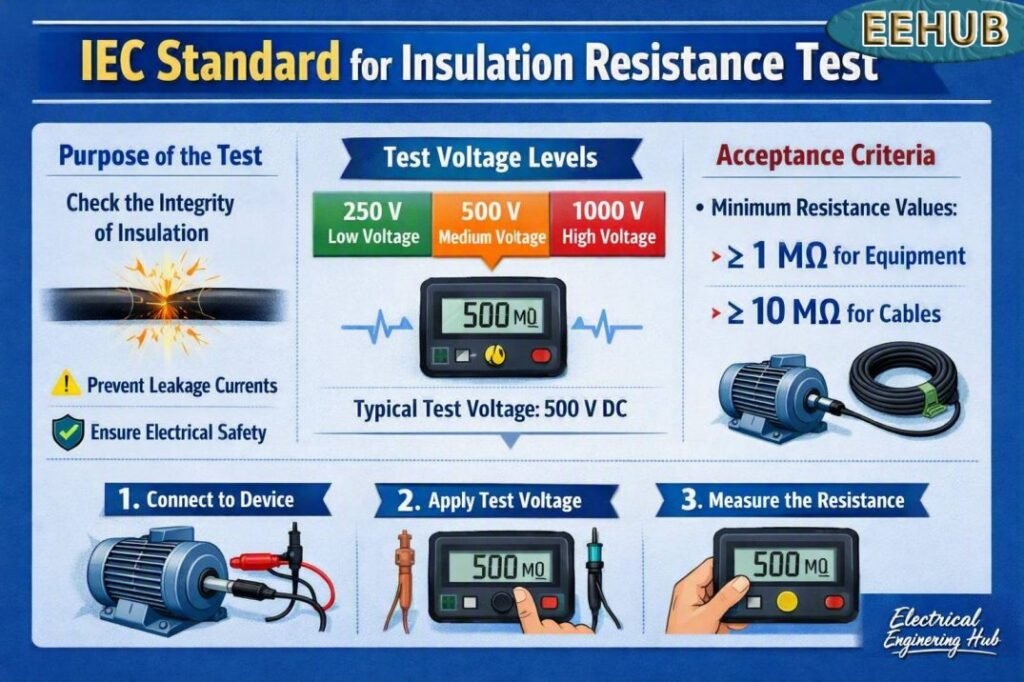

IEC Standard for Insulation Resistance Test – Procedures, Limits & Best Practices Explained
The IEC standard for insulation resistance test plays a critical role in ensuring electrical safety, system reliability, and long-term equipment performance. Insulation resistance testing is one of the most widely used diagnostic methods in electrical engineering, applied to cables, motors, transformers, switchgear, and industrial installations. International Electrotechnical Commission (IEC) standards provide globally accepted procedures and limits that help engineers assess insulation health accurately.
Table of Contents
This article explains the IEC standard for insulation resistance test in detail, covering applicable standards, testing procedures, acceptable limits, influencing factors, and best practices followed by professionals in the field.
What Is Insulation Resistance Testing
Insulation resistance testing measures the resistance offered by insulating materials against leakage current. A DC voltage is applied between conductors or between conductor and earth, and the resulting resistance is measured in megaohms (MΩ) or gigaohms (GΩ).
The IEC standard for insulation resistance test ensures that measurements are consistent, repeatable, and safe, regardless of equipment type or voltage class.
Know more about IEC Standard for Megger Test: Insulation Resistance Testing According to IEC Guidelines
Key objectives of insulation resistance testing include:
- Detecting insulation deterioration
- Preventing electric shock hazards
- Reducing risk of fire and equipment failure
- Verifying installation quality
- Supporting preventive maintenance programs
IEC Standards Applicable to Insulation Resistance Testing
Several IEC documents define requirements and guidance for insulation resistance measurement. The IEC standard for insulation resistance test is not limited to one document but covered across multiple standards depending on equipment type.
The most commonly referenced IEC standards are listed below.
| IEC Standard | Scope |
|---|---|
| IEC 60364-6 | Verification of low-voltage electrical installations |
| IEC 60034-1 | Rotating electrical machines |
| IEC 60502 | Power cables with extruded insulation |
| IEC 60204-1 | Electrical equipment of machines |
| IEC 61800-5-1 | Adjustable speed electrical power drive systems |
| IEC 61557-2 | Insulation resistance measuring instruments |
These standards collectively define how the IEC standard for insulation resistance test should be applied in practical scenarios.
Know more about IEC Standard for MV Cable Testing: Complete Acceptance, Routine & Type Test Guide
Test Equipment as Per IEC Requirements
The IEC specifies the use of insulation resistance testers, commonly known as megohmmeters or megger testers. According to the IEC standard for insulation resistance test, test instruments must meet accuracy and safety requirements defined in IEC 61557-2.
Common test voltages recommended by IEC include:
- 250 V DC
- 500 V DC
- 1000 V DC
- 2500 V DC
- 5000 V DC
Selection of test voltage depends on system rated voltage and insulation class.
IEC Recommended Test Voltages and Limits
The IEC standard for insulation resistance test provides guidance on minimum acceptable resistance values based on system voltage.
| System Voltage | Test Voltage (DC) | Minimum Insulation Resistance |
|---|---|---|
| ≤ 50 V | 250 V | 0.5 MΩ |
| 50 V – 500 V | 500 V | 1 MΩ |
| 500 V – 1000 V | 1000 V | 1 MΩ |
| > 1 kV | As per manufacturer | As specified |
These limits are general guidelines. Equipment-specific IEC standards may define higher thresholds.
Know more about IEC Standard for Medium Voltage Switchgear: Important Compliance Guide for Engineers
Step-by-Step Insulation Resistance Test Procedure
Following the IEC standard for insulation resistance test, the procedure should be systematic and documented.
Pre-Test Safety Checks
- Isolate and lock out the equipment
- Discharge stored energy in capacitors
- Disconnect sensitive electronics
- Verify absence of voltage
- Ensure correct PPE usage
Test Execution Steps
- Select the correct test voltage as per IEC guidance
- Connect test leads between conductors or conductor to earth
- Apply DC voltage for the specified duration
- Record resistance reading after stabilization
- Discharge the insulation after test completion
The IEC standard for insulation resistance test typically recommends a minimum test duration of 60 seconds for stable readings.
Know more about Electrical Continuity Tester Price 2026 – Best Deals & Expert Buying Guide
Factors Affecting Insulation Resistance Values
Insulation resistance readings are influenced by several environmental and operational factors. IEC emphasizes consideration of these variables during evaluation.
Key influencing factors include:
- Temperature of insulation
- Humidity and moisture presence
- Surface contamination
- Insulation aging
- Cable length and geometry
The IEC standard for insulation resistance test advises temperature correction when comparing readings taken at different times.
Polarization Index and Dielectric Absorption Ratio
While basic insulation resistance is useful, IEC standards also recognize time-based diagnostic ratios.
Polarization Index (PI)
PI is the ratio of insulation resistance at 10 minutes to 1 minute.
PI = IR at 10 min ÷ IR at 1 min
Typical interpretation:
| PI Value | Insulation Condition |
|---|---|
| < 1 | Poor |
| 1 – 2 | Questionable |
| 2 – 4 | Good |
| > 4 | Excellent |
Know more about IEC Standard for Ground Fault Protection Explained: Compliance, Requirements & Best Practices
Dielectric Absorption Ratio (DAR)
DAR compares resistance at 60 seconds and 30 seconds. The IEC standard for insulation resistance test recognizes DAR mainly for rotating machines and transformers.
Insulation Resistance Testing for Different Equipment
The IEC standard for insulation resistance test applies differently based on equipment type.
Cables and Wiring
- Test between phases
- Test phase to earth
- Longer cables naturally show lower resistance
Motors and Generators
- Test stator windings to earth
- Follow IEC 60034 guidance
- Consider PI values for condition assessment
Transformers
- Test HV to LV, HV to earth, LV to earth
- Consider temperature correction
- Follow manufacturer and IEC limits
Know more about Electrical Testing and Verification Course: 7 Powerful Reasons to Boost Your Career Today
Switchgear and Panels
- Ensure electronic components are isolated
- Test busbars and insulation barriers
- Verify post-installation compliance
Common Mistakes to Avoid
Despite clear guidance from the IEC standard for insulation resistance test, errors are common in field testing.
Avoid the following mistakes:
- Testing without isolating electronic devices
- Using incorrect test voltage
- Ignoring temperature effects
- Recording unstable readings
- Skipping post-test discharge
Proper training and adherence to IEC procedures reduce false failures and safety risks.
Best Practices Recommended by IEC
Experienced engineers follow several best practices aligned with the IEC standard for insulation resistance test.
- Maintain historical test records
- Use the same test voltage for trend analysis
- Perform tests under similar environmental conditions
- Combine IR testing with visual inspection
- Do not rely on resistance value alone
Consistent documentation enhances reliability-centered maintenance programs.
Know more about Top 12 Electrical Testing and Inspection Courses Online
Why IEC Compliance Matters
Compliance with the IEC standard for insulation resistance test ensures international acceptance of test results. It also improves safety audits, regulatory inspections, and equipment warranty compliance.
IEC-based testing supports:
- Reduced downtime
- Early fault detection
- Improved asset life
- Safer electrical installations
- Globally standardized practices
Conclusion
The IEC standard for insulation resistance test provides a structured, reliable, and globally accepted approach to evaluating insulation health in electrical systems. By understanding applicable standards, recommended limits, testing procedures, and best practices, engineers can make informed maintenance decisions and ensure system safety.
When performed correctly and consistently, insulation resistance testing becomes a powerful preventive tool rather than a simple pass-or-fail measurement. Adhering to IEC guidelines not only protects equipment but also safeguards personnel and operational continuity.
