IEC Standard for Harmonics – Complete Guide for Engineers and Industries

Harmonics in electrical systems are one of the most critical issues affecting power quality. They create voltage distortion, heating, and operational failures in sensitive equipment. To address this, the IEC standard for harmonics provides clear guidelines for permissible harmonic limits, measurement methods, and compliance requirements.

In industries with high nonlinear loads such as drives, inverters, and power electronics, harmonic control is essential for maintaining system efficiency and preventing downtime. These standards are globally recognized, helping organizations design systems that comply with international quality benchmarks.

The increasing adoption of renewable energy and variable-speed drives has amplified harmonic distortion in modern grids. This makes understanding and applying IEC harmonic standards more important than ever for engineers, consultants, and utility operators.

Key Takeaways

• IEC standards define harmonic limits for both voltage and current to maintain power quality.
• IEC 61000 series is the primary reference for harmonic emissions and immunity in electrical systems.
• Harmonic control improves efficiency, reduces losses, and extends equipment life.

What is the IEC Standard for Harmonics?

The IEC standard for harmonics refers to a set of international guidelines developed by the International Electrotechnical Commission (IEC) to limit harmonic distortion in electrical systems. Harmonics are unwanted frequency components that are integer multiples of the fundamental frequency (50 Hz or 60 Hz).

When nonlinear loads such as variable speed drives, UPS systems, and rectifiers draw current, they create harmonic currents. These currents distort the voltage waveform, resulting in increased losses, overheating, and malfunction of sensitive equipment.

IEC standards provide limits for:

• Harmonic current emissions from equipment.
• Voltage distortion levels on the power system.
• Testing and measurement procedures for compliance.

Know more about IEC Standard for DC Cable Sizing

Why Harmonic Control Matters in Modern Power Systems

The presence of harmonics leads to serious technical and economic issues:

• Overheating in transformers, motors, and cables.
• Tripping of protective devices due to false signals.
• Reduced efficiency of the power system.
• Failure of sensitive electronics.

By applying the IEC standard for harmonics, organizations ensure compliance, reduce penalties from utilities, and maintain system reliability.

Overview of IEC Standards Related to Harmonics

The IEC has issued a family of standards under the IEC 61000 series for electromagnetic compatibility (EMC), including harmonics. Here are the major ones:

These standards provide a structured framework for controlling harmonics across different applications.

Read our complete guide on IEC 61000 Standards.

IEC 61000-3-2 – Harmonic Current Limits for Small Equipment

IEC 61000-3-2 applies to equipment drawing ≤16 A per phase, commonly used in residential and commercial environments. It classifies equipment into four classes:

• Class A: Balanced three-phase equipment, appliances excluding those in other classes.
• Class B: Portable tools.
• Class C: Lighting equipment.
• Class D: Equipment with special waveforms (e.g., TVs, PCs).

Each class has specific harmonic current limits for orders like 3rd, 5th, 7th, etc. For example, Class A equipment must meet strict limits for odd harmonics up to the 39th order.

IEC 61000-3-12 – For Larger Loads

When equipment draws more than 16 A and up to 75 A per phase, IEC 61000-3-12 applies. These loads include industrial drives and commercial HVAC systems. The harmonic limits in this standard depend on system short-circuit power at the point of common coupling (PCC).

The permissible harmonic current I_h for each harmonic order h is defined by formulas involving system impedance and short-circuit ratio. This ensures compatibility without oversizing the network.

Know more about IEC Standard for DGA Analysis

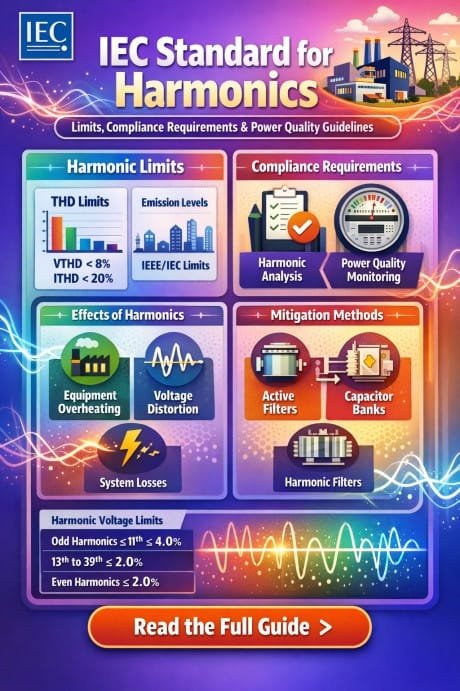

Voltage Harmonics Limits – IEC 61000-2 Series

Voltage harmonics affect the entire distribution network. IEC 61000-2-2 specifies the compatibility levels for low-voltage systems (up to 1000 V). The limits are expressed in terms of Total Harmonic Distortion (THD) and individual harmonic voltages.

Typical IEC voltage distortion limits:

These limits help maintain voltage quality across consumer and utility networks.

Measurement Techniques – IEC 61000-4-7

Accurate harmonic measurement is essential for compliance. IEC 61000-4-7 specifies the test method using Class I or Class II instruments. It recommends:

• 10-cycle or 12-cycle window for 50 Hz or 60 Hz systems.
• RMS-based calculation for each harmonic order.
• Grouping of interharmonics into harmonic bins for analysis.

Learn more in our article on Power Quality Analysis Techniques

Modern power analyzers follow this standard to provide reliable results during audits and system studies.

Practical Steps for Compliance with IEC Standard for Harmonics

1. Conduct Harmonic Analysis
   Use power quality analyzers to measure current and voltage distortion at key points in the system.
2. Identify Sources
   Major contributors include drives, inverters, UPS, and lighting systems.
3. Apply Mitigation Techniques
   • Install passive or active harmonic filters.
   • Use 12-pulse or 18-pulse rectifiers for large drives.
   • Maintain balanced loads and proper grounding.
4. Design According to IEC 61000
   Ensure all new equipment meets the emission limits stated in IEC standards.

Benefits of Following IEC Standard for Harmonics

• Improved Power Quality: Reduces distortion and ensures stable voltage supply.
• Longer Equipment Life: Minimizes overheating and premature failure.
• Regulatory Compliance: Avoids penalties from utilities and certification bodies.
• Energy Efficiency: Reduces losses in cables and transformers.

Know more about IEC Standard for Battery Charger

Challenges in Meeting IEC Harmonic Limits

Despite clear guidelines, compliance is challenging due to:

• Proliferation of nonlinear loads in industries.
• Limited space for filters in retrofit projects.
• Cost implications of advanced mitigation solutions.

Engineers must balance cost and performance while ensuring compliance.

Future of Harmonic Standards

With the integration of renewable energy, EV chargers, and high-frequency converters, harmonic distortion is evolving. IEC is working on updates to address:

• Interharmonics and supraharmonics.
• Harmonic impacts of high-power fast chargers.
• Advanced testing methods for dynamic systems.

Staying updated with the latest IEC standard for harmonics is essential for engineers and energy managers.

Know more about IEC Standard for Differential Protection

Summary Table – Key IEC Standards for Harmonics

Conclusion

The IEC standard for harmonics is a critical guideline for designing reliable and efficient electrical systems. By understanding and applying these standards, engineers can prevent power quality issues, reduce equipment failures, and ensure compliance with international regulations.

Know more about IEC Standard for Distribution Transformer

As power systems evolve with renewable energy and advanced electronics, harmonic control will remain a key challenge. Organizations that adopt proactive measures and adhere to IEC standards will achieve higher efficiency, reliability, and cost savings in the long run.
