Transformer Calculations for a Voltage-Fed Push-Pull Converter

| |

In the world of power electronics, voltage-fed push-pull converters play a crucial role in efficiently transforming electrical energy. At the heart of these converters lies the transformer, a component that requires careful calculation and design to ensure optimal performance. This article delves into the intricacies of transformer calculations for a voltage-fed push-pull converter, providing engineers and enthusiasts with valuable insights into this essential process.

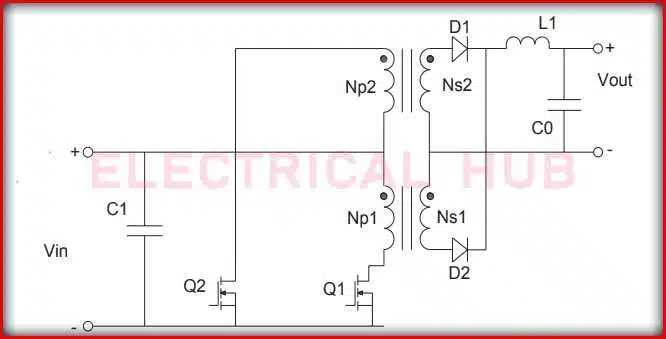

Transformer Calculations for a Voltage-Fed Push-Pull Converter

Understanding Transformer Calculations for a Voltage-Fed Push-Pull Converter

Before we dive into the specifics of transformer calculations, it’s important to grasp the fundamentals of a voltage-fed push-pull converter. This type of converter utilizes two switches that alternately connect the primary winding of the transformer to the input voltage source. The resulting alternating current in the primary winding induces a voltage in the secondary winding, which is then rectified to produce the desired output voltage.

The transformer in a push-pull converter serves multiple purposes. It provides electrical isolation between the input and output, allows for voltage level adjustment, and enables the use of multiple output voltages if required. Proper calculation and design of the transformer are crucial for achieving high efficiency, good regulation, and reliable operation of the converter.

Key Factors in Transformer Calculations for a Voltage-Fed Push-Pull Converter

When performing transformer calculations for a voltage-fed push-pull converter, several key factors must be considered:

1. Input voltage range

2. Output voltage and current requirements

3. Switching frequency

4. Desired efficiency

5. Maximum flux density of the core material

6. Core geometry and size

7. Winding wire sizes and arrangements

These factors are interconnected, and changes in one often affect the others. Therefore, transformer design is often an iterative process, requiring careful balancing of various parameters to achieve the optimal result.

Essential Formulas for Transformer Calculations in a Voltage-Fed Push-Pull Converter

Let’s explore some of the essential formulas used in transformer calculations for a voltage-fed push-pull converter. These formulas form the foundation of the design process and help engineers determine the key parameters of the transformer.

Primary Turns Calculation

One of the first steps in transformer design is determining the number of turns required in the primary winding. The formula for this calculation is:

N_p = (V_in x 10^8) / (4 x f x B_max x A_e)

Where:

  • – N_p is the number of primary turns
  • – V_in is the input voltage
  • – f is the switching frequency
  • – B_max is the maximum flux density of the core
  • – A_e is the effective cross-sectional area of the core

This formula ensures that the core does not saturate during operation, which would lead to increased losses and potential failure of the converter.

Secondary Turns Calculation

Once the number of primary turns is determined, the secondary turns can be calculated using the following formula:

N_s = N_p x (V_out + V_f) / (V_in x D)

Where:

  • – N_s is the number of secondary turns
  • – V_out is the desired output voltage
  • – V_f is the forward voltage drop of the rectifier diodes
  • – D is the duty cycle of the converter

This calculation ensures that the desired output voltage is achieved, taking into account losses in the rectification stage.

Core Size Selection

The selection of an appropriate core size is crucial for efficient transformer operation. The area product method is commonly used for this purpose. The formula for the area product is:

A_p = (P_out x 10^4) / (K x B_max x f x J)

Where:

  • – A_p is the area product
  • – P_out is the output power
  • – K is the waveform factor (typically 4.0 for push-pull converters)
  • – J is the current density

The calculated area product can then be used to select a suitable core from manufacturer datasheets.

Practical Example of Transformer Calculations for a Voltage-Fed Push-Pull Converter

To illustrate the application of these formulas, let’s consider a practical example of transformer calculations for a voltage-fed push-pull converter. Suppose we need to design a transformer for a converter with the following specifications:

  • – Input voltage: 24V DC
  • – Output voltage: 12V DC
  • Output current: 5A
  • – Switching frequency: 50 kHz
  • – Maximum flux density: 0.2T
  • Core material: Ferrite (3C90)

First, let’s calculate the number of primary turns:

Assuming we’ve selected a core with an effective area (A_e) of 100 mm^2, we can use the primary turns formula:

N_p = (24 x 10^8) / (4 x 50000 x 0.2 x 100) ≈ 6 turns

Next, we’ll calculate the secondary turns:

Assuming a duty cycle of 0.8 and a diode forward voltage of 0.7V, we can use the secondary turns formula:

N_s = 6 x (12 + 0.7) / (24 x 0.8) ≈ 4 turns

To select an appropriate core size, we’ll use the area product method:

A_p = (60 x 10^4) / (4 x 0.2 x 50000 x 5) ≈ 0.6 cm^4

With this area product, we can select a suitable core from manufacturer catalogs.

These calculations provide a starting point for the transformer design. In practice, additional factors such as wire size selection, winding arrangement, and thermal considerations would also need to be addressed to complete the design process.

Optimizing Transformer Design for Voltage-Fed Push-Pull Converters

While the basic calculations provide a solid foundation, optimizing transformer design for voltage-fed push-pull converters often involves careful consideration of additional factors. These may include:

1. Leakage inductance minimization

2. Proximity effect and skin effect in windings

3. Core loss reduction techniques

4. Thermal management strategies

5. EMI reduction methods

Engineers must balance these factors to achieve the best possible performance, efficiency, and reliability in the final converter design.

In conclusion, transformer calculations for voltage-fed push-pull converters are a critical aspect of power electronics design. By understanding the key formulas and considerations involved, engineers can create efficient and reliable converters for a wide range of applications. As power electronics continue to evolve, mastering these calculations will remain an essential skill for professionals in the field.
