Understanding the 480/277 V Three-Phase, Four-Wire Systems
In this article, we will dive into the technical details of a 480/277 V three-phase, four-wire electrical system. This setup is crucial for powering various types of equipment and systems in commercial and industrial settings. We’ll explore the basics, the challenges, and how to size the components correctly to avoid issues like harmonic distortion.
Overview of the 480/277 V Three-Phase, Four-Wire System
The 480/277 V three-phase system is widely used for both lighting and equipment in commercial and industrial applications. In this system, the windings are connected in a Y configuration. Essentially, three windings connect at a common point, and this point is grounded for safety. Each phase—referred to as phase A, B, and C—connects to this central point.
The voltage levels in the system are crucial to understand:
- 480 V is the voltage between any two phases (L1-L2, L1-L3, or L2-L3).
- 277 V is the voltage between any phase (L1, L2, or L3) and the ground.
This system allows for both 480 V power for machinery and 277 V for lighting.
Harmonics and Their Impact on the System
Harmonics are a significant concern in the 480/277 V three-phase systems, particularly due to non-linear loads such as computers and other sensitive equipment. Harmonics can cause serious issues with the neutral wire, causing it to overheat. This overheating can increase the risk of electrical fires or system failure. The NEC 310 guidelines address these concerns in sections like NEC 310.15 and 250.26, which provide rules on grounding and neutral conductor sizing in systems prone to harmonic distortion.
To mitigate this problem, electricians can either increase the neutral conductor size or use K-rated transformers that help handle harmonic currents more effectively.
Sizing and Protecting the System

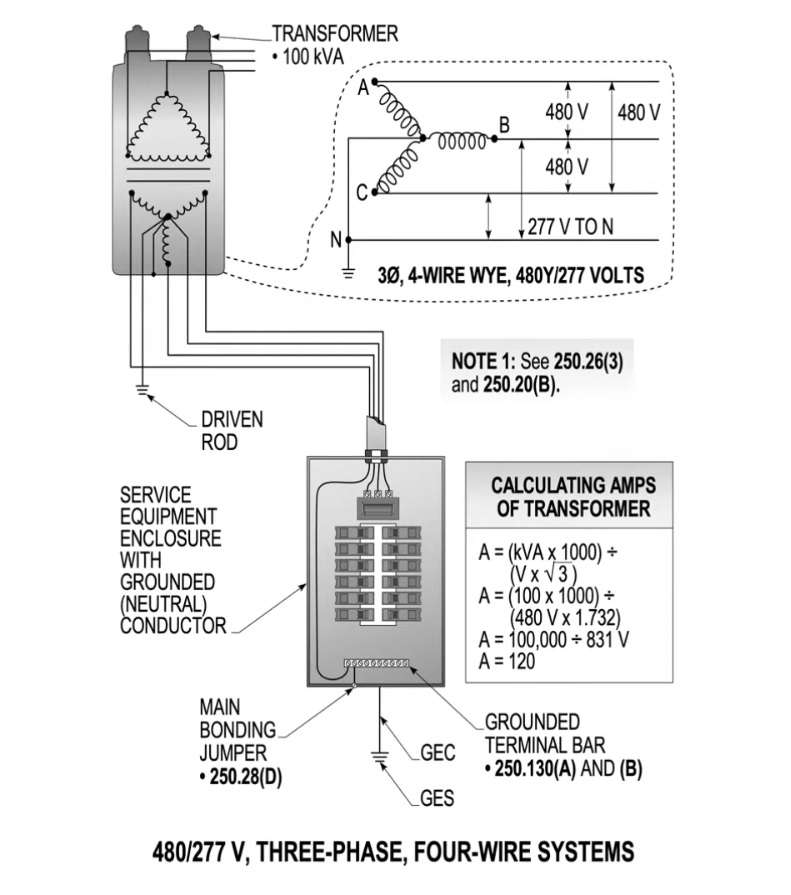

When designing a 480/277 V system, it’s critical to calculate the proper amperage for the system to avoid overloading. For example, in a typical 100 KVA system, we calculate the amperage using the formula for three-phase systems:
For a 480 V system, this gives us an amperage of 120 amps. This lower amperage (compared to a lower voltage system) allows us to use smaller conductors and reduces heat buildup, which helps prevent system failures.
Understanding Grounding and Fault Current
Proper grounding is essential to ensure the safety of the system. The NEC 250.24 requires that the transformer be grounded at the service equipment to provide a path for fault current. Additionally, the grounding electrode system (GES) must meet a resistance of 5 ohms or less, ensuring that the fault current can safely travel back to the transformer ground.
If the system is well-grounded, the fault current will dissipate without causing harm, even if the equipment is faulty. A well-designed system also ensures that the equipment does not become “electrified,” reducing the risk of electrical shock hazards.
Size the Equipment and Conductors Properly
To size the main breaker and protective devices for a 480/277 V system, you need to calculate the amperage requirements and ensure that the transformer is appropriately protected. This may involve rounding up the amperage to the nearest breaker size. For instance, a 120-amp system might require a 125-amp main breaker, while the conductors should be sized accordingly to handle the calculated load.
If there’s any doubt, it’s essential to consult with an engineer to ensure that all components are properly rated. This is especially important in facilities with complex electrical needs, where incorrect sizing could result in serious problems.
Common Issues and Best Practices
One common issue occurs when electricians or designers fail to include a neutral conductor when a 480 V load is used. If 277 V lighting is not part of the system, some may mistakenly omit the neutral. However, according to NEC 250.24, a grounded conductor must be pulled to the service equipment, especially in grounded systems like the Y configuration.
Inspectors and electricians should pay close attention to the grounding and conductor sizing. If the neutral conductor is undersized or improperly grounded, it can lead to potentially dangerous situations, including electrified equipment. For safety, always verify that the proper grounding is in place and that the conductors are correctly sized and protected.
Routine Maintenance and Inspection
According to Chapter 14 of the NEC, regular inspection of electrical panels and grounding systems is crucial for the ongoing safety of the facility. Maintenance electricians should check the connections in the panel, ensuring that the conductors are intact and not overheated. The insulation should be in good condition, and the grounding should be effective.
Electricians should also confirm that the equipment is properly labeled, indicating that it has been inspected and meets safety standards. If any faults are found, it’s essential to correct them immediately to prevent accidents.
Conclusion
The 480/277 V three-phase, four-wire system is widely used in commercial and industrial applications for its efficiency and versatility. However, it requires careful design and maintenance to prevent problems such as harmonic distortion and improperly sized conductors. By following the NEC guidelines and regularly inspecting the system, electricians can ensure that these systems operate safely and efficiently, avoiding costly failures and ensuring the safety of everyone involved.
If you are designing or maintaining a 480/277 V three-phase system, always remember to calculate your amperage correctly, size your equipment and conductors properly, and adhere to the grounding and inspection protocols outlined in the NEC and other relevant standards.
