Types of Pole Mounted Transformers: Best Guide
Pole mounted transformers are a critical part of electrical distribution networks. They help deliver electricity from high-voltage power lines to homes, offices, and industries safely. These transformers are mounted on poles, making them suitable for areas where underground cabling is not feasible. Understanding the different types of pole mounted transformers is essential for engineers, utility companies, and even homeowners who want to know how electricity reaches their premises. Learn more about uk transformer manufacturers
Table of Contents
What is a Pole Mounted Transformer?
A pole mounted transformer is an electrical device used to step down high voltage electricity to a lower, usable voltage. It is fixed on poles made of wood, steel, or concrete. These transformers are common in residential areas, small commercial buildings, and rural locations.
Key benefits of pole mounted transformers include:
- Space-saving design
- Easy installation and maintenance
- Cost-effective for small-scale distribution
- Reliable performance in various weather conditions
Discover everything about list of power transformer manufacturers in uk

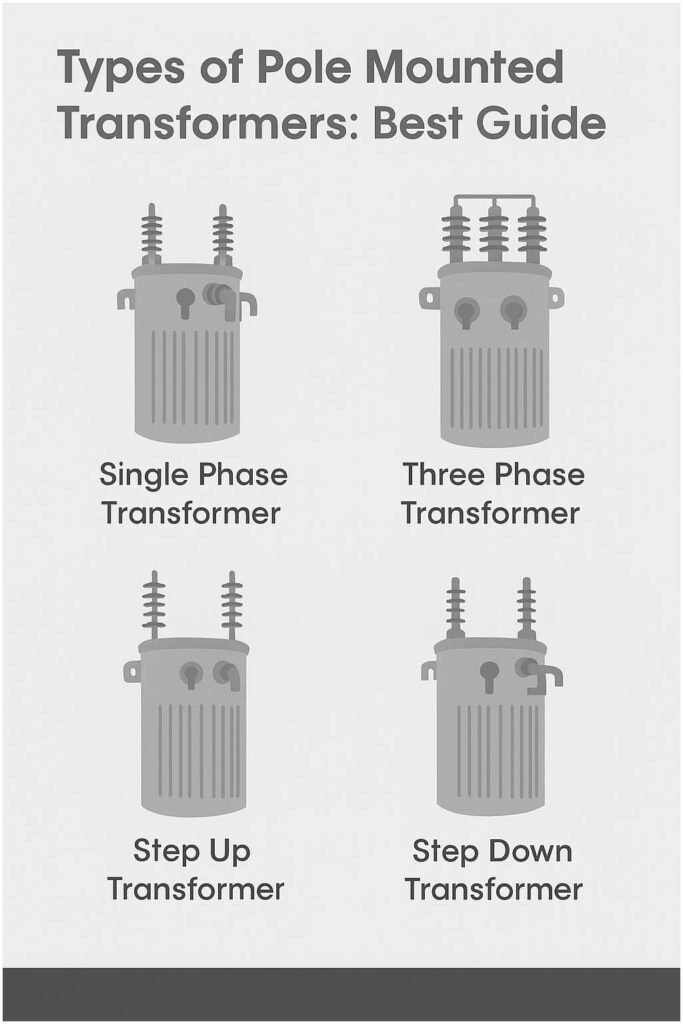

Types of Pole Mounted Transformers
Pole mounted transformers can be classified based on different criteria such as insulation type, phase, construction, and mounting style. Each type serves a specific purpose in electrical distribution.
1. Based on Insulation Type
Insulation plays a vital role in the performance of transformers. Pole mounted transformers mainly use two types of insulation:
Oil-Immersed Pole Mounted Transformers
Oil-immersed transformers use mineral oil as an insulating and cooling medium. The oil helps in heat dissipation and prevents electrical faults. They are widely used for outdoor applications.
Advantages:
- Efficient cooling
- Long lifespan
- Can handle overloads better
Disadvantages:
- Risk of fire if not maintained properly
- Heavier and bulkier than dry-type transformers
Find out more about list of wapda approved transformer manufacturers
Dry-Type Pole Mounted Transformers
Dry-type transformers use air as the cooling medium. They do not contain any liquid and are safer for residential areas.
Advantages:
- Fire-resistant
- Low maintenance
- Environmentally friendly
Disadvantages:
- Less efficient in cooling
- Limited overload capacity
| Feature | Oil-Immersed Transformer | Dry-Type Transformer |
|---|---|---|
| Cooling Medium | Oil | Air |
| Maintenance | Moderate | Low |
| Fire Hazard | Higher | Low |
| Cost | Moderate | Higher |
| Lifespan | Longer | Moderate |
2. Based on Phase
Pole mounted transformers are available in single-phase and three-phase configurations. The choice depends on the type of load and location.
Explore details on largest transformer manufacturer in usa
Single-Phase Pole Mounted Transformers
Single-phase transformers are commonly used for residential areas with low electricity demand. They step down high voltage to a lower voltage suitable for homes.
Applications:
- Houses
- Small shops
- Rural areas
Three-Phase Pole Mounted Transformers
Three-phase transformers are used in industrial and commercial areas where electricity demand is higher. They provide a more stable and efficient power supply.
Applications:
- Factories
- Large commercial buildings
- Agricultural installations
| Type | Single-Phase | Three-Phase |
|---|---|---|
| Voltage Level | 11kV/400V | 33kV/11kV |
| Load Capacity | Low | High |
| Common Usage | Residential | Industrial |
| Efficiency | Moderate | High |
Get complete information about transformer manufacturers in uk
3. Based on Construction
The construction of pole mounted transformers also defines their type. The design affects their durability and efficiency.
Compact Pole Mounted Transformers
These transformers are smaller in size and lighter. They are ideal for areas with limited space.
Advantages:
- Easy installation
- Low maintenance
- Cost-effective
Conventional Pole Mounted Transformers
Conventional transformers are larger and can handle higher loads. They are suitable for industrial areas or densely populated neighborhoods.
Advantages:
- High load capacity
- Durable and robust
- Better cooling system
4. Based on Mounting Style
While most pole mounted transformers are installed directly on poles, some have specialized mounting styles.
Single-Pole Mounted Transformers
Installed on a single pole, these are common in rural areas. They are easy to maintain and replace.
Learn more about best power transformer manufacturer in south africa
Double-Pole Mounted Transformers
Used in locations where higher stability is needed, especially for larger transformers. They distribute the weight more evenly.
5. Based on Cooling Methods
Cooling methods are essential for transformer efficiency and lifespan. The main types include:
- Natural Cooling (ONAN): Uses oil circulation naturally without external pumps.
- Forced Air Cooling (ONAF): Uses fans to improve cooling.
- Radiator Type: Equipped with fins or radiators to enhance heat dissipation.
| Cooling Type | Description | Advantages | Disadvantages |
|---|---|---|---|
| ONAN | Oil natural cooling | Low maintenance | Limited capacity |
| ONAF | Oil cooled with fans | Handles overloads | Higher cost |
| Radiator | Heat dissipated through fins | Efficient cooling | Requires space |
Dive deeper into transformer manufacturers in france
Applications of Pole Mounted Transformers
Pole mounted transformers have diverse applications due to their versatility. Common areas include:
- Residential neighborhoods to supply homes with electricity
- Small commercial buildings such as shops and offices
- Rural electrification projects where underground cables are not feasible
- Street lighting systems
- Agricultural fields for irrigation pumps
These transformers ensure reliable electricity supply even in challenging terrain or areas with limited infrastructure.
Advantages of Pole Mounted Transformers
Pole mounted transformers offer several advantages over other types of transformers:
- Cost-Efficient: Cheaper than underground transformers
- Easy Maintenance: Quick access for repairs and inspection
- Space Saving: Mounted on poles, requiring minimal ground space
- Reliable: Durable in outdoor environments with weather-resistant designs
- Flexible Installation: Can be installed in urban and rural areas
Read in detail about transformer manufacturers in egypt
Maintenance Tips for Pole Mounted Transformers
Proper maintenance ensures long life and uninterrupted power supply. Key tips include:
- Regular inspection for oil leaks in oil-immersed transformers
- Checking insulation for wear or damage
- Monitoring temperature and load regularly
- Cleaning dust and debris around dry-type transformers
- Ensuring proper grounding and lightning protection
Future of Pole Mounted Transformers
With the rise of renewable energy and smart grid systems, pole mounted transformers are evolving. Modern designs now focus on:
- Smart Transformers: Equipped with sensors for real-time monitoring
- Environment-Friendly Transformers: Using biodegradable oils or dry-type insulation
- Compact Designs: Smaller, lighter, and efficient for urban areas
- Integration with Solar Panels: Directly connecting to distributed solar energy systems. Uncover insights on motor generator transformer manufacturers
Conclusion
Understanding the types of pole mounted transformers is crucial for anyone involved in electrical distribution. From oil-immersed to dry-type, single-phase to three-phase, and compact to conventional designs, each transformer serves a specific purpose. They are vital for safe, reliable, and efficient electricity distribution. Choosing the right type ensures a stable power supply, minimizes maintenance, and supports long-term energy needs.
Investing in modern, efficient, and environmentally-friendly pole mounted transformers can benefit communities and industries while supporting the move toward smarter electrical grids. By selecting the appropriate type, utility companies can ensure that electricity reaches homes, businesses, and farms safely and efficiently.
