Solar Charge Controller Sizing Calculator: Important Tool
Designing a solar power system requires accurate sizing of every component to ensure maximum efficiency and battery life. One of the most crucial elements in this setup is the solar charge controller — the device that regulates current from solar panels to batteries. Selecting the right size of charge controller ensures your system operates safely and efficiently without damaging batteries or wasting energy.
To make this process easier, we’ve developed a Solar Charge Controller Sizing Calculator that helps you determine the ideal controller capacity for your solar setup based on your solar panel rating, battery voltage, and load. This tool eliminates guesswork and prevents costly mistakes in system design.
Table of Contents
In this guide, we’ll walk you through what a solar charge controller does, how sizing works, and how you can use our Solar Charge Controller Sizing Calculator to get accurate results in seconds.
Key Takeaways
- The Solar Charge Controller Sizing Calculator helps you determine the correct controller amperage based on your solar array and battery system.
- Choosing between PWM and MPPT charge controllers depends on your system voltage and budget.
- Correct sizing prevents system inefficiency, overcharging, and component failure.
What is a Solar Charge Controller?
A solar charge controller is an electronic device that manages the flow of electricity between solar panels and batteries. Its main job is to prevent overcharging, deep discharge, and reverse current flow at night. Without a charge controller, the battery’s lifespan would drastically shorten due to uncontrolled charging and discharging.

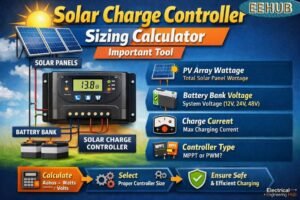

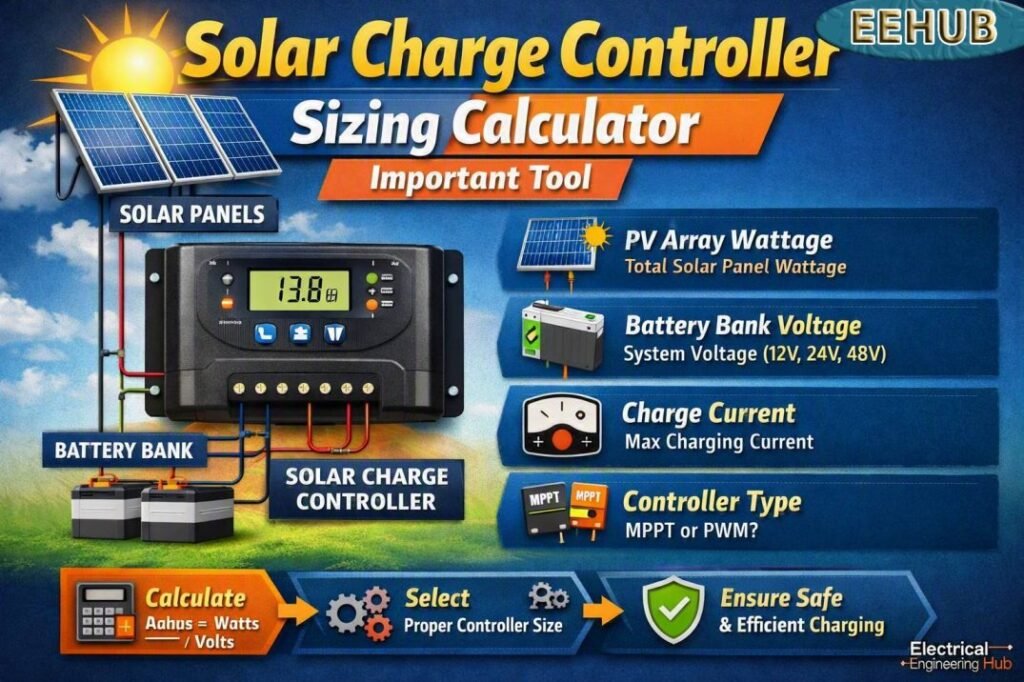

Solar Charge Controller Sizing Calculator
Estimate the ideal solar charge controller size based on your panel specs, configuration, and battery bank. Includes voltage compensation and fuse sizing.
How to Use: Enter your panel specs, configuration, and battery voltage. The calculator will estimate the required charge controller size, including temperature compensation and fuse rating.
There are two main types of controllers used today — PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking). Each type has different efficiency levels, operating mechanisms, and sizing requirements, which we’ll discuss further in this article.
Use our online tool Solar Wire Size Calculator (DC): Best Solar Cable Sizing Tool
Why Solar Charge Controller Sizing Matters
Sizing your charge controller correctly ensures that it can safely handle the current produced by your solar panels. An undersized controller can overheat, fail, or even cause battery damage. On the other hand, an oversized controller is unnecessary and more expensive.
When you use the Solar Charge Controller Sizing Calculator, it automatically determines the correct amperage rating based on your panel’s total wattage, voltage, and system configuration. This guarantees that your controller can handle peak current safely, even under maximum sunlight conditions.
How the Solar Charge Controller Sizing Calculator Works
The Solar Charge Controller Sizing Calculator uses a simple but effective formula based on solar panel wattage and battery voltage.
Here’s the basic equation:
Controller Current (Amps) = Total Solar Panel Wattage ÷ Battery Voltage × 1.25
The 1.25 factor accounts for safety margin and varying environmental conditions.
Let’s break it down with an example:
| Parameter | Example Value |
|---|---|
| Total Solar Panel Wattage | 600W |
| Battery Voltage | 12V |
| Safety Factor | 1.25 |
Controller Current = 600 ÷ 12 × 1.25 = 62.5 Amps
So, for a 600W solar array and a 12V battery bank, you’ll need at least a 60A charge controller.
Our calculator automatically performs this calculation and suggests the correct controller size for your system, whether you’re using PWM or MPPT technology.
Use our online tool Generator Size Calculator for Homes in KVA: Best Tool
PWM vs MPPT Sizing – Which One Do You Need?
Understanding PWM vs MPPT sizing is crucial when using the solar charge controller calculator. Both technologies regulate power flow, but they operate differently and have distinct sizing considerations.
| Feature | PWM Charge Controller | MPPT Charge Controller |
|---|---|---|
| Efficiency | 70–80% | 95–99% |
| Cost | Low | Higher |
| Voltage Compatibility | Panels must match battery voltage | Panels can have higher voltage |
| Best For | Small systems | Large systems |
In PWM controllers, the solar panel voltage must match the battery voltage. Therefore, sizing is straightforward, and you typically multiply the solar current by 1.25 to get the correct amperage.
In MPPT controllers, the device converts excess panel voltage into charging current, making it more efficient. That’s why the MPPT sizing often allows for smaller current ratings for the same power output, though it depends on your setup.
When using our Solar Charge Controller Sizing Calculator, you can select whether your system uses PWM or MPPT, and it will adjust the calculation automatically.
Step-by-Step Guide to Using the Solar Charge Controller Sizing Calculator
Using the Solar Charge Controller Sizing Calculator is simple and takes less than a minute:
- Enter total solar panel wattage – Add up the wattage of all solar panels in your system.
- Select battery voltage – Common options include 12V, 24V, and 48V.
- Choose controller type (PWM or MPPT) – The calculator will adjust efficiency factors accordingly.
- Click Calculate – Instantly see the recommended controller size in amps.
This calculator eliminates the need for manual calculations and reduces human error. You can confidently select a controller that matches your solar system’s specifications and future expansion plans.
Use our online tool Solar Panel Calculator for Home – Find Your Perfect System Size and Savings
Recommended Solar Charge Controller Sizes
To give you a quick reference, here’s a general guide showing typical solar array sizes and their corresponding controller ratings.
| Solar Array (Watts) | Battery Voltage | Recommended Controller (Amps) |
|---|---|---|
| 200W | 12V | 20A |
| 400W | 12V | 40A |
| 600W | 12V | 60A |
| 800W | 24V | 40A |
| 1200W | 24V | 60A |
| 2000W | 48V | 50A |
These are approximate values. The exact size should always be confirmed using the Solar Charge Controller Sizing Calculator for accurate and safe operation.
Factors Affecting Controller Sizing
While the calculator simplifies the process, it’s important to understand the factors that can affect charge controller sizing:
1. System Voltage – Higher system voltages reduce current, allowing for smaller controllers. For example, a 24V system needs half the amperage of a 12V system for the same wattage.
2. Solar Irradiance – Peak sunlight conditions can increase output by up to 25%. That’s why the safety margin is built into the sizing formula.
3. Temperature – Cold conditions increase panel voltage, which can affect MPPT sizing.
4. Future Expansion – If you plan to add panels later, choose a slightly higher controller rating.
Our calculator considers these parameters in its logic, ensuring accurate results for real-world conditions.
Use our online tool EV Battery Life Calculator – Estimate Your Electric Vehicle Battery Lifespan Accurately
Benefits of Using the Solar Charge Controller Sizing Calculator
- Time-Saving: Quickly find the right controller without manual calculations.
- Accurate Results: Accounts for efficiency and safety margins automatically.
- Error-Free: Reduces human error in electrical sizing.
- Compatibility Check: Suggests PWM or MPPT controllers based on input parameters.
- Scalable: Ideal for both residential and commercial solar systems.
This tool is especially useful for installers, engineers, and DIY solar enthusiasts looking to simplify system design.
PWM MPPT Sizing Tips for Optimal Performance
To get the best from your solar setup, follow these practical tips when using the solar charge controller calculator:
- For PWM systems, keep solar panel voltage close to battery voltage (12V or 24V).
- For MPPT systems, higher panel voltage improves efficiency, but check the maximum input voltage rating of your controller.
- Always round up your controller’s current capacity to the next available size (e.g., use a 40A controller instead of 35A).
- Check the manufacturer’s specifications for maximum input voltage and current ratings.
These steps ensure your controller operates efficiently, prolongs battery life, and maximizes energy harvest.
Example System Calculation
Let’s consider a practical setup to demonstrate how the Solar Charge Controller Sizing Calculator helps:
| Parameter | Value |
|---|---|
| Solar Panel Rating | 5 × 200W panels = 1000W |
| System Voltage | 24V |
| Controller Type | MPPT |
Controller Current = (1000 ÷ 24) × 1.25 = 52 Amps
The calculator would recommend a 60A MPPT charge controller for this setup, ensuring full safety and optimal performance.
Use our online tool 3 Phase Load Balance Calculator: Best Tool
Final Thoughts
Accurate sizing of your charge controller is essential for a reliable and efficient solar energy system. Our Solar Charge Controller Sizing Calculator simplifies this process by providing instant, accurate results tailored to your setup. Whether you’re using PWM or MPPT controllers, the calculator ensures you select the right size the first time, saving both money and time.
As solar systems continue to grow in popularity, precision tools like this calculator are becoming indispensable for both professionals and homeowners. Use it before purchasing your controller to ensure your investment performs at its best for years to come.
