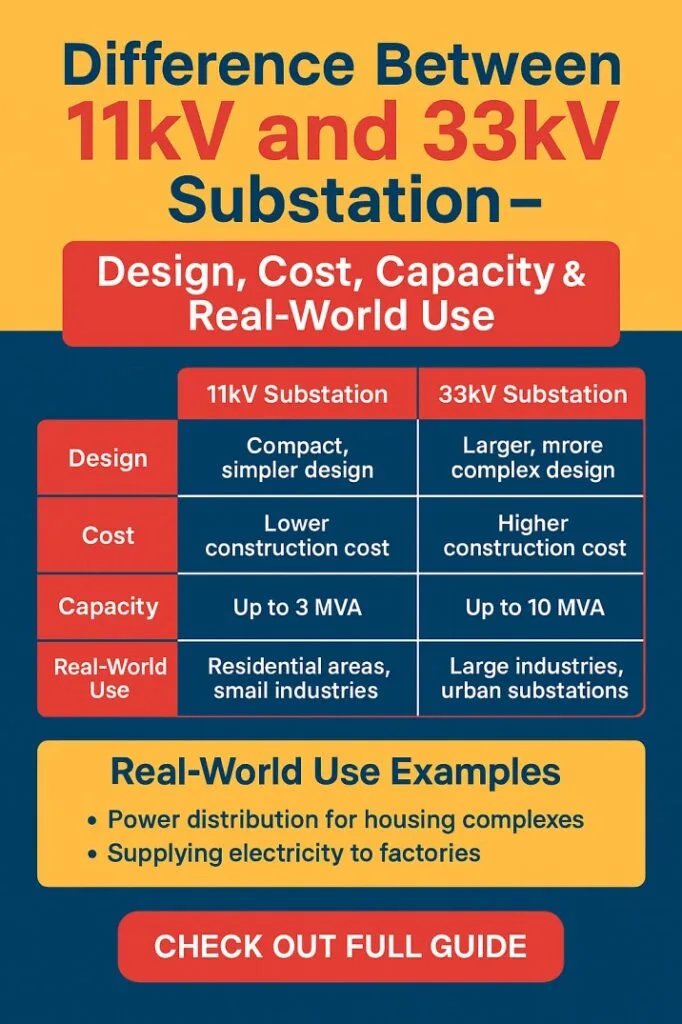

Difference Between 11kV and 33kV Substation: Best Guide on Design, Cost, Capacity & Applications
The difference between 11kV and 33kV substation is one of the most searched topics in power distribution engineering, especially by students, consultants, and industrial planners. Both voltage levels play a critical role in electrical networks, but their design philosophy, cost, capacity, and application are very different. Understanding this difference helps in selecting the right substation for residential areas, industries, utilities, and renewable energy projects.
Table of Contents
This article explains the difference between 11kV and 33kV substation in a practical, engineering-focused manner, covering real-world usage rather than just textbook definitions.
Know more about Top 15 Transformer Manufacturers USA
Basic Concept of 11kV and 33kV Substations
An electrical substation is a node where voltage is transformed, controlled, and distributed. The difference between 11kV and 33kV substation starts from their position in the power system hierarchy.
An 11kV substation is mainly used for secondary distribution. It receives power from higher voltage networks and distributes it to local feeders. A 33kV substation works at a higher level and is usually part of primary distribution or sub-transmission.
In simple terms:
- 33kV substations serve as a bridge between transmission and distribution
- 11kV substations serve end consumers more directly
Voltage Level and System Role
The most obvious difference between 11kV and 33kV substation is their operating voltage and system role.
- 11kV systems are closer to the load
- 33kV systems handle bulk power transfer
This voltage difference directly impacts insulation levels, equipment rating, protection schemes, and land requirements.
Know more about types of faults in transmission lines
Voltage Comparison Table
| Parameter | 11kV Substation | 33kV Substation |
|---|---|---|
| Nominal Voltage | 11,000 volts | 33,000 volts |
| Network Level | Secondary distribution | Primary distribution |
| Distance Covered | Short | Medium to long |
| Typical Load Type | Residential, small industry | Industrial zones, grid feeders |
Design and Equipment Differences
The difference between 11kV and 33kV substation becomes more apparent when comparing their physical and electrical design.
An 11kV substation has simpler equipment with compact layout. A 33kV substation requires higher insulation clearances, stronger structures, and more advanced protection.
Key Design Differences
- Busbar size and spacing are larger in 33kV substations
- Circuit breakers have higher interrupting capacity at 33kV
- Protection relays are more sensitive and complex in 33kV systems
- Control panels and SCADA integration are more common at 33kV
Use our online tool Circuit Breaker Size Calculator: Best Tool for Engineers
Equipment Comparison Table
| Equipment | 11kV Substation | 33kV Substation |
|---|---|---|
| Circuit Breaker | VCB | VCB or SF6 |
| CTs and PTs | Lower insulation | Higher insulation |
| Busbar Clearance | Compact | Wide spacing |
| Protection Scheme | Basic overcurrent | Distance, differential, backup |
Know more about bus differential protection
Transformer Capacity and Load Handling
Transformer rating is another major difference between 11kV and 33kV substation.
11kV substations usually have transformers in the range of 5 MVA to 20 MVA. These are sufficient for housing societies, commercial areas, and small industrial loads.
33kV substations handle much larger transformers, often ranging from 10 MVA to 50 MVA or more. They are designed to feed multiple 11kV substations downstream.
Transformer Capacity Table
| Aspect | 11kV Substation | 33kV Substation |
|---|---|---|
| Typical Transformer Size | 5–20 MVA | 10–50+ MVA |
| Load Density | Low to medium | Medium to high |
| Expansion Capability | Limited | High |
Cost Comparison and Investment
From a financial perspective, the difference between 11kV and 33kV substation is significant.
An 11kV substation is much cheaper to install and maintain. It requires less land, simpler civil works, and lower-rated equipment.
Know more about hvdc transmission
A 33kV substation involves higher capital cost due to:
- Larger land area
- Higher insulation equipment
- Advanced protection and control
- Stronger foundations and gantries
Approximate Cost Comparison
| Cost Component | 11kV Substation | 33kV Substation |
|---|---|---|
| Initial Cost | Low | High |
| Land Requirement | Small | Large |
| Maintenance Cost | Low | Medium to high |
| Protection & Automation | Minimal | Extensive |
Real-World Applications
The practical difference between 11kV and 33kV substation is best understood through real-world usage.
Know more about hvdc transmission
Typical Uses of 11kV Substations
- Urban residential areas
- Commercial plazas
- Hospitals and campuses
- Small and medium industries
- Local distribution networks
Typical Uses of 33kV Substations
- Industrial estates
- Grid supply points
- Renewable energy evacuation
- Large commercial zones
- Feeding multiple 11kV substations
In power utilities, 33kV substations act as backbone nodes, while 11kV substations act as delivery points.
Reliability and Power Losses
Another technical difference between 11kV and 33kV substation is system efficiency.
At 33kV, current is lower for the same power transfer. This reduces I²R losses, making 33kV networks more efficient over longer distances.
11kV systems experience higher losses if used for long-distance power transfer, which is why they are kept closer to load centers.
Know more about IEC Standard for Voltage Drop Calculation: Best Guide
Efficiency Comparison
- 33kV systems reduce line losses
- 11kV systems improve voltage regulation near consumers
- Fault impact area is larger at 33kV
Safety and Clearance Requirements
Safety standards also highlight the difference between 11kV and 33kV substation.
33kV substations require:
- Greater phase-to-phase clearance
- Higher ground clearance
- Stronger earthing systems
- Restricted access zones
11kV substations can be installed in compact indoor or kiosk-type enclosures with simpler safety arrangements.
Which One Should You Choose?
Choosing between the two depends on load size, distance, and future growth. The difference between 11kV and 33kV substation should always be evaluated with long-term planning in mind.
Choose an 11kV substation if:
- Load is below 15–20 MVA
- Area is densely populated
- Budget is limited
- Power is required close to consumers
Use our online tool Transformer Sizing Chart Calculator – Calculate the Right Transformer Size for Your Load
Choose a 33kV substation if:
- Load demand is high
- Multiple feeders are required
- Future expansion is planned
- Power needs to travel longer distances
Summary Table
| Feature | 11kV Substation | 33kV Substation |
|---|---|---|
| Voltage Level | Lower | Higher |
| Cost | Economical | Capital intensive |
| Capacity | Limited | High |
| Complexity | Simple | Advanced |
| Typical Users | Residential, small industry | Utilities, large industry |
Know more about Top 12 Current Transformer Manufacturers in Australia
Final Thoughts
The difference between 11kV and 33kV substation is not just about voltage level. It affects design complexity, project cost, operational reliability, and long-term scalability. In modern power systems, both substations complement each other rather than compete. A well-designed network uses 33kV substations for bulk power handling and 11kV substations for efficient local distribution.
Understanding this difference ensures better engineering decisions, optimized investment, and reliable power delivery in real-world applications.
