3 Phase Cable Size Calculator: Best Tool
Understanding the correct cable size for a three-phase system is essential. It ensures safety, energy efficiency, and performance. In electrical installations, choosing the wrong size can lead to overheating, voltage drops, and even fire hazards. That’s why using a 3 phase cable size calculator is a critical step in planning any electrical project involving motors, heavy machinery, or large loads.
In this article, we’ll break down everything you need to know about using a 3 phase cable size calculator. We’ll keep it simple, direct, and packed with expert knowledge. From voltage drop formulas to technical parameters, everything is covered to help you make informed decisions.
What is a 3 Phase Cable Size Calculator?
A 3 phase cable size calculator is a tool used to determine the proper cross-sectional area of a conductor in a three-phase power system. This calculation considers several parameters including current, voltage, power factor, cable length, and allowable voltage drop.
It eliminates the guesswork. Whether you’re powering an industrial motor or designing an EV charger, this calculator can save you time and ensure accuracy.
Why Use a 3 Phase Cable Size Calculator?
Accuracy is the biggest advantage. A small error in cable sizing can lead to excessive losses. Over time, this leads to higher bills, damaged equipment, and possible regulatory issues. Using a calculator improves:
- Energy efficiency
- Safety standards
- Regulatory compliance
- Equipment lifespan
Engineers and technicians rely on these calculators to design systems that comply with IEC and NEC standards.
Key Factors Considered by a 3 Phase Cable Size Calculator
Load Current
This is the current your system will draw under full load. It’s calculated using:
I = P / (√3 × V × PF)
Where:
I = Current (A)
P = Power (W)
V = Voltage (V)
PF = Power Factor
This is the base number used to start the cable sizing process.
Voltage Drop
A voltage drop is inevitable over long cable runs. However, it should be kept within acceptable limits. For most installations, a maximum of 5% voltage drop is allowed.
The calculator uses:
Vd = √3 × I × R × L / 1000
Where:
Vd = Voltage Drop (V)
I = Load Current (A)
R = Resistance (Ω/km)
L = Length (m)
Keeping the voltage drop minimal ensures that equipment runs efficiently.
Conductor Material
Copper and aluminum are the two most common choices. Copper has higher conductivity but is more expensive. Aluminum is cheaper but has higher resistance.
Cable Length
Longer cables mean more resistance. This directly affects voltage drop and the required cable size.
Ambient Temperature
Cables in hotter environments carry less current. De-rating factors are applied to account for heat.
Standard Cable Sizes and Ratings
Below is a simplified table for standard copper cables at 400V, 3-phase, with 30°C ambient temperature and power factor of 0.8.
| Cable Size (mm²) | Max Current (A) | Max Distance @ 5% V Drop (m) |
|---|---|---|
| 1.5 | 18 | 20 |
| 2.5 | 25 | 35 |
| 4 | 32 | 50 |
| 6 | 40 | 70 |
| 10 | 55 | 100 |
| 16 | 75 | 150 |
| 25 | 95 | 210 |
| 35 | 120 | 270 |
These values vary with insulation type, installation method, and environmental conditions.

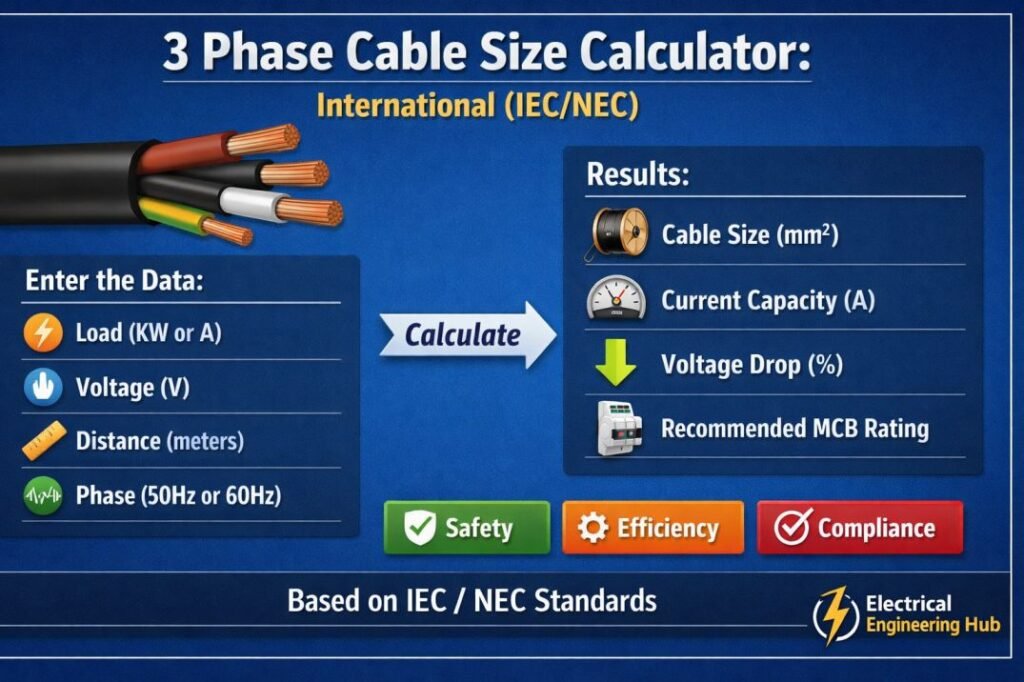

How to Use a 3 Phase Cable Size Calculator
Start by collecting the essential parameters:
- System voltage
- Load power
- Power factor
- Distance between supply and load
- Material (Copper or Aluminum)
- Installation environment
Input these into the calculator. The result gives you the minimum cable size that meets voltage drop and current capacity requirements.
If your load is a motor, then it’s crucial to consider starting current as well. Motors can draw 6 to 8 times their rated current at startup. That’s why it’s always smart to check with a motor cable size calculator specifically designed for such applications.
Example Calculation Using 3 Phase Cable Size Calculator
Let’s consider a 3-phase 400V motor with the following specs:
- Power: 11 kW
- Power factor: 0.85
- Distance: 50 meters
- Copper cable
Step 1: Calculate Current
I = 11000 / (√3 × 400 × 0.85) ≈ 18.7 A
Step 2: Check standard cable sizes
From the table, a 4mm² cable carries 32A, suitable for 50m at 5% voltage drop.
Result: Use 4mm² copper cable
If your system involves EVs, be sure to check What Cable Size for EV Charger standards. These applications require special attention to continuous load handling and national codes.
Applications That Require Accurate Cable Sizing
- Industrial motors
- HVAC systems
- Generators
- Renewable energy systems
- EV charging points
In such setups, using a Cable Size for Motor Calculator or a 3 phase cable size calculator is not optional—it’s mandatory.
Benefits of Proper 3 Phase Cable Sizing
Reduced Energy Losses
Lower resistance means less voltage drop. That directly translates to lower energy bills.
Improved Safety
Correctly sized cables prevent overheating, electrical fires, and equipment failure.
Longevity of Equipment
Stable voltage ensures that motors and sensitive electronics last longer and perform better.
Compliance with Codes
Standards such as NEC and IEC 60364 require proper cable sizing. Failure to comply can lead to penalties.
Easier Troubleshooting
When your installation is sized correctly, diagnosing issues becomes faster and easier.
Challenges in Cable Sizing Without a Calculator
Manual calculations are complex and time-consuming. Errors are common, especially in long cable runs or fluctuating load systems.
An experienced engineer might still make mistakes when trying to size cables for mixed loads or motors starting under load. This is where a 3 phase cable size calculator saves the day by automating formulas, derating factors, and safety margins.
If you’re wondering How to Calculate Cable Size for Motor, remember: motor applications often need larger cables to handle startup currents and mechanical loads. These are built into specialized calculators.
Tips for Accurate Cable Size Estimation
- Always include both running and starting current
- Consider future expansion
- Account for cable grouping and insulation
- Factor in temperature and ventilation
- Validate with national codes and manufacturer guidelines
And yes, don’t just trust a single method. Cross-check results with different tools and safety margins.
Importance of Using the Right Calculator
Not all calculators are made equal. Some oversimplify, others overcomplicate. A good 3 phase cable size calculator should:
- Allow inputs for power, length, voltage, and material
- Include voltage drop and derating
- Offer compliance with IEC/NEC tables
- Show recommended cable sizes clearly
If you’re using the calculator for motors, look for one integrated with a motor cable size calculator module. This gives you more realistic results, especially for DOL or star-delta starters.
Real-World Impact of Wrong Cable Sizing
Improper cable sizing has real risks. In one industrial site, undersized cables led to multiple failures of VFD drives. The cables couldn’t handle harmonics and overheating followed.
In another EV installation, poor voltage drop estimation led to longer charging times and failed inspections. A simple What Cable Size for EV Charger check could have avoided this.
These examples show why getting cable size right isn’t just a best practice—it’s a business necessity.
Conclusion
The 3 phase cable size calculator is an indispensable tool for engineers, electricians, and anyone involved in power distribution. It simplifies complex formulas, improves accuracy, and saves time.
Whether you’re working on an industrial motor or an electric vehicle charger, choosing the right cable size is critical. Use proper calculators, factor in voltage drop, check environmental conditions, and always verify with standards.
