Understanding the Sizing of Supply Side Conductors in Electrical Systems

When it comes to electrical systems, sizing supply side conductors correctly is essential for ensuring safety and efficiency. In this blog post, we will break down the process of sizing conductors, particularly focusing on the guidelines provided by NEC (National Electrical Code) Table 250.102, and how this applies to different scenarios such as service equipment, transformers, and bonding jumpers.

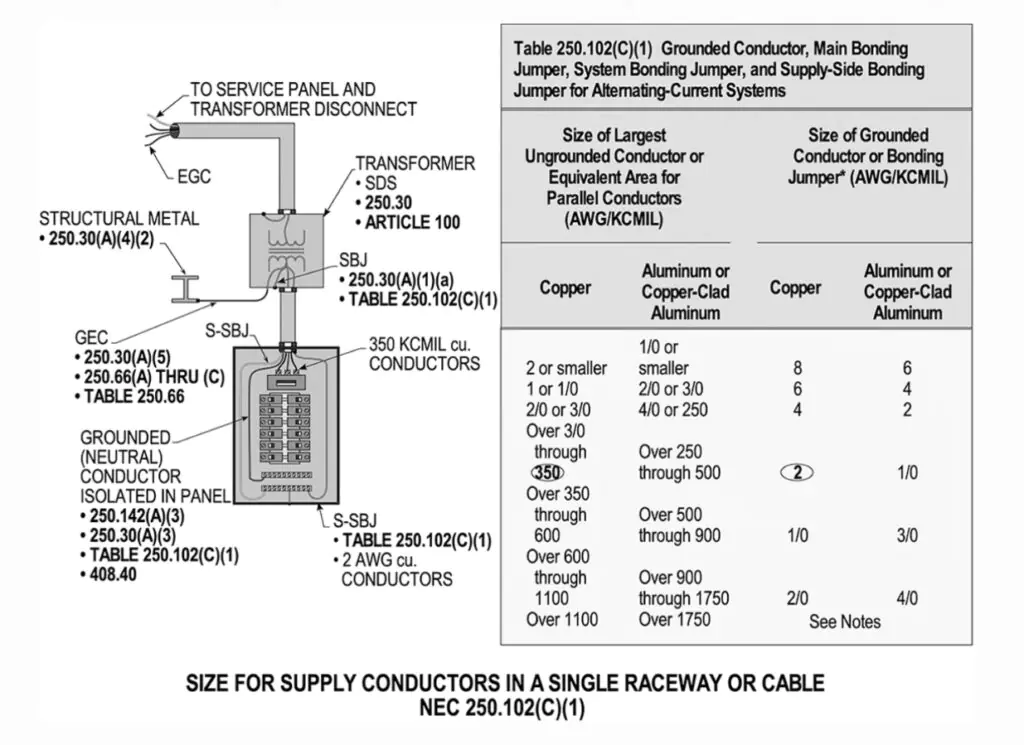

Overview of Table 250.102: Sizing Supply Side Conductors

Table 250.102, particularly section C1, is a crucial reference for sizing supply-side conductors and system bonding jumpers. This table guides the selection of the right conductor size for a safe and effective grounding system.

The table includes important information such as:

• Size of Ungrounded Conductor: The largest ungrounded conductor or equivalent area for parallel conductors.
• Size of Grounded Conductor or Binding Jumper: Specifies the required sizes for grounding conductors, including the use of copper and aluminum conductors.

The role of these conductors is critical—they help provide an effective fault path to transfer fault currents during electrical faults.

Key Components of the System

In an electrical system, the following components are essential when considering conductor size:

1. Service Equipment: This includes the service panel and disconnect, which are key to safely managing electrical current in the system.
2. Transformers: Whether they are customer-owned or utility transformers, these can be located either inside or outside the facility.
3. Bonding Jumpers: The bonding jumper, specified as the system bonding jumper or main bonding jumper, ensures that electrical faults are safely directed to the ground.

Table 250.102 provides the specifications for these components based on whether the system is derived from a transformer or if it is part of the main service panel.

Sizing Conductors Based on the Type of System

Service Entrance Conductors

The size of the conductors entering the service equipment is primarily determined by:

• The largest ungrounded conductor and its equivalent area for parallel conductors.
• The grounding conductor size, which must be capable of handling fault currents safely.

If using a transformer-based system, the specifications for the system bonding jumper are determined by NEC Table 250.102 C1, which helps to choose the right size of the conductor for efficient fault current transfer.

Grounding Electrode Conductor

When using grounding electrodes such as driven rods or concrete-encased electrodes, Table 250.66 comes into play. This table helps in sizing the grounding electrode conductor and ensures that electrical faults are safely handled. Depending on the type of electrode, the conductor size could range from #6 AWG to #2 AWG, as per the requirements of NEC.

Understanding the Role of Grounding and Bonding Jumpers

A significant part of sizing conductors lies in understanding grounding and bonding jumpers:

1. System Bonding Jumper: This is critical for systems that use transformers, ensuring that the service panel is effectively grounded.
2. Main Bonding Jumper vs. System Bonding Jumper: When the transformer is located inside, the system bonding jumper is used. If it is located outside, the main bonding jumper applies.

The supply side bonding jumper, which connects the raceway to the grounded bar, should be sized according to NEC Table 250.102 C1. For instance, in some cases, a #2 AWG copper conductor might be required to ensure an effective ground fault path.

The Impact of Overcurrent Devices on Conductor Sizing

When an overcurrent device, such as a fuse or circuit breaker, is placed ahead of the conductors (typically at the transformer), NEC Table 250.122 comes into play. This table helps in sizing the equipment grounding conductor based on the overcurrent protection device. The correct sizing is necessary to ensure that the conductors remain safe under fault conditions.

Final Thoughts on Proper Sizing of Conductors

Proper sizing of supply side conductors is critical for safety, efficiency, and the long-term operation of electrical systems. By understanding and utilizing the appropriate NEC tables—250.102, 250.66, and 250.122—electricians, contractors, and inspectors can ensure that their systems are designed and implemented correctly. These tables provide essential guidelines for selecting the correct conductor sizes for grounding, bonding, and fault protection.

Key Takeaways:

• NEC Table 250.102 helps size supply side conductors and bonding jumpers.
• Sizing depends on whether the system uses a transformer or a service panel.
• Proper conductor sizing ensures an effective fault path and prevents damage during faults.
• Table 250.66 is used for grounding electrode conductors.
• Table 250.122 is essential when sizing equipment grounding conductors in the presence of overcurrent devices.

By reviewing and applying the proper sizing techniques, electrical professionals can ensure that the systems they design are safe, reliable, and compliant with the latest electrical codes.
