Solar Panel Tilt Angle Calculator – Find the Perfect Angle for Maximum Solar Power
Installing solar panels is a smart investment, but the true power of your system depends on one critical factor—the tilt angle. A correctly positioned solar array can significantly improve efficiency and maximize energy generation throughout the year. That’s where a Solar Panel Tilt Angle Calculator becomes an essential tool for homeowners, engineers, and solar enthusiasts.
Using this calculator, you can find the best tilt angle for your solar panels based on your latitude, location, and seasonal sunlight variation. In simple terms, it helps you figure out how steeply your panels should be angled toward the sun to capture the most sunlight possible.
What Is a Solar Panel Tilt Angle Calculator?
A Solar Panel Tilt Angle Calculator is an online tool that determines the ideal angle for mounting your solar panels. The tilt angle refers to how much your solar panel is inclined relative to the ground.
Since the sun’s position changes with latitude and seasons, adjusting this angle ensures your panels always get optimal sunlight exposure.
Solar Panel Tilt Angle Calculator
Estimate the optimal tilt angle for solar panels based on latitude, mounting type, and seasonal adjustment. Supports fixed and adjustable systems.
For example, if you live in New York (latitude 40°N), your solar panel tilt angle will differ from someone in Los Angeles (latitude 34°N) or Berlin (latitude 52°N). The calculator takes this into account and suggests the perfect setup for your area.
Use our online tool Automatic Transformer Rating Calculator – Find the Right Transformer Capacity for Your Load
Why the Tilt Angle Matters
The efficiency of a solar system depends not just on the quality of panels but also on how directly sunlight hits them. The more perpendicular the sun’s rays are to the surface, the higher the energy conversion rate.
Here’s what happens when you ignore tilt:
- If the angle is too flat, panels underperform in winter.
- If the angle is too steep, they lose performance in summer.
- Improper tilt can lead to up to 15–25% loss in annual energy yield.
That’s why using a Solar Panel Tilt Angle Calculator ensures every panel is optimized for your specific location.
Use our online tool electricity load calculator in kw for home
How the Solar Panel Tilt Angle Calculator Works
The calculator uses a combination of your latitude, season, and sometimes roof orientation (azimuth) to determine the best possible tilt. It applies geometric and astronomical formulas that predict the sun’s altitude throughout the year.

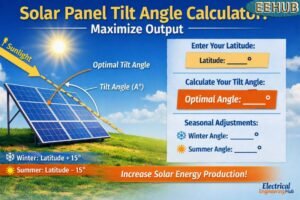

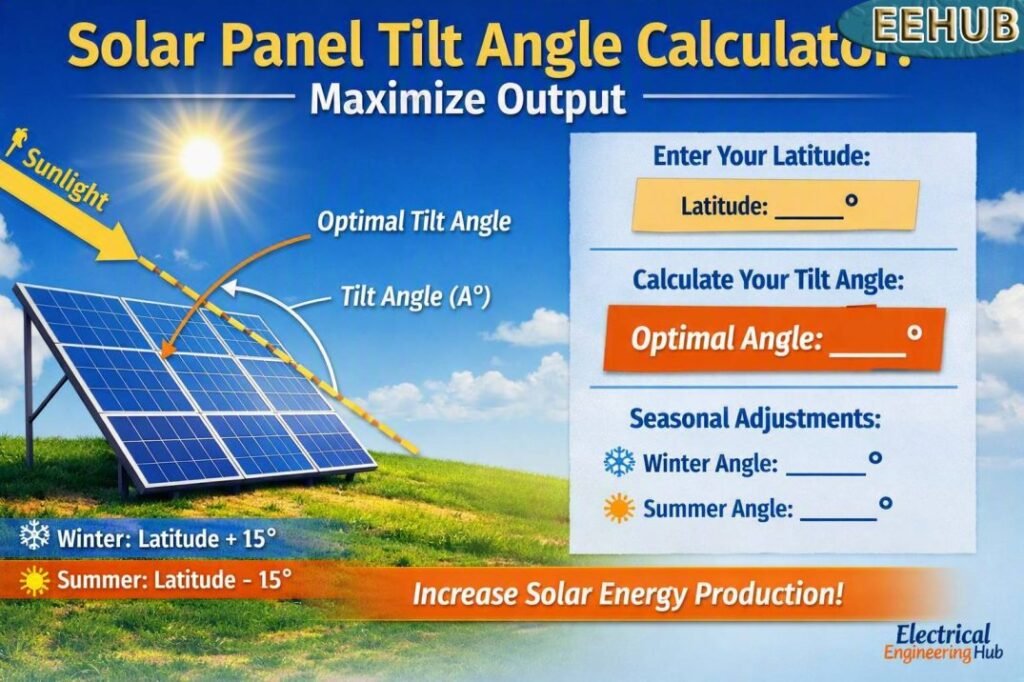

A general rule of thumb is:
| Location Type | Recommended Tilt Angle Formula | Example |
|---|---|---|
| Fixed all year | Equal to your latitude | 35° latitude → 35° tilt |
| Winter optimization | Latitude + 15° | 35° latitude → 50° tilt |
| Summer optimization | Latitude – 15° | 35° latitude → 20° tilt |
So, if you live in Chicago (latitude 42°), you can use the calculator to set angles as:
- Year-round: 42°
- Winter: 57°
- Summer: 27°
This simple adjustment helps balance output between seasons or target specific months based on your energy demand.
Use our online tool Transformer Sizing Chart Calculator – Calculate the Right Transformer Size for Your Load
Benefits of Using a Solar Panel Tilt Angle Calculator
- Higher Power Output: You get the most sunlight exposure every season, improving total system yield.
- Improved ROI: Proper angles mean faster payback since you generate more electricity.
- Adaptability: Works for both fixed and adjustable solar mounting systems.
- Ease of Use: Input your location, select the setup type, and the calculator gives instant results.
- Location Specific: Whether you’re in Texas, Florida, Germany, or the UK, the tool adapts calculations based on geographic coordinates.
Seasonal Tilt Adjustments for Maximum Efficiency
If your solar panels are mounted on adjustable brackets, changing their tilt twice a year can improve efficiency dramatically. Here’s a useful guide:
| Region | Spring/Fall Tilt | Summer Tilt | Winter Tilt |
|---|---|---|---|
| Northern USA (40–50°N) | Latitude | Latitude – 15° | Latitude + 15° |
| Southern USA (25–35°N) | Latitude | Latitude – 10° | Latitude + 10° |
| Central Europe (45–55°N) | Latitude | Latitude – 20° | Latitude + 20° |
So, if you live in Berlin (52°N), your solar tilt angles would approximately be:
- Summer: 32°
- Spring/Fall: 52°
- Winter: 72°
These small changes can improve performance by up to 10% annually compared to fixed panels.
Use our online tool Transformer Inrush Current Calculator – Accurate Tool for Power System Engineers
Fixed vs Adjustable Tilt Angles
| Type | Description | Pros | Cons |
|---|---|---|---|
| Fixed Tilt | Panels remain at one angle year-round. | Low maintenance, simple installation. | Slightly lower efficiency in some seasons. |
| Adjustable Tilt | Angle can be manually adjusted a few times a year. | Higher energy yield, more control. | Requires manual adjustment and monitoring. |
| Tracking System | Panels follow the sun automatically. | Maximum possible efficiency. | High cost, complex maintenance. |
Most homeowners choose fixed or adjustable systems, using the Solar Panel Tilt Angle Calculator to find the best compromise between performance and practicality.
Example: Using the Solar Panel Tilt Angle Calculator
Let’s take a real-world example:
You live in Los Angeles (Latitude: 34°N) and want to install a rooftop solar system. You enter your city or latitude into the calculator and choose your mounting type:
- Fixed Mount: Recommended tilt angle = 34°
- Adjustable Mount:
- Winter Tilt = 49°
- Summer Tilt = 19°
If your energy needs are higher in winter (for heating, for example), you can adjust your panels to 49° for better output during those months.
This simple adjustment based on calculator results can save hundreds of kilowatt-hours per year.
How Latitude Influences Solar Panel Tilt
Latitude is the most important factor in solar panel positioning. The closer you are to the equator, the flatter your panels can be. The farther you move north or south, the steeper they should be.
| Latitude Range | Ideal Year-Round Tilt | Example Cities |
|---|---|---|
| 0–15° | 10–15° | Miami, Cairo |
| 15–30° | 20–30° | Houston, Delhi |
| 30–45° | 30–40° | Los Angeles, Rome |
| 45–60° | 40–50° | Berlin, London |
| 60°+ | 50–60° | Oslo, Helsinki |
Using the Solar Panel Tilt Angle Calculator, you can easily input your latitude and instantly receive the most efficient tilt angle suggestion.
Use our online tool Single Phase Transformer Calculator – Accurate Transformer Sizing & Efficiency Tool
Additional Factors Affecting Solar Tilt
While latitude is the key, a few other elements also affect solar performance:
- Roof Direction (Azimuth): Ideally, panels face true south in the northern hemisphere and true north in the southern hemisphere.
- Shading: Nearby trees or buildings can reduce effective sunlight, so the tilt angle may need adjustment to minimize shadows.
- Panel Type: Some bifacial panels perform better with different tilt angles.
- Snowfall Regions: Steeper angles (above 45°) help snow slide off easily.
A Solar Panel Tilt Angle Calculator often includes these parameters for more accurate results.
Solar Panel Tilt Angle Calculator for USA and Europe
Across the USA, the tilt angle typically ranges between 25° and 45°, depending on whether you’re in southern states like Texas or Arizona, or northern regions like Minnesota or Washington.
In Europe, where latitudes are generally higher, ideal angles range between 35° and 55°. For example:
- Madrid: 40°
- Paris: 48°
- London: 51°
- Stockholm: 59°
These location-specific angles are preloaded in most modern calculators, so you don’t have to manually look up your latitude.
Maximizing Solar Power Output with Correct Tilt
Even a 5° change in tilt can make a noticeable difference in total energy generation. When panels are optimized using a Solar Panel Tilt Angle Calculator, the overall performance improves by 10–20%, depending on your region.
That increase translates into:
- More savings on electricity bills
- Faster system payback
- Higher return on investment
In large commercial or industrial installations, such optimization can lead to thousands of dollars in extra savings every year.
Use our online tool EV Charger Energy Usage Cost Calculator
Final Thoughts
A Solar Panel Tilt Angle Calculator is not just a convenience—it’s a powerful optimization tool. It takes the guesswork out of positioning and ensures your solar investment performs at its peak potential. Whether you live in California, Texas, Germany, or the UK, using the right tilt angle can dramatically improve your energy production.
By simply entering your location and system type, the calculator helps you achieve maximum sunlight capture, better system efficiency, and faster payback.
