Hybrid Solar Inverter Working Principle with Circuit Diagram
In recent years, solar energy has transformed the way homes and businesses power their devices. Among the core components of any solar system is the solar inverter. A hybrid solar inverter plays a critical role by managing power from multiple sources—solar panels, batteries, and the grid.
This article will explore the Hybrid Solar Inverter Working Principle with Circuit Diagram, offering an in-depth technical understanding with a human-friendly approach. Whether you’re a student, professional, or solar enthusiast, this guide will make the working of hybrid inverters clear and digestible.
What is a Hybrid Solar Inverter?
A hybrid solar inverter is an advanced type of inverter that combines the functionalities of a traditional solar inverter and a battery inverter. It can intelligently manage power from solar panels, battery storage, and the utility grid. The core function of this inverter is to convert DC (direct current) from solar panels into AC (alternating current) for household or commercial use while ensuring optimal energy flow and storage.
Unlike standard inverters that only work when the sun is shining, hybrid inverters enable power continuity even during grid outages or at night using stored energy.
Know more about How to Calculate Solar Plant Efficiency in 5 Steps
Why Hybrid Inverters are Essential
Before diving into the Hybrid Solar Inverter Working Principle with Circuit Diagram, it’s important to understand why this technology is so valuable.
Hybrid inverters offer:
- Continuous power availability
- Better control over energy sources
- Higher energy efficiency
- Smart energy monitoring
- Seamless transition between power sources
They support both on-grid and off-grid functionalities, making them ideal for areas with unstable electricity or frequent blackouts.
Hybrid Solar Inverter Working Principle with Circuit Diagram
Basic Principle

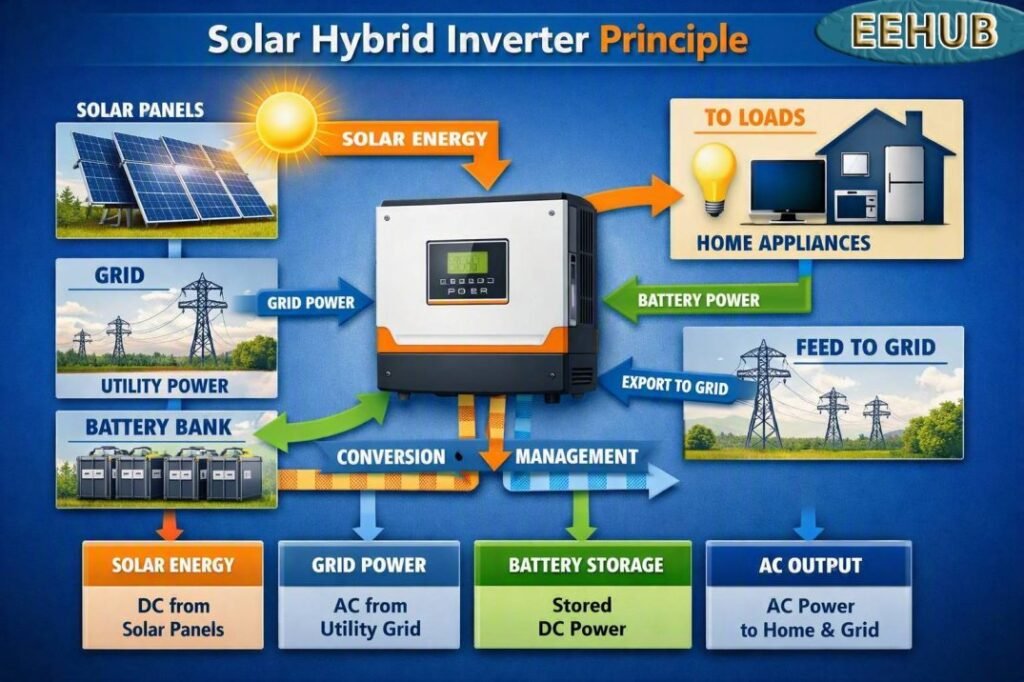

The working principle of a hybrid solar inverter revolves around power conversion and smart energy flow. The inverter:
- Converts solar DC into usable AC power.
- Supplies the load directly from solar if available.
- Charges batteries with excess solar power.
- Draws power from the battery if solar is insufficient.
- Uses the grid as the last option.
Let’s understand each phase of this operation.
Know more about Solar System Sizing Calculator for Agriculture & Tubewells
Step-by-Step Working Process
1. Solar Energy Conversion
Solar panels produce DC power during the daytime. This power is fed into the hybrid inverter, where it is first used to supply the connected load. Any surplus power is directed to charge the battery.
2. Battery Charging
If the load demand is lower than the energy being produced by the solar panels, the hybrid inverter sends the extra DC energy to the battery bank. Battery charging is monitored and controlled to prevent overcharging.
3. Powering the Load
If solar production is not sufficient (e.g., during cloudy hours or at night), the hybrid inverter intelligently checks for stored energy in the battery and uses it to power the load.
4. Grid Support
When both solar and battery energy are inadequate, the inverter seamlessly pulls electricity from the utility grid. It acts as a backup source to ensure continuous power supply.
5. Export to Grid (Optional)
In some systems, excess solar energy can be exported back to the grid. Hybrid inverters can be programmed to support net metering or export limitation based on local regulations.
Know more about Grounding vs Bonding: Key Differences Explained

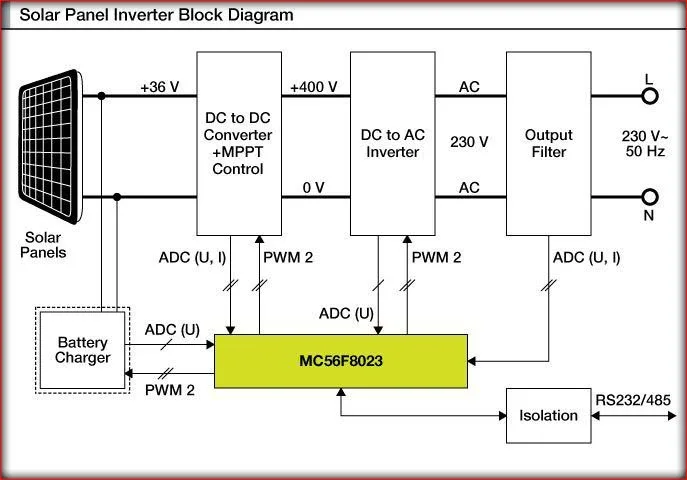

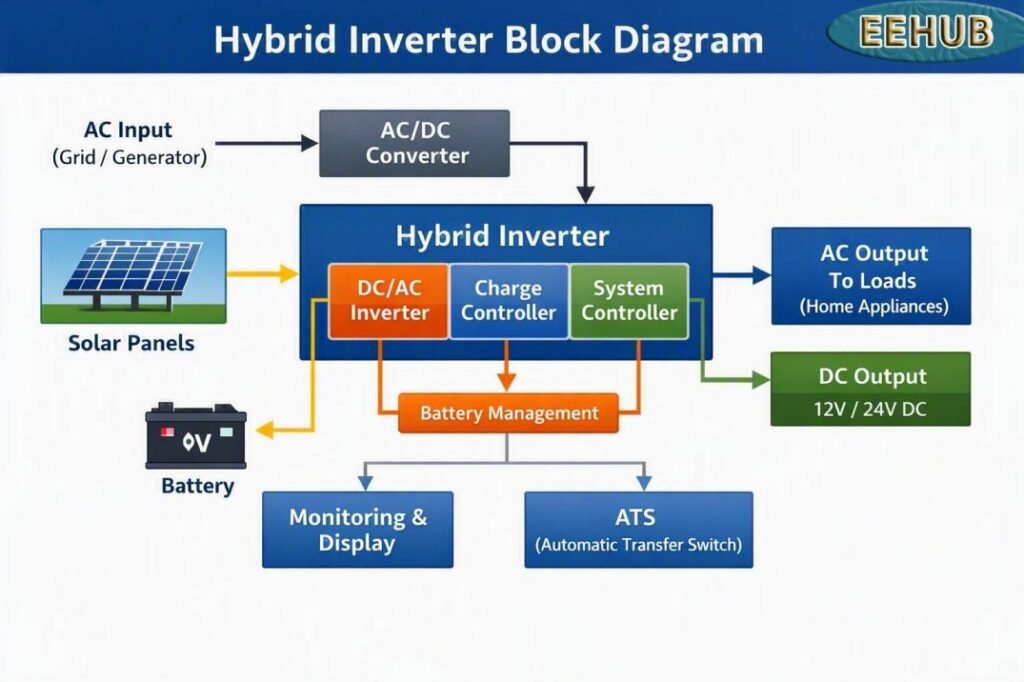

Circuit Diagram Explanation
Legend:
- MPPT (Maximum Power Point Tracking): Ensures the inverter extracts the maximum possible power from solar panels.
- Battery Management System (BMS): Monitors voltage, temperature, and state of charge of the battery.
- DC to AC Inverter: Core converter for supplying usable AC electricity.
- Grid Link: Provides backup when solar or battery is unavailable.
Modes of Operation
The hybrid inverter works in different modes based on energy availability and user preferences. The most common modes are:
| Mode | Energy Source Priority | Use Case Scenario |
|---|---|---|
| Solar Priority Mode | Solar → Battery → Grid | Maximize solar usage |
| Battery Priority | Battery → Solar → Grid | Useful for areas with expensive electricity |
| Grid Priority | Grid → Solar → Battery | Commercial or sensitive power environments |
| Backup Mode | Battery → Grid (if solar not available) | During load shedding or power outages |
These modes ensure that the hybrid inverter operates efficiently in different energy conditions.
Know more about Transformer Cooling Methods
Technical Insights of Hybrid Solar Inverter
To understand the Hybrid Solar Inverter Working Principle with Circuit Diagram at a deeper level, let’s dive into key technical components and functionalities.
1. MPPT Charge Controller
The MPPT (Maximum Power Point Tracking) controller maximizes the energy extracted from the solar panels by adjusting the input voltage and current to find the “sweet spot” of maximum power.
2. DC Bus System
Hybrid inverters have an internal DC bus system that connects the solar input, battery bank, and inverter stage. This makes it easy to share energy among these components without multiple conversions.
3. Inverter Bridge (IGBT/MOSFET Based)
The inverter bridge uses semiconductor switches like IGBTs or MOSFETs to convert DC power into AC. This high-frequency switching ensures that the AC output is pure sine wave and suitable for sensitive electronics.
4. Battery Management System (BMS)
For lithium-ion or advanced battery types, BMS is crucial. It regulates charge/discharge cycles, prevents deep discharge, balances cells, and ensures long battery life.
5. Control Unit / Microcontroller
The intelligent brain of the hybrid inverter is its microcontroller or DSP (Digital Signal Processor). It constantly monitors voltage, current, and power flows and switches between sources accordingly.
Know more about Star Delta Transformer Fault Current Distribution
Advantages of Hybrid Solar Inverters
- Reliable Power Supply: Automatically switches between solar, battery, and grid.
- Energy Independence: Reduces reliance on the grid by maximizing solar and storage use.
- Smart Monitoring: Many models offer Wi-Fi or GSM-based real-time monitoring apps.
- Cost Optimization: Uses solar when available, reducing electricity bills.
- Future-Ready: Compatible with smart grids and battery upgrades.
Hybrid Solar Inverter Applications
Hybrid inverters are used in a variety of scenarios:
- Residential Solar Systems where power reliability is critical
- Rural Electrification Projects with irregular grid access
- Commercial Buildings seeking energy cost reduction
- Telecom Infrastructure where uptime is essential
- Schools and Hospitals that require uninterrupted power
Common FAQs
Q1: Can I use a hybrid inverter without batteries?
Yes, some hybrid inverters can function in a battery-less mode. However, battery integration provides backup and greater energy management.
Q2: How is it different from an off-grid inverter?
A hybrid inverter can connect to the grid and batteries, while an off-grid inverter works only with solar and batteries.
Q3: What type of batteries are compatible?
Lead-acid, lithium-ion (LiFePO4), and sometimes gel batteries are compatible, depending on the model.
Q4: What size inverter do I need?
This depends on your total connected load. A 5kW hybrid inverter is common for residential setups.
Final Thoughts
Understanding the Hybrid Solar Inverter Working Principle with Circuit Diagram is essential if you’re planning a reliable, cost-effective solar energy system. These inverters are a smart investment for homeowners and businesses alike. They offer flexibility, efficiency, and control over your power usage. Whether your goal is energy independence, backup power, or reduced utility bills, hybrid inverters provide the perfect balance between functionality and affordability.
