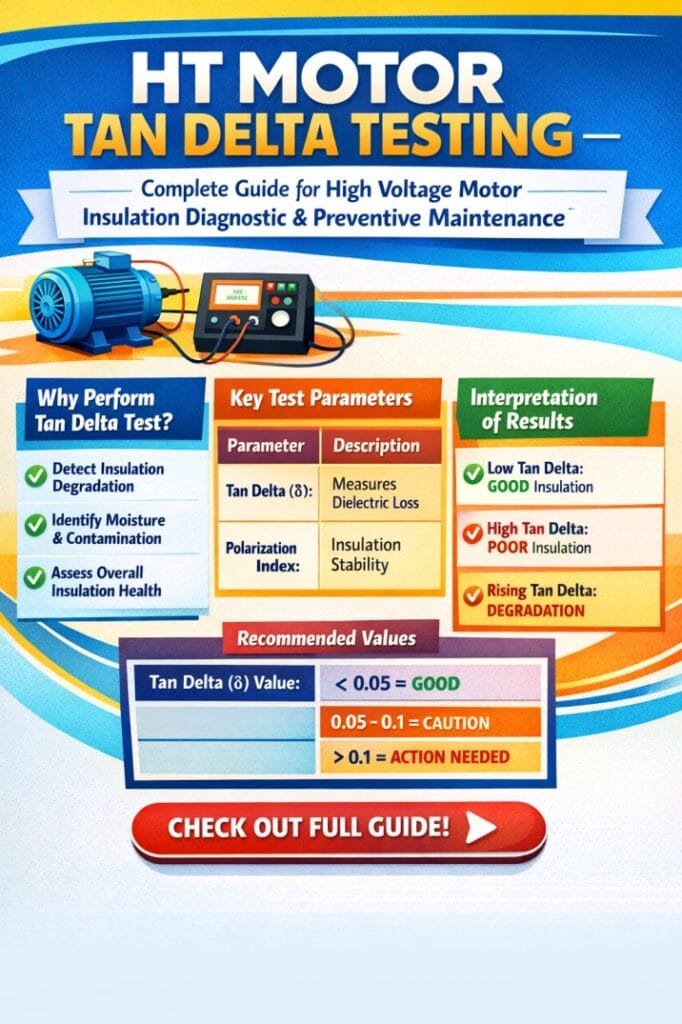

HT Motor Tan Delta Testing: Best Guide for High Voltage Motor Insulation Diagnostic & Preventive Maintenance
High voltage motors are critical assets in industrial plants, power stations, and heavy manufacturing facilities. Their reliability directly affects production continuity and equipment safety. One of the most effective diagnostic techniques used to evaluate insulation condition in such machines is HT motor tan delta testing.
Table of Contents
Over time, motor insulation deteriorates due to electrical stress, thermal aging, moisture, contamination, and mechanical vibration. If this deterioration is not detected early, it can lead to insulation breakdown, unexpected outages, and costly repairs. HT motor tan delta testing provides a reliable method to assess insulation health and identify hidden defects before failure occurs.
Explore details on High Voltage Cable Testing Procedure: Step-by-Step Guide for Safe & Accurate HV Cable Testing
This guide explains the principle, procedure, interpretation, and practical applications of tan delta testing for high voltage motors in preventive maintenance programs.
What is HT Motor Tan Delta Testing
HT motor tan delta testing is a diagnostic method used to measure the dielectric losses in motor insulation when an AC voltage is applied. The test determines the insulation’s ability to resist electrical leakage and maintain its dielectric properties.
In an ideal insulation system, current flowing through insulation should be purely capacitive. However, real insulation contains impurities, moisture, and aging effects that create resistive leakage currents. The ratio of resistive current to capacitive current is called the tan delta (dissipation factor).
A higher tan delta value indicates higher insulation losses and possible deterioration.
Key points about HT motor tan delta testing include:
- It evaluates insulation quality without causing damage.
- It helps detect insulation aging and contamination.
- It is commonly performed during commissioning and periodic maintenance.
- It provides trending data for predictive maintenance programs.
Principle of Tan Delta Testing
The concept of HT motor tan delta testing is based on the phase difference between voltage and current in insulation.
When AC voltage is applied to insulation:
- A capacitive current flows through the insulation.
- A resistive leakage current flows due to insulation imperfections.
Find all about Partial Discharge vs Tan Delta Cable Testing: Important Key Differences Every Engineer Must Know
In perfect insulation, current leads voltage by exactly 90°. In real conditions, the phase angle is slightly less than 90° because of resistive losses.
The tangent of the loss angle (δ) represents insulation losses:
Tan δ = Resistive Current / Capacitive Current
Lower tan delta values indicate healthy insulation, while higher values suggest deterioration or contamination.
Importance of HT Motor Tan Delta Testing
Industrial high voltage motors operate under harsh electrical and environmental conditions. Insulation degradation may remain hidden until catastrophic failure occurs.
HT motor tan delta testing helps maintenance engineers detect insulation weaknesses early and plan corrective actions.
Major benefits include:
- Early detection of insulation aging
- Identification of moisture ingress
- Detection of contamination inside windings
- Reduced risk of sudden motor failure
- Improved reliability of critical equipment
- Better planning of maintenance shutdowns
Many industries include HT motor tan delta testing as part of their condition monitoring strategy.
Explore all about Top 15 High Voltage Testing Services Indiana – Trusted Experts for Reliable Power Systems
Components of Tan Delta Test Setup
A typical HT motor tan delta testing setup includes specialized high voltage test equipment designed to measure dielectric loss accurately.
| Component | Function |
|---|---|
| High Voltage AC Source | Applies controlled AC voltage to the motor insulation |
| Standard Capacitor | Provides reference measurement for comparison |
| Measuring Bridge | Measures phase difference and loss factor |
| Test Cables | Connect equipment to motor terminals |
| Control Unit | Records and displays tan delta values |
Modern digital test systems also provide automatic calculations and graphical results.
Preparation Before Performing the Test
Before conducting HT motor tan delta testing, several precautions must be taken to ensure safety and measurement accuracy.
Important preparation steps include:
- Disconnect motor from power supply
- Isolate all external connections
- Clean terminal boxes and surfaces
- Ensure proper grounding of equipment
- Maintain dry environmental conditions
- Verify calibration of test equipment
Explore all about vlf testing procedure
These precautions help avoid measurement errors and improve reliability of test results.
Standard Test Procedure
The procedure for HT motor tan delta testing follows a structured sequence to obtain accurate insulation diagnostics.
Typical steps include:
- Disconnect the motor from the electrical system.
- Connect the high voltage test equipment to motor windings.
- Ground the motor frame properly.
- Apply test voltage gradually in predefined steps.
- Measure tan delta values at each voltage level.
- Record capacitance and dissipation factor readings.
- Compare results with acceptable standards.
During testing, voltage levels are usually increased progressively to observe how insulation behaves under stress.
Typical Test Voltage Levels
Different voltage levels are applied during HT motor tan delta testing to analyze insulation performance under varying electrical stress.
| Test Stage | Applied Voltage |
|---|---|
| Initial Test | 0.2 × Rated Voltage |
| Intermediate Test | 0.4 × Rated Voltage |
| Standard Test | 0.6 × Rated Voltage |
| Maximum Test | 1.0 × Rated Voltage |
By comparing tan delta values at different voltage levels, engineers can detect insulation nonlinearity and weaknesses.
Find all about High Voltage Cable Testing Standards: Complete Guide for Engineers
Interpretation of Test Results
The success of HT motor tan delta testing depends largely on correct interpretation of measured values.
| Tan Delta Value | Insulation Condition |
|---|---|
| Below 0.5% | Excellent insulation condition |
| 0.5% – 1% | Good condition |
| 1% – 2% | Acceptable but requires monitoring |
| Above 2% | Possible insulation deterioration |
A sudden increase in tan delta value at higher voltages may indicate:
- Moisture contamination
- Insulation voids
- Partial discharge activity
- Surface contamination
Trend analysis is often more important than a single measurement.
Factors Affecting Tan Delta Results
Several external and internal factors influence HT motor tan delta testing results.
Common factors include:
- Temperature variation
- Humidity and moisture
- Surface contamination
- Insulation aging
- Mechanical stress
- Cable connection quality
To ensure reliable results, test conditions should remain consistent during periodic testing.
Know more about VLF Testing vs Hipot: Best Guide on Key Differences and Applications
Comparison with Other Insulation Tests
HT motor tan delta testing is usually performed alongside other insulation diagnostic methods.
| Test Method | Purpose |
|---|---|
| Insulation Resistance Test | Measures insulation resistance |
| Polarization Index Test | Evaluates insulation moisture content |
| Partial Discharge Test | Detects internal insulation defects |
| Tan Delta Test | Measures dielectric losses |
While insulation resistance tests indicate insulation resistance levels, HT motor tan delta testing provides deeper insight into insulation aging and dielectric loss characteristics.
Applications in Preventive Maintenance
Modern industries rely heavily on condition-based maintenance strategies. HT motor tan delta testing plays a major role in predictive diagnostics.
Industries where this test is widely used include:
- Power generation plants
- Oil and gas facilities
- Cement manufacturing
- Steel mills
- Chemical processing plants
- Water treatment plants
In these environments, failure of a high voltage motor can cause massive production losses. Regular HT motor tan delta testing helps avoid such risks.
Best Practices for Reliable Testing
To obtain accurate and consistent results from HT motor tan delta testing, engineers follow several industry best practices.
Recommended practices include:
- Perform electrical testing during scheduled maintenance shutdowns
- Maintain stable environmental conditions
- Use calibrated test equipment
- Compare results with historical data
- Follow international testing standards
- Ensure proper grounding during measurements
Know more about High Voltage Testing Procedures for Electrical Panels: Step by Step
Following these practices ensures that tan delta measurements provide meaningful insights into insulation health.
Conclusion
High voltage motors are among the most valuable assets in industrial power systems. Maintaining their insulation integrity is essential for safe and reliable operation. HT motor tan delta testing offers a powerful diagnostic technique that helps engineers detect insulation deterioration long before it leads to failure.
By measuring dielectric losses and analyzing dissipation factors, maintenance teams can evaluate insulation condition accurately and implement preventive actions. When combined with other insulation tests and trend analysis, HT motor tan delta testing becomes an essential tool for predictive maintenance and asset reliability.
Regular testing, proper interpretation of results, and adherence to testing standards allow industries to extend motor life, minimize downtime, and ensure stable operation of critical electrical equipment.
