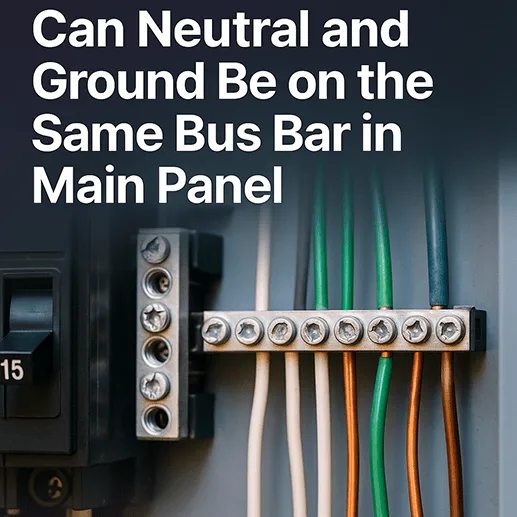

Can Neutral and Ground Be on the Same Bus Bar in Main Panel

Electricity is the lifeblood of modern infrastructure. Behind the walls of every home or facility lies a complex web of electrical connections. Among the most important is the main electrical panel. This is where power enters the building and is distributed across different circuits. A critical part of this system is understanding the connection between the neutral and ground wires. A common question arises — can neutral and ground be on the same bus bar in main panel? This article explores this question in depth, including when it’s allowed, when it’s dangerous, and why it’s so essential to electrical safety.

Understanding the Basics Before We Answer: Can Neutral and Ground Be on the Same Bus Bar in Main Panel

Before diving into regulations and technical setups, let’s start with the basics. The electrical system has three main conductors:

• Hot: Carries live voltage.
• Neutral: Returns the current to complete the circuit.
• Ground: Provides a path for stray current to return safely in case of fault.

These conductors work together to ensure electricity flows smoothly and safely.

So, can neutral and ground be on the same bus bar in main panel? The answer is yes, but only under specific conditions, as we’ll explain further.

What Is a Bus Bar in Electrical Panels?

A bus bar is a metallic strip or bar that conducts electricity within a switchboard, distribution board, or panel board. It acts as a central hub for electrical power distribution.

When someone asks, what is bus bar in electrical, they’re referring to this core conductive component used for distributing power efficiently. It is typically made of copper or aluminum and comes in different shapes like flat strips, solid bars, or hollow tubes.

The types of bus bar include:

These bars connect different parts of the circuit in a compact, efficient, and durable way. The main panel will almost always contain at least one bus bar for neutral and another for grounding.

Can Neutral and Ground Be on the Same Bus Bar in Main Panel Legally?

Yes — only in the main panel.

According to the National Electrical Code (NEC) in the United States, neutral and ground can be bonded together in the main service panel only. That’s because it is the single point where the system is grounded.

This is where the neutral and ground are connected to the same bus bar or a bonding screw is used to connect them through the panel enclosure.

But beyond the main panel — in subpanels — neutral and ground must be separated. This is to prevent return current from flowing on grounding wires, which could pose a shock or fire hazard.

So, when asking can neutral and ground be on the same bus bar in main panel, the rule is:

• Yes for the main panel.
• No for subpanels.

Why Are Neutral and Ground Bonded in the Main Panel?

This bonding creates a low-impedance path to ground for fault current. That means if there’s a short circuit, the current will flow quickly back to the source and trip the breaker.

This is important for the operation of protective devices such as:

• Circuit breakers
• Ground-fault interrupters (GFCIs)

Here’s a simple breakdown of what bonding does:

In other words, bonding neutral and ground in the main panel ensures safety and system stability.

Can Neutral and Ground Be on the Same Bus Bar in Main Panel for Residential Wiring?

In residential homes, especially those with only one panel, it is standard practice to have the neutral and ground on the same bus bar.

This is often the first panel after the utility meter, known as the main service panel.

A residential main panel often includes:

• Line connections from the utility
• A neutral bus bar that is bonded to ground
• A grounding electrode conductor going to earth

So yes, in this case, neutral and ground can be on the same bus bar in main panel, and that’s how it should be done.

What Happens If You Bond Neutral and Ground in a Subpanel?

If someone connects neutral and ground in a subpanel, several dangerous things can happen:

• Shock hazard: Metal cases of appliances may become energized.
• Electrical noise: Can interfere with sensitive equipment.
• Unintended current paths: Ground wires may carry current back to the panel, which is unsafe.

That’s why electrical codes prohibit bonding neutral and ground in subpanels. You must keep them isolated and use separate bus bars in those situations.

Technical Example: Neutral-Ground Bonding in Different Panel Setups

These differences are crucial for both professional electricians and DIY installers.

Bonding and Grounding: The Code References

The NEC has specific articles that guide this topic:

• NEC 250.24(A)(5): Requires bonding of neutral and ground in service panel.
• NEC 250.32(B): Requires separate neutral and ground in subpanels located in separate buildings.
• NEC 250.6: Describes how to avoid objectionable current on grounding paths.

Electricians should always follow these standards to ensure safe installations.

The Role of Electrical Bus Duct in Distribution

While we’ve focused on panels, let’s touch on bus duct installation and its relation to this topic. A bus duct or busway is an enclosed system that distributes power over long distances within buildings or industrial systems.

Many ask, what is a bus duct or bus duct in electrical system?

It is a modern replacement for cable trays and conductors, offering high efficiency and modularity.

Differences Between Cable Bus vs Bus Duct

In these systems, grounding and neutral paths are also carefully engineered. However, unlike a main panel, these systems do not bond neutral and ground unless specifically designed to act as service equipment.

The Importance of Electrical Grounding

When discussing can neutral and ground be on the same bus bar in main panel, we must highlight the importance of grounding in general.

A well-grounded system:

• Protects people from shocks
• Protects equipment from voltage surges
• Prevents fires due to fault currents

The grounding electrode system (rod, pipe, plate) ties into the main panel, where the neutral-ground bond is made. This bond allows fault current to safely return through the earth or the utility neutral.

Real-Life Scenarios and Mistakes

Electricians often face wiring panels in different contexts. Here’s how it plays out:

• New construction: Neutral and ground are bonded in the main panel. Subpanels are wired with 4-wire feeds and separate bars.
• Home remodels: People sometimes forget to separate neutral and ground in new subpanels. This creates a code violation.
• Generator interlocks: If a generator is used, and it has a bonded neutral, the panel must not bond again unless the generator becomes the service point.

These practical examples help reinforce the importance of asking, can neutral and ground be on the same bus bar in main panel, and understanding the specific case you’re working with.

Summary: Always Know Your Panel Type

To sum it up clearly:

• In the main panel, neutral and ground can be on the same bus bar.
• In subpanels, they must be on separate bus bars.
• The bond must occur only at one point in the system — usually the main panel.

Failing to follow this can lead to electrical shocks, fire hazards, and code violations.
