Busway vs Bus Duct: All You Need to Know
When comparing busway vs bus duct, it’s essential to understand both systems in terms of their function, construction, installation, and application. These two systems are used for power distribution in large commercial and industrial facilities. Though often used interchangeably, there are some subtle yet critical differences between them. This article explores these differences with technical clarity, providing insights into how each system operates, and helping you decide which is ideal for your electrical setup.
Understanding Busway vs Bus Duct
The term busway refers to a prefabricated electrical distribution system consisting of an enclosure with bus bars mounted inside. These bus bars carry electrical power through a facility. Similarly, a bus duct also serves the same function—distributing power from one point to another. However, the construction, flexibility, and performance of both differ. The debate of busway vs bus duct often arises in the design and layout of electrical systems.
Construction Comparison in Busway vs Bus Duct
In construction, both systems use electrical bus bar components, but how they are enclosed and assembled varies.
A busway system typically consists of aluminum or copper bus bars enclosed in a steel or aluminum housing. These systems are modular and can be easily configured or extended. Manufacturers often design them with plug-in units that can be customized on-site.
A bus duct, on the other hand, is a more traditional assembly. It includes bus bar electrical conductors within a metal enclosure. Bus ducts are often custom-made and might require more planning before installation. They are generally used in more permanent setups.
Busway vs Bus Duct: Installation Flexibility
When it comes to busway vs bus duct installation, the former is more versatile. A busway allows for quick assembly due to its modular nature. It’s ideal for facilities where electrical loads might change frequently. It supports plug-in outlets, which makes it convenient for expanding or rerouting circuits.
A bus duct installation, in contrast, takes more time and precise planning. Once installed, modifying it becomes difficult and expensive. It’s better suited for applications where the electrical layout remains constant over time.
Electrical Performance in Busway vs Bus Duct
Both systems perform well in high-capacity power distribution. However, there are performance characteristics worth noting.
| Feature | Busway | Bus Duct |
|---|---|---|
| Electrical Efficiency | High | High |
| Heat Dissipation | Excellent | Good |
| Voltage Drop | Minimal in short lengths | Slightly higher over long runs |
| Fault Withstanding Capacity | High | High |
| Lifespan | 25–30 years | 20–25 years |
From the table above, it is evident that while both offer high performance, busways slightly outperform in terms of heat dissipation and modular adaptability.
Safety Features in Busway vs Bus Duct
Safety is crucial in any power distribution system. Busways are often factory-tested and assembled under strict quality control. They come with built-in safety features like ground fault protection, thermal monitoring, and phase barriers.
Bus ducts, though safe, might not always offer advanced safety features out of the box. Additional safety measures need to be added during bus duct installation, which increases cost and labor.
Space Utilization in Busway vs Bus Duct
One of the biggest advantages of busway vs bus duct systems is space optimization. A busway has a compact and lightweight design. It can be suspended overhead or run through tight shafts. This makes it suitable for modern buildings with limited space.
In comparison, a bus duct in electrical system usually requires more room due to its bulkier enclosure. It’s more suited to industrial environments where space is not a primary concern.
Maintenance and Reliability: Busway vs Bus Duct
Maintenance is another area where busway vs bus duct systems differ. A busway system requires less maintenance. Most components are factory-sealed, which reduces the chances of external contamination.
Bus ducts may require regular inspection, especially if installed in dusty or humid environments. The joints, connectors, and insulators in electrical bus duct systems may degrade over time, impacting reliability.
Application Areas for Busway vs Bus Duct
The application largely dictates the choice between the two.
- Busway is ideal for:
- Data centers
- Commercial buildings
- Modular substations
- High-rise construction
- Bus Duct is commonly used in:
- Industrial factories
- Large switchyards
- Power generation plants
It’s important to evaluate both present and future electrical needs when selecting between busway vs bus duct.
Cost Implication in Busway vs Bus Duct
The cost of each system depends on many factors—material, length, amperage, and accessories. Typically, busway systems cost more initially but offer long-term savings due to reduced labor, ease of installation, and lower maintenance.
Bus ducts might seem more affordable at first but can become costly over time, especially when adjustments or expansions are required.
Standards and Certifications
Both systems are governed by standards such as:
- IEEE C37.23 – for metal-enclosed bus
- UL 857 – for busway systems
- IEC 61439-6 – international standard for busbar trunking systems
These ensure safety, quality, and performance for both busway vs bus duct setups.
Future Trends in Busway vs Bus Duct
The future of power distribution is leaning more towards modular, smart systems. Busway technology is evolving with IoT integration, offering real-time monitoring and energy management capabilities. This supports trends in cable bus vs bus duct debates, where users seek more intelligent systems.
Bus duct systems are also improving but at a slower pace. They’re incorporating better insulation, corrosion protection, and thermal management, but still lag behind in modular innovation.
Environmental Impact in Busway vs Bus Duct
Modern facilities are focusing on sustainability. Busways are more eco-friendly due to their lightweight design and lower material consumption. They also reduce copper waste because they can be easily resized and reused.
Bus ducts use more metal in their construction, and being harder to modify or recycle, they contribute more to waste during decommissioning.
Real-World Example
A multinational tech firm recently upgraded its headquarters with a busway system. This allowed them to expand floor-wise without altering the main distribution. The plug-and-play nature helped reduce downtime.
Conversely, a heavy-duty steel manufacturing plant opted for a bus duct in electrical system due to its durability and high ampacity. The rigid structure suited the static nature of their operation.

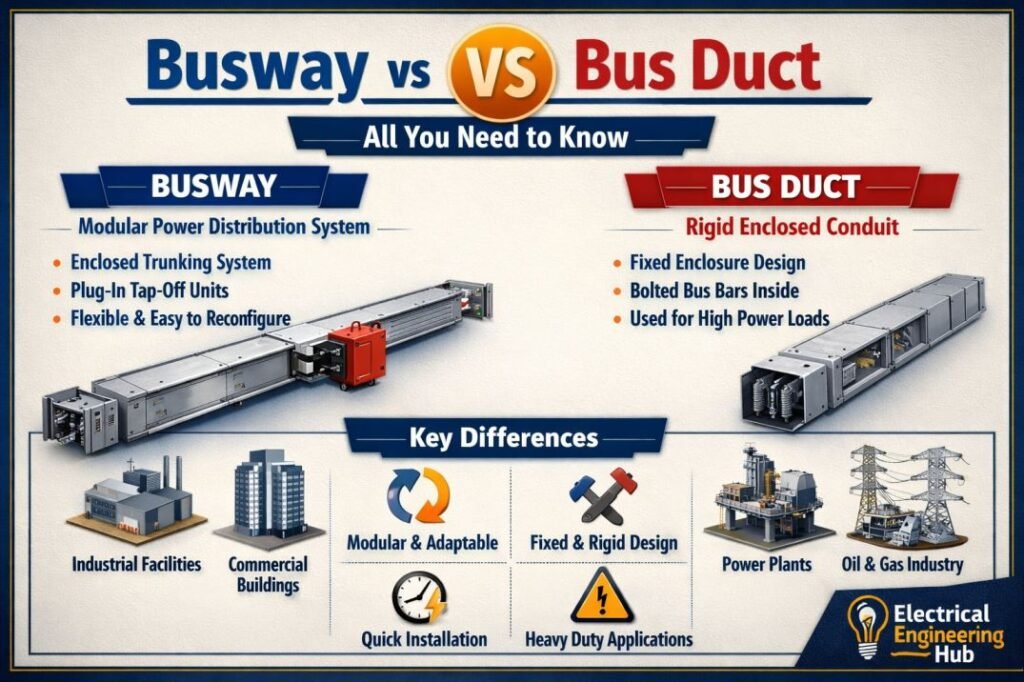

Key Differences Recap: Busway vs Bus Duct
| Criteria | Busway | Bus Duct |
|---|---|---|
| Modularity | High | Low |
| Installation Time | Fast | Slow |
| Maintenance | Low | High |
| Flexibility | High | Low |
| Lifespan | Longer | Shorter |
| Space Requirement | Less | More |
| Cost | Higher upfront, lower lifetime | Lower upfront, higher lifetime |
These differences help make a better-informed decision for engineers and facility managers planning power distribution.
Integration With Other Electrical Systems
Both systems must integrate well with transformers, panel boards, and switchgear. However, busway vs bus duct considerations change when working with renewable energy setups. In solar installations, busways allow better modularity for connecting solar inverters and battery banks. In static plants, what is a bus duct becomes more relevant due to its long-term stability.
Using types of bus bar such as flat, edgewise, and sandwich-type also affects design choice. The what is bus bar in electrical conversation is essential here, as it helps determine conductor type and capacity.
Conclusion on Busway vs Bus Duct
Choosing between busway vs bus duct depends on several factors including cost, application, flexibility, and future needs. Busway is the go-to for modular and modern facilities that need high adaptability. It supports easy changes, lower maintenance, and high efficiency.
Bus ducts, while reliable, are more suited for static, heavy-duty installations where changes are infrequent, and initial cost savings are prioritized.
