NOR Gate Truth Table: A Complete Technical Guide
The NOR gate truth table is one of the foundational concepts in digital electronics. Understanding how a NOR gate behaves with different inputs is essential for engineers, students, and hobbyists. This guide explores the technical details, the logic behind NOR gates, and how to apply them in real circuits. You’ll also learn why this gate plays a vital role in digital system design.
Let’s begin by understanding what a NOR gate is before diving into the NOR gate truth table.
What is a NOR Gate?
A NOR gate is a digital logic gate. It performs the opposite of an OR gate followed by a NOT operation. That means it gives a high output only when all inputs are low. If any input is high, the output becomes low. The logic symbol for a NOR gate looks like an OR gate with a small circle (representing NOT) at the output.
In Boolean algebra, the NOR gate operation is written as:
Y = ¬(A + B)
This means the output Y is the negation of the OR of inputs A and B. The plus sign + denotes the OR operation, and the overline or ¬ indicates NOT.
The NOR gate is a universal gate, meaning you can build any other logic gate using only NOR gates. This property is key to understanding why is the NOR gate useful in designing digital circuits? It allows engineers to simplify hardware by using one type of gate.

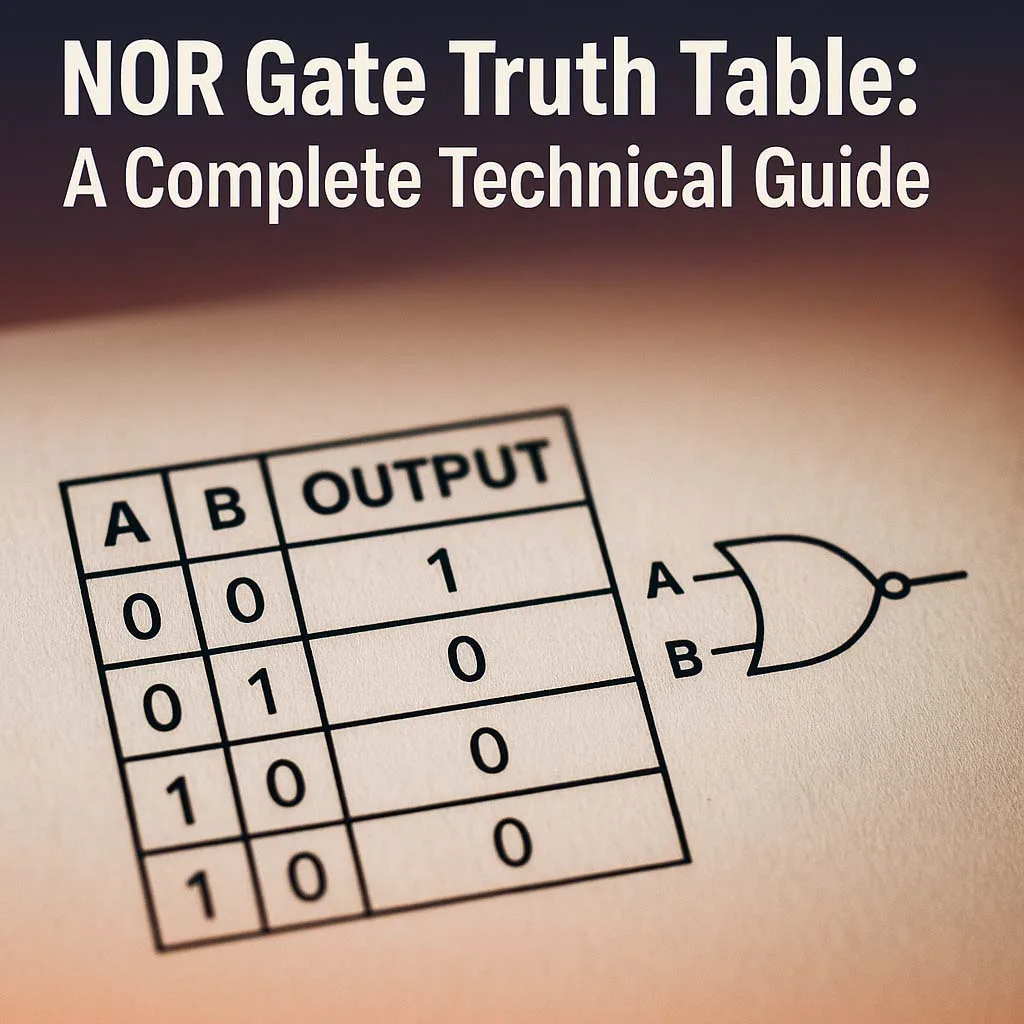

NOR Gate Truth Table: Two Inputs
Let’s explore the NOR gate truth table for a 2-input configuration. This is the simplest version of a NOR gate. Here are the possible combinations of input and their corresponding outputs.
| Input A | Input B | Output Y = ¬(A + B) |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 0 |
The table shows that the output is only high when both inputs are zero. Any other combination makes the output low. This behavior is what defines the NOR logic.
The nor logic gate truth table remains consistent with this pattern, even as you scale to more inputs. Let’s see how that applies to more complex gates.
Expanding the NOR Gate Truth Table to Three Inputs
Now consider a NOR gate with three inputs: A, B, and C. The output remains high only if all inputs are 0. Here’s the NOR gate truth table for this configuration:
| A | B | C | Y = ¬(A + B + C) |
|---|---|---|---|
| 0 | 0 | 0 | 1 |
| 0 | 0 | 1 | 0 |
| 0 | 1 | 0 | 0 |
| 0 | 1 | 1 | 0 |
| 1 | 0 | 0 | 0 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | 0 | 0 |
| 1 | 1 | 1 | 0 |
This table shows how the logic scales. As soon as one input becomes 1, the output drops to 0. This consistency makes it easier to design larger logic systems using NOR gates.
4 Input NOR Gate Truth Table
Let’s take it a step further. A 4 input NOR gate truth table has 16 possible input combinations, because 24=162^4 = 16. Here’s what it looks like:
| A | B | C | D | Y = ¬(A + B + C + D) |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 1 |
| 0 | 0 | 0 | 1 | 0 |
| 0 | 0 | 1 | 0 | 0 |
| 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 0 | 0 | 0 |
| 0 | 1 | 0 | 1 | 0 |
| 0 | 1 | 1 | 0 | 0 |
| 0 | 1 | 1 | 1 | 0 |
| 1 | 0 | 0 | 0 | 0 |
| 1 | 0 | 0 | 1 | 0 |
| 1 | 0 | 1 | 0 | 0 |
| 1 | 0 | 1 | 1 | 0 |
| 1 | 1 | 0 | 0 | 0 |
| 1 | 1 | 0 | 1 | 0 |
| 1 | 1 | 1 | 0 | 0 |
| 1 | 1 | 1 | 1 | 0 |
As you can see, the output is high (1) only when all four inputs are 0. This reflects the core behavior of the NOR logic gate. The 4 input NOR gate truth table provides valuable insights when designing multi-input systems.
NOR Logic Gate Truth Table in Real Circuits
The nor logic gate truth table serves as a foundation when designing digital circuits. Engineers rely on these tables to simulate behavior before building hardware.
For example, you can use NOR gates to implement flip-flops, timers, and memory latches. In fact, an SR latch—a basic building block of memory circuits—can be made using two NOR gates. This design is often introduced in digital logic classes to explain sequential logic.
Why is this important? Because memory and control circuits are at the heart of every computer. That leads to another essential question: why is the NOR gate useful in designing digital circuits?
Why is the NOR Gate Useful in Designing Digital Circuits?
The NOR gate is one of two universal gates (the other being NAND). This means you can build any logic function using only NOR gates. That includes AND, OR, NOT, XOR, and even full adders and subtractors.
This universality simplifies manufacturing. In complex digital systems, reducing the number of gate types reduces cost, size, and power consumption. That’s why is the NOR gate useful in designing digital circuits? It enables efficient, scalable, and compact designs.
Moreover, in space-constrained or power-sensitive environments, engineers often prefer designs based on NOR gates. Systems such as embedded microcontrollers and low-power ASICs benefit from such designs.
NOR Gate Implementation Using Transistors
Understanding the NOR gate truth table is even more insightful when paired with circuit-level knowledge. A NOR gate can be built using transistors—specifically, MOSFETs or BJTs.
In CMOS technology, a NOR gate uses:
- PMOS transistors connected in parallel
- NMOS transistors connected in series
When any input is high, the corresponding NMOS conducts and pulls the output low. Only when all inputs are low do the PMOS transistors conduct, pulling the output high. This physical realization aligns perfectly with the nor logic gate truth table.
NOR Gate Vs. Other Gates
Compared to AND, OR, and NAND gates, the NOR gate is unique. While AND gates require all inputs to be high for the output to be high, NOR requires all inputs to be low.
Here’s a quick conceptual comparison:
| Gate Type | Output High Condition |
|---|---|
| AND | All inputs are 1 |
| OR | Any input is 1 |
| NAND | Not all inputs are 1 |
| NOR | All inputs are 0 |
This contrast shows how each gate fits into the logic landscape. The NOR gate is particularly useful for detecting the absence of high signals. This makes it valuable in alarm systems, resets, and control logic.
Applications of NOR Gate Truth Table
Once you master the NOR gate truth table, you can apply this knowledge to design circuits like:
- Basic logic operations (using universal gate configurations)
- Memory latches (SR Latch)
- Digital clocks and timers
- Signal processing circuits
- Fault detection circuits
Because NOR gates are so versatile, they’re used in both combinational and sequential logic circuits. This dual utility makes them indispensable in both educational labs and industrial designs.
NOR Gate ICs and Practical Usage
Several ICs include NOR gates in packaged form. For example, the 7402 IC contains four independent NOR gates. Engineers use these in lab experiments, prototyping, and even commercial products.
When using such ICs, always refer to the datasheet. It provides the pin configuration, voltage ratings, and timing characteristics. Matching the theoretical NOR gate truth table with actual hardware behavior helps bridge the gap between concept and application.
Final Thoughts on NOR Gate Truth Table
The NOR gate truth table is more than just a reference. It’s a powerful tool for designing and understanding digital logic. Whether you’re a beginner or a professional, mastering this truth table enhances your circuit design skills.
From 2-input to 4 input NOR gate truth table, the core principle stays the same: the output is high only when all inputs are low. This simplicity allows the NOR gate to be both flexible and fundamental.
