Demand Factor for Transformer Sizing

Selecting the right transformer capacity is one of the most critical decisions in any power distribution system. Oversizing increases capital cost and no-load losses, while undersizing leads to overheating, voltage drop, and reduced equipment life. The most practical way to strike the right balance is by applying the demand factor for transformer sizing correctly.

Many engineers confuse connected load with actual operating load. In real installations, not all equipment runs at full capacity at the same time. This is where demand factor becomes essential. When applied properly, demand factor for transformer sizing ensures accurate load calculation and optimal kVA selection without compromising reliability or efficiency.

Understanding Demand Factor in Electrical Systems

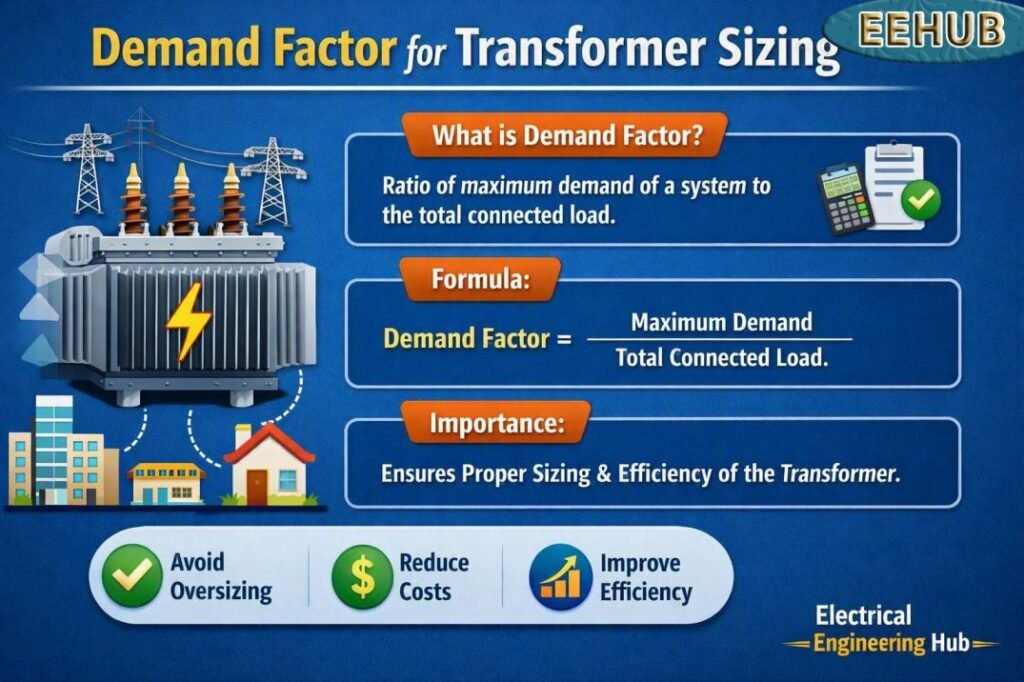

Demand factor is defined as the ratio of maximum demand to total connected load.

Demand Factor = Maximum Demand / Connected Load

Connected load is the sum of rated capacities of all electrical equipment installed. Maximum demand is the highest load observed during a specific period under normal operating conditions.

Since not all loads operate simultaneously, demand factor is always less than 1.

For transformer engineers, demand factor for transformer sizing provides a realistic estimation of actual power requirement. It prevents unnecessary oversizing and helps maintain economical system design.

Why Demand Factor Matters in Transformer Sizing

Transformers are rated in kVA, not kW. Therefore, load estimation must account for:

• Real power (kW)
• Reactive power (kVAR)
• Power factor
• Diversity of loads
• Load growth margin

Using only connected load can inflate transformer rating by 20 to 50 percent. Proper application of demand factor for transformer sizing results in:

• Reduced capital cost
• Lower core losses
• Improved voltage regulation
• Better efficiency at operating load
• Optimized cable and breaker sizing

In industrial, commercial, and residential projects, this approach is considered standard engineering practice.

For a broader understanding of how actual electrical loads are evaluated, see our guide to Demand Factor and Diversity Factor and learn how both factors affect system design.

Step-by-Step Method for Accurate Load Calculation

Accurate transformer selection requires a structured method. Below is a practical approach used in EPC projects and distribution planning.

Step 1: Prepare Connected Load List

Create a detailed load schedule including:

• Motors
• HVAC systems
• Lighting circuits
• Socket outlets
• Process equipment
• Future spare loads

Example table:

Total connected load = 200 kW

Step 2: Apply Demand Factor

Demand factor varies depending on facility type.

Assume industrial plant demand factor = 0.75

Maximum Demand = 200 × 0.75 = 150 kW

This shows how demand factor for transformer sizing significantly reduces design load to realistic operating value.

Step 3: Convert kW to kVA

Transformers are rated in kVA, so power factor must be considered.

kVA = kW / Power Factor

Assume power factor = 0.85

• kVA = 150 / 0.85
• kVA = 176.47 kVA

Step 4: Add Future Expansion Margin

Good engineering practice recommends adding 10 to 25 percent spare capacity.

Assume 20 percent growth margin:

• Required kVA = 176.47 × 1.2 = 211.76 kVA
• Nearest standard transformer size = 250 kVA

This is how demand factor for transformer sizing ensures optimal kVA selection without unnecessary oversizing.

Demand Factor vs Diversity Factor

Engineers often confuse demand factor with diversity factor.

For transformer capacity calculation, demand factor for transformer sizing is the primary tool, while diversity factor is used in multi-feeder systems.

Want to understand the difference between connected load and actual demand? Explore our complete guide on Demand Factor and Diversity Factor for practical calculations and examples.

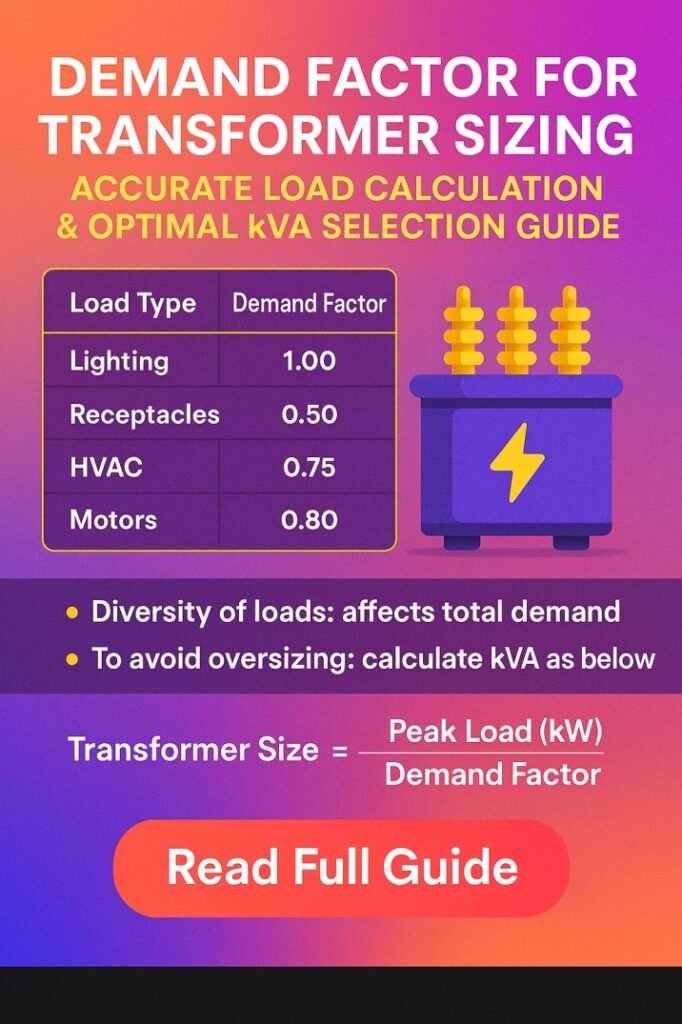

Typical Demand Factors for Common Loads

Accurate values depend on real data or utility guidelines. Below are practical engineering estimates:

When calculating demand factor for transformer sizing, group loads logically rather than applying one single value blindly.

Impact on Transformer Efficiency and Losses

Transformer efficiency depends on loading percentage. Core losses remain constant, while copper losses vary with load current.

If transformer loading is too low due to oversizing:

• Core losses dominate
• Efficiency drops
• Investment cost increases
• Power factor correction becomes less effective

If undersized:

• Overheating occurs
• Insulation life reduces
• Voltage regulation deteriorates
• Protection devices trip frequently

Applying demand factor for transformer sizing keeps transformer loading within 60 to 80 percent of rated capacity during peak demand. This is considered optimal for long-term performance.

Practical Example for Commercial Building

Let us consider a commercial building with:

• Connected load = 350 kW
• Demand factor = 0.7
• Power factor = 0.9

• Maximum Demand = 350 × 0.7 = 245 kW
• Required kVA = 245 / 0.9 = 272 kVA

Adding 15 percent future margin:

272 × 1.15 = 312.8 kVA

Nearest standard rating = 315 kVA or 400 kVA depending on utility availability.

Using demand factor for transformer sizing avoids selecting a 500 kVA transformer unnecessarily.

Role of Load Profile and Smart Meter Data

Modern installations use smart meters and energy analyzers to record:

• Peak demand
• Load curves
• Seasonal variation
• Harmonic distortion
• Reactive power demand

Instead of theoretical assumptions, engineers can now apply real measured maximum demand. This makes demand factor for transformer sizing even more accurate.

For critical facilities such as hospitals or data centers, measured demand data over at least 12 months is recommended before final transformer capacity selection.

Common Mistakes in Transformer Sizing

Avoid these frequent errors:

• Using connected load directly without demand factor
• Ignoring power factor correction
• Not considering starting current of large motors
• Applying unrealistic future expansion margin
• Selecting transformer based only on availability

Correct use of demand factor for transformer sizing eliminates most of these design flaws.

Integration with Power Factor Correction

When capacitor banks are installed, system power factor improves. This reduces kVA demand for same kW load.

For example:

If power factor improves from 0.8 to 0.95:

kVA reduces by nearly 16 percent.

Therefore, transformer sizing should consider final corrected power factor. This ensures economic selection and better voltage stability.

Final Guidelines for Optimal kVA Selection

For professional and reliable results:

1. Prepare detailed connected load schedule
2. Apply realistic demand factor based on load type
3. Convert kW to kVA using expected power factor
4. Add reasonable growth margin
5. Verify transformer loading percentage
6. Cross-check with utility standards

When properly applied, demand factor for transformer sizing provides a balanced solution between cost, efficiency, and reliability.

Before finalizing transformer capacity, it helps to understand load diversity and demand patterns. Read our detailed guide on Demand Factor and Diversity Factor for a clearer picture of electrical load calculations.

Conclusion

Transformer selection is not just about adding all loads and choosing the next larger size. It requires careful evaluation of actual operating conditions. The demand factor for transformer sizing plays a central role in accurate load calculation and optimal kVA selection.

By understanding connected load, maximum demand, power factor, and future expansion requirements, engineers can design efficient and cost-effective power distribution systems. Whether for industrial plants, commercial complexes, or residential developments, applying demand factor for transformer sizing ensures technical accuracy, financial savings, and long-term system stability.
