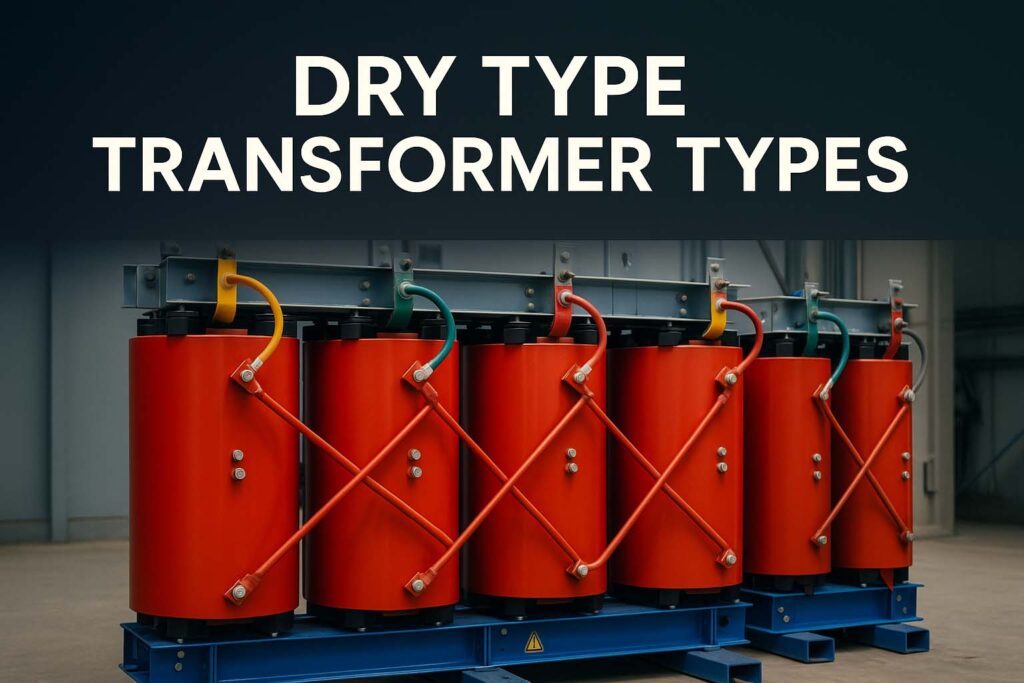

Dry Type Transformer Types

Dry type transformers play a vital role in modern power distribution systems. Unlike oil-filled transformers, these transformers use air or other solid insulation materials for cooling. They are safer, more environmentally friendly, and ideal for indoor installations. In this guide, we will explore different dry type transformer types, understand how they function, and learn where each type is best applied.

Understanding Dry Type Transformers

Dry type transformers do not use any liquid for cooling. Instead, they rely on natural air ventilation or forced air systems. Their design ensures minimal fire risk and reduced environmental hazards. These transformers are typically used in commercial buildings, hospitals, schools, renewable energy systems, and data centers where safety and air quality are critical.

The absence of flammable liquids makes dry type transformers ideal for indoor and high-traffic areas. They are also known for their lower maintenance requirements and longer service life. However, they do have limitations in high-power or outdoor applications where liquid cooling is still more effective.

Common Dry Type Transformer Types

Understanding different dry type transformer types is essential when selecting the right transformer for your application. Here are the major types based on construction, cooling, and insulation technology.

1. Cast Resin Dry Type Transformer (CRDT)

Cast Resin Transformers are among the most common dry type transformer types in the market today. They use epoxy resin to encapsulate the windings.

The resin protects the windings from moisture, dust, and contaminants. This feature makes CRDTs ideal for highly humid or polluted environments.

They are self-extinguishing and safe from fire risks. Cast resin transformers require minimal maintenance and are suitable for indoor as well as semi-outdoor applications.

Know more about IEC Standard for Dry Type Transformer

Technical Features of CRDT:

2. Vacuum Pressure Impregnated (VPI) Transformer

VPI transformers use vacuum pressure to impregnate the windings with polyester or silicone-based varnish. After impregnation, the windings are cured at high temperatures to improve mechanical strength and insulation.

VPI is another highly reliable dry type transformer type, especially for industrial and commercial buildings.

These transformers are moisture-resistant and can operate in moderate environmental conditions. However, they may not be suitable for areas with extreme humidity.

Know more about IEC Standard for Busbar Clearance

Key Specifications of VPI Transformers:

3. Vacuum Pressure Encapsulated (VPE) Transformer

VPE transformers are similar to VPI but offer better protection in harsh environments. In this type, a thicker resin is applied in multiple layers. The resin hardens and encapsulates the windings.

VPE transformers are better suited for dusty, corrosive, or chemically aggressive settings like mining or petrochemical plants.

Their insulation quality is superior, which adds to their durability and resistance to thermal shocks.

VPE Transformer Characteristics:

Know more about Primary Injection Test vs Secondary Injection Test

Cooling Classifications of Dry Type Transformer Types

Dry type transformers are also classified based on their cooling systems. Cooling affects their size, efficiency, and application.

Air Natural (AN)

Air natural cooling allows natural airflow around the transformer core and windings. It is suitable for smaller transformers or applications with lower load cycles.

Air natural transformers are compact, energy-efficient, and typically used in residential or light commercial setups.

Air Forced (AF)

Air forced systems use fans to improve cooling. These are applied in higher capacity dry transformers. AF systems allow better load handling and thermal performance.

They are used in data centers, power distribution units, and energy-intensive industries where cooling efficiency is critical.

Dry Type Transformer Types Based on Insulation Class

Different insulation classes define how much temperature the transformer can handle. Insulation directly influences the reliability and life of the transformer.

Class F Insulation

This insulation can withstand up to 155°C. It is common in CRDTs and VPI transformers and suitable for general commercial use.

Class H Insulation

Withstands up to 180°C, making it suitable for more demanding environments. Used in VPE and heavy-duty cast resin types.

These insulation classes are critical when choosing the right dry type transformer types for high-temperature or load-sensitive applications.

Know more about How to Use Megger BM5200 Insulation Tester 5kV

Applications of Different Dry Type Transformer Types

Each dry transformer type serves a specific purpose based on its build and insulation.

Cast Resin Transformer Applications

• Wind turbine installations
• Solar power plants
• High-rise buildings
• Hospitals and laboratories

CRDTs are perfect where cleanliness and low maintenance are priorities.

VPI Transformer Applications

• Office buildings
• Commercial malls
• Universities and schools
• General manufacturing

VPI is reliable for areas with stable environments and minimal pollution.

Know more about What is Difference Between Megger and Insulation Tester

VPE Transformer Applications

• Chemical factories
• Refineries
• Underground mining
• Offshore rigs

VPEs perform best in dirty, wet, or chemically aggressive areas.

Benefits of Using Dry Type Transformer Types

Dry type transformers bring many advantages over oil-filled ones. Let’s look at why industries are increasingly moving toward dry types.

• Fire Safety: No risk of oil leaks or fire hazards
• Eco-Friendly: No toxic fluid, recyclable components
• Low Maintenance: No need for oil sampling or filtration
• Compact Design: Space-saving and ideal for urban installations
• High Durability: Withstands temperature and environmental variations

These benefits make them highly desirable for public areas and green building projects.

Know more about Protection Schemes for Alternator

Selection Criteria for Dry Type Transformer Types

Choosing the right transformer type depends on several factors.

• Environment: Indoor or outdoor, clean or polluted
• Load Requirement: Continuous or fluctuating load
• Voltage Level: Primary and secondary voltage ratings
• Cooling System: AN or AF, based on load profile
• Insulation Class: Based on thermal performance needed

Understanding these factors can help you choose the most efficient and long-lasting dry type transformer.

Conclusion

When evaluating dry type transformer types, it’s important to match the transformer design with your specific application needs. Cast resin, VPI, and VPE transformers each bring unique advantages. From safety and sustainability to ease of maintenance and installation, dry type transformers are the future of indoor and environmentally sensitive power distribution.

Choosing the right transformer is not just a technical decision but also a long-term investment in safety, performance, and reliability. Always consult with qualified engineers and review technical specifications thoroughly before selecting a transformer for your project.
