Air Conditioning Demand Factor
The term air conditioning demand factor plays a crucial role in building design. It is used in calculating electrical loads. Engineers rely on it for sizing equipment. It also affects power distribution systems.
Understanding this factor helps reduce overdesign. It saves energy. It cuts installation costs. That’s why this factor is part of many building codes and standards.
What Is Air Conditioning Demand Factor?
The air conditioning demand factor is the ratio of the maximum demand to the total connected load. It is usually less than 1. This means not all air conditioning units run at the same time.
This factor shows how much of the installed capacity is likely to be used at peak. It helps electrical engineers size wires, circuit breakers, and transformers correctly.
Let’s look at a simple formula:
Demand Factor = Maximum Demand / Total Connected Load
In air conditioning systems, demand varies by season, time of day, and occupancy. That’s why using this factor gives a more accurate picture of real power needs.
Technical Insight Into Air Conditioning Demand Factor
Air conditioning systems have unique load characteristics. Their usage patterns are often non-continuous. People do not use all AC units at once. This is especially true in homes and offices.
For example, in a residential building with 10 apartments, each apartment may have 2-ton air conditioners. But it is rare that all 20 tons are running at the same time.
A demand factor of 0.6 might be applied. That means the design should be based on 60% of the total connected load.
Here’s a quick table showing this:
| Description | Value |
|---|---|
| Number of AC Units | 10 |
| Unit Capacity | 2 tons (7.0 kW) each |
| Total Connected Load | 70 kW |
| Demand Factor | 0.6 |
| Design Load | 70 × 0.6 = 42 kW |
Using the demand factor, the system is sized for 42 kW, not 70 kW. This avoids unnecessary oversizing.
Why Air Conditioning Demand Factor Matters
Oversizing is expensive. It increases upfront cost. It also wastes energy during low-load conditions. The air conditioning demand factor helps avoid these issues.
In commercial buildings, HVAC systems form a major part of the total electrical load. Demand factor analysis helps optimize the entire building load. That supports energy-efficient designs.
Also, utility companies use demand factors to set transformer ratings. A lower demand factor can lead to smaller, cheaper transformers.
Air Conditioning Demand Factor in Load Calculation
Load calculation is key in electrical design. HVAC loads are considered non-continuous loads. Their real-time demand is often much less than their rated capacity.
Engineers use different demand factors for different building types. Let’s look at typical values:
| Building Type | Air Conditioning Demand Factor |
|---|---|
| Residential | 0.5 – 0.7 |
| Office | 0.6 – 0.75 |
| Hotel | 0.65 – 0.8 |
| Hospital | 0.7 – 0.85 |
| Shopping Mall | 0.8 – 0.9 |
These values depend on climate, insulation, and usage behavior. Hotter climates may have higher values.

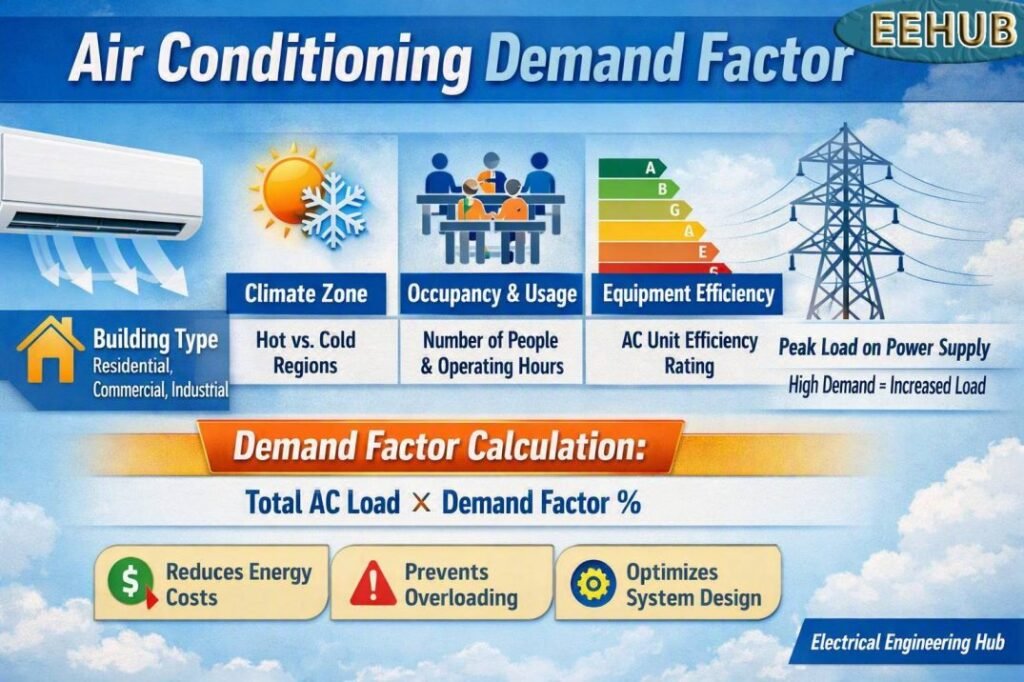

Factors Influencing Air Conditioning Demand Factor
Several elements affect the actual value of the air conditioning demand factor:
- Building Occupancy: Higher occupancy increases cooling needs.
- Climate Conditions: Hot regions demand more cooling.
- Time of Use: Office buildings have peak loads during work hours.
- Diversity of Use: In mixed-use buildings, peak loads may not align.
Smart design includes all these aspects. This helps avoid both overloading and waste.
Role in Electrical Panel and Transformer Sizing
Panel boards must handle the total load at any time. But sizing based only on connected load leads to high costs. The air conditioning demand factor makes the system more economical.
For example, a panel board designed with a demand factor of 0.65 instead of 1.0 is smaller and cheaper. The same applies to transformers. Demand factors reduce their size and cost.
It also affects wiring. Cable sizes can be optimized. This saves both copper and money.
Energy Codes and Air Conditioning Demand Factor
Modern energy codes encourage using demand factors. ASHRAE standards refer to this concept. The National Electrical Code (NEC) in the U.S. also supports it.
These standards help reduce peak demand. That supports better grid stability. It also leads to lower power bills for users.
Air Conditioning Demand Factor in Load Forecasting
In large projects, load forecasting is crucial. The air conditioning demand factor becomes part of the forecast model. It reflects seasonal variations.
Utilities use these forecasts to plan capacity. If demand factors are too high, it results in wasted resources. If too low, it can cause system failure.
So accuracy is key. Historical data, simulation, and software tools help calculate realistic demand factors.
Application in Smart Buildings
Smart buildings use sensors and automation. These systems track real-time usage. They help refine the air conditioning demand factor.
This leads to dynamic demand management. During peak hours, some units can be cycled off. That maintains comfort while reducing load.
Smart systems learn user behavior. Over time, they generate more accurate demand patterns. That helps with planning and energy savings.
Air Conditioning Demand Factor and Energy Efficiency
Energy efficiency starts with design. The air conditioning demand factor promotes better load management. It reduces wasted capacity.
By lowering installed capacity, it cuts down initial investment. It also reduces power losses in distribution. That makes buildings greener.
It also supports renewable integration. Solar panels can be matched with expected AC demand. This improves power balance.
Software Tools to Calculate Demand Factor
Several tools are used in modern design:
- ETAP
- Dialux
- Ecodial
- HAP (Hourly Analysis Program)
These tools simulate building operation. They help determine accurate air conditioning demand factor values. That leads to better load estimates.
They also help simulate climate and occupancy impact. This makes the design more reliable and cost-effective.
Summary of Air Conditioning Demand Factor
Let’s summarize key points:
| Aspect | Details |
|---|---|
| Definition | Ratio of maximum demand to total connected load |
| Typical Range | 0.5 to 0.9 |
| Use | Load estimation, panel sizing, transformer design |
| Benefits | Cost savings, energy efficiency, accurate design |
| Influences | Climate, occupancy, time of use, building type |
Understanding this concept improves design accuracy. It leads to sustainable, optimized systems.
Conclusion
The air conditioning demand factor is a vital tool in modern electrical engineering. It ensures systems are neither overdesigned nor underperforming.
It helps in achieving energy-efficient buildings. It also reduces the carbon footprint. Smart usage of this factor ensures that electrical infrastructure is lean, efficient, and cost-effective.
By including it in planning and design, engineers can meet both technical and economic goals. That’s why every professional should understand and apply this concept.
